Product Description

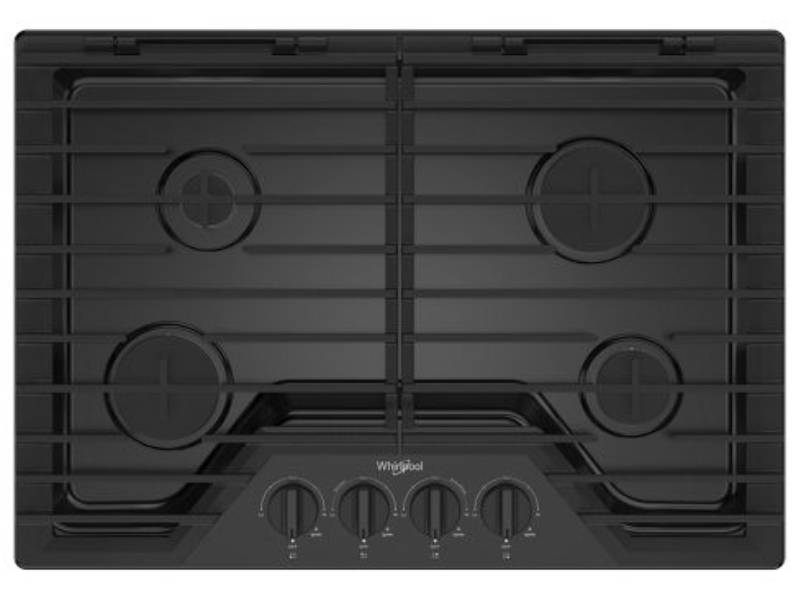

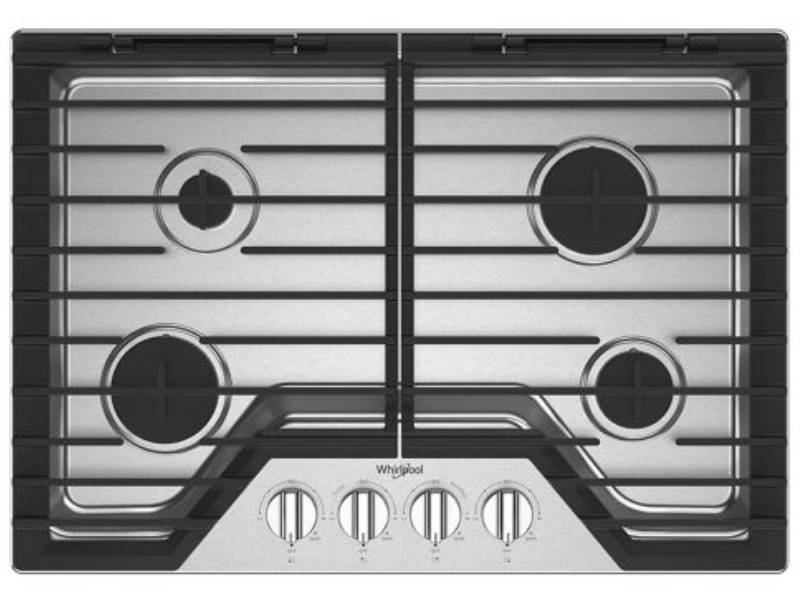

30-inch Gas Cooktop with EZ-2-Lift™ Hinged Cast-Iron Grates
Get dinner on the table fast with greater Cooking Flexibility thanks to various burner sizes and power levels. Use the SpeedHeat™ Burner as a quick boil burner and the 5K BTU Simmer Burner for low, even heat. The 9.1K–12K BTU Multi-Purpose Burners are perfect for daily cooking. Then cleanup is quick and easy with the EZ-2-Lift™ Hinged Cast-Iron Grates.
Features

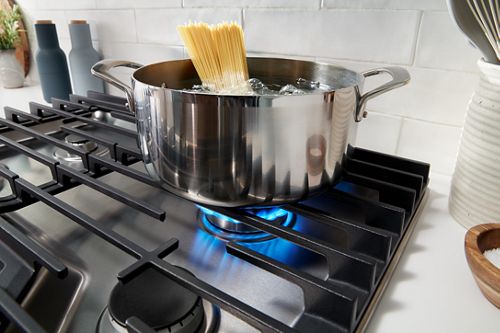

SpeedHeat™ Burner
Get a rapid boil and perfect sear quickly with the SpeedHeat™ Burner, which generates high heat to get dinner to the table fast.

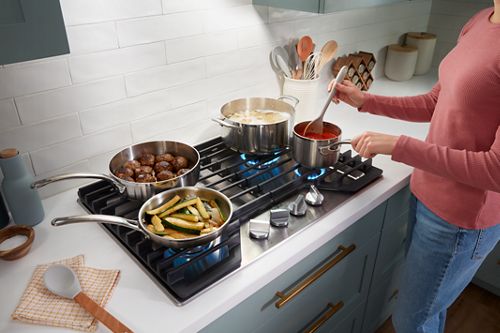

Cooking Flexibility
Navigate busy mealtimes with various burner sizes and a range of power levels, so you can simmer your sauce while you sear your steaks to maximize time in the kitchen.
EZ-2-Lift™ Hinged Cast-Iron Grates
Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.
5K BTU Simmer Burner
Easily maintain low, even heat to simmer your sauces, warm up leftovers or melt chocolate with the 5K BTU Simmer Burner.
Additional Features
9.1K–12K BTU Multi-Purpose Burners
Get a variety of heating power with your multi-purpose burners. The 9.1K BTU burner gives medium heat for daily cooking while the 12K BTU burner gives quick, high heat for searing.
Dishwasher-Safe Cast-Iron Grates
Wash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.
Upswept SpillGuard™ Cooktop
Cleanup is fast and easy with a cooktop that has raised edges to help contain spills.
Edge-to-Edge Cast-Iron Grates
Maximize your space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to move pots and pans anywhere.
Sealed Burners
Cut down on cleanup with burners that are sealed to prevent food from falling into them.
Wall Oven Compatible
Install this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility.*
*See Oven/Cooktop Compatibility in specifications for more information.
ADA Compliant
This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Cooktop Details | |
---|---|
Cooktop Surface Color | Stainless |
Griddle Included | N/A |
Digital Display | No |
Hot Surface Indicator Light | No |
Heating Element On Indicator Light | No |
Ignition Type | Direct Spark Ignition |
Exterior Details | |
Knob Color | Stainless Steel |
Cooktop Details | |
Installs Over Built-In Oven | Yes |
Exterior Details | |
Knob Type | Plastic |
Dimensions | |
Cutout Depth | 50.80 cm, 20 in |
Cutout Depth Max | 50.80 cm, 20 in |
CONTROLS | |

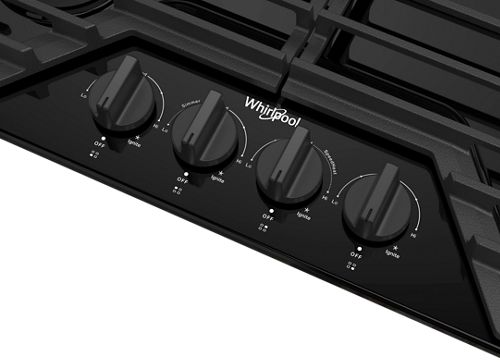

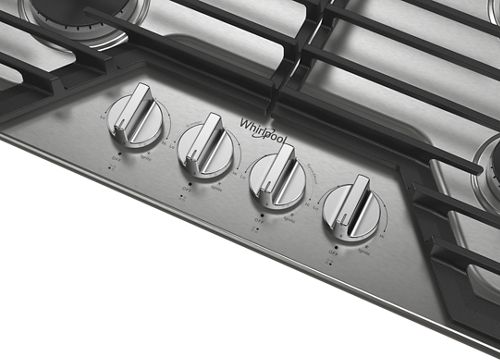

Control Type | Knobs |
Dimensions | |
Net Weight | 25.46 kg, 11.55 kg, 56-7/50 lbs, 25-4603/10000 lbs |
Element/Burner Details | |
Cooktop Element Style | Sealed Burner |
Dimensions | |
Height | 14.13 cm, 5-9/16 in |
Element/Burner Details | |
Automatic Pan Detection | No |
Automatic Pan Size Adjustment | No |
Dimensions | |
Width | 76.20 cm, 30 in |
Element/Burner Details | |
Left Front Element-Burner Power | 12000 BTU |
Left Front Element-Burner Type | Standard |
Left Rear Element-Burner Type | Simmer |
Left Rear Element-Burner Power | 5000 BTU |
Right Front Element-Burner Power | 9100 BTU |
Number of Grates | 2 |
Power Boost | No |
Right Rear Element-Burner Power | 18,000 BTU |
Number of Cooking Element-Burners | 4 |
Right Front Element-Burner Type | Standard |
Right Rear Element-Burner Type | Power |
Dimensions | |
Gross Weight | 27.46 kg, 12.46 kg, 60-27/50 lbs, 27-23/50 lbs |
Depth | 53.34 cm, 21 in |
Cutout Width Max | 75.09 cm, 29-563/1000 in |
Cutout Width | 75.09 cm, 29-563/1000 in |
Ventilation Details | |
Downdraft Vent | No |
Dimensions | |
Cutout Depth Min | 48.26 cm, 19 in |
Ventilation Details | |
Ventilation Type | N/A |
Venting | N/A |
DETAILS | |
Cooktop Configuration | All Burners |
Installs Over Built-In Oven | Yes |
Digital Display | No |
Power Outage Compatible | Yes |
LP Convertible | Yes - Kit Included |
CONTROLS | |
Control Location | Front |
Cooktop Details | |
Combination Match with Oven | WOES3027L, WOES5027L, WOES5030L, WOES5930L, WOES7027P, WOES7030P, WOS31ES0, WOS31ES7, WOS51EC0, WOS51EC0A, WOS51EC7, WOS52EM4, WOS52ES4M, WOS72EC0, WOS72EC7, WOS92EC0, WOS92EC7 |
Certifications | |
UL | Yes |
ADA Compliant | ADA Height and Side Reach Compliant |
Grate Details | |
Grate Details | Cast Iron Grates, Continuous with Hinge, Dishwasher Safe, Matte Finish |
Number of Grates | 2 |
Smart Compatibility | |
Works With | No |
Electrical | |
Power Cord Included | Yes |
