Bosch NGM8049UC

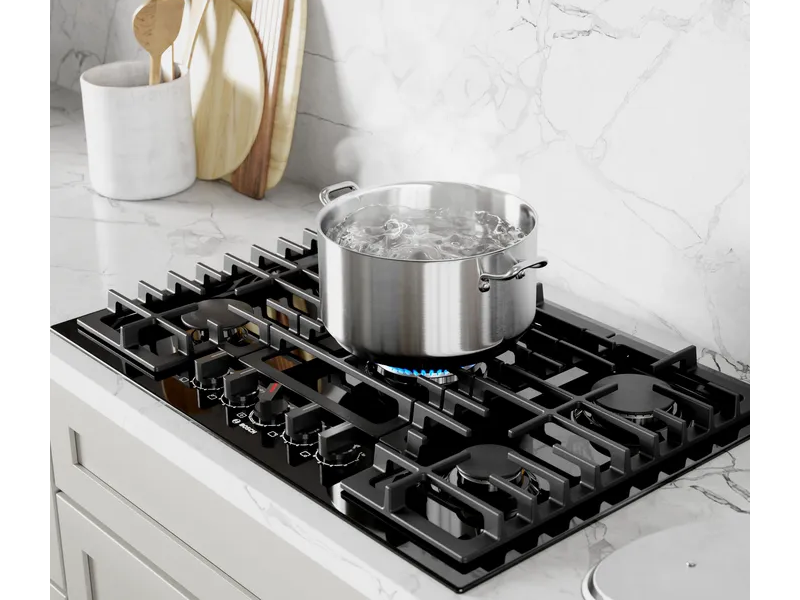

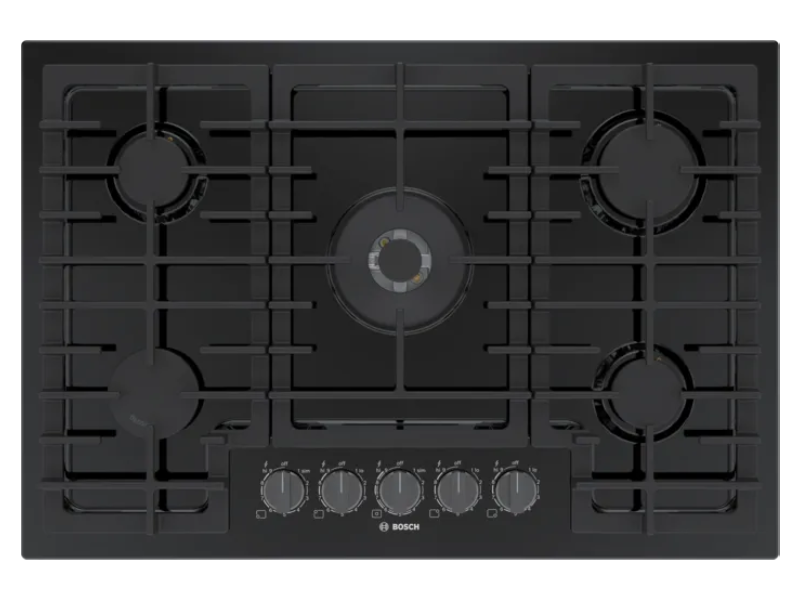

30" Bosch 800 Series 5 Burners Gas Cooktop - NGM8049UC


Authorized Dealer Price Match Guarantee
Price Match Guarantee
Best Brand Appliance offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Toronto:   (416) 901-6383
Vaughan: (905) 264-3137
Oakville/Burlington: (905) 592-0269


Literature

Features & Benefits

  • FlameSelect® offers 9 distinct power levels and delivers precision flame height every time for consistent, repeatable results.

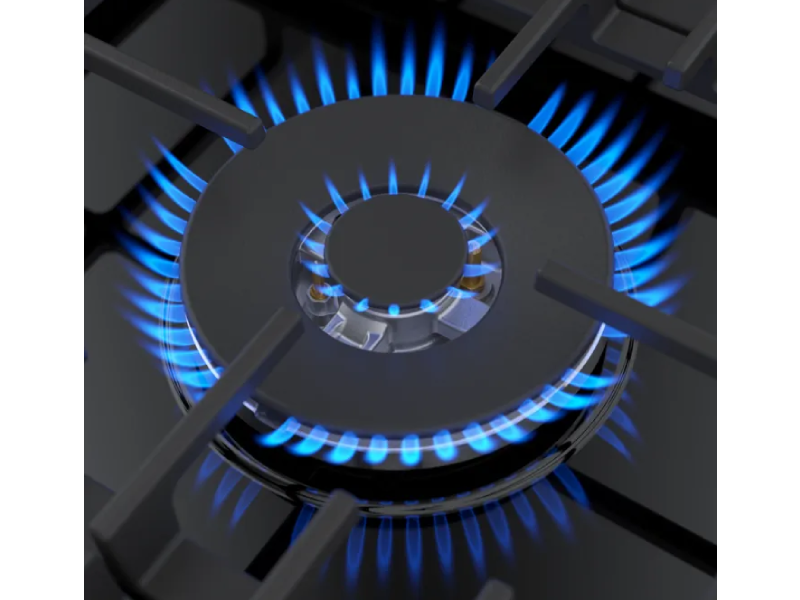

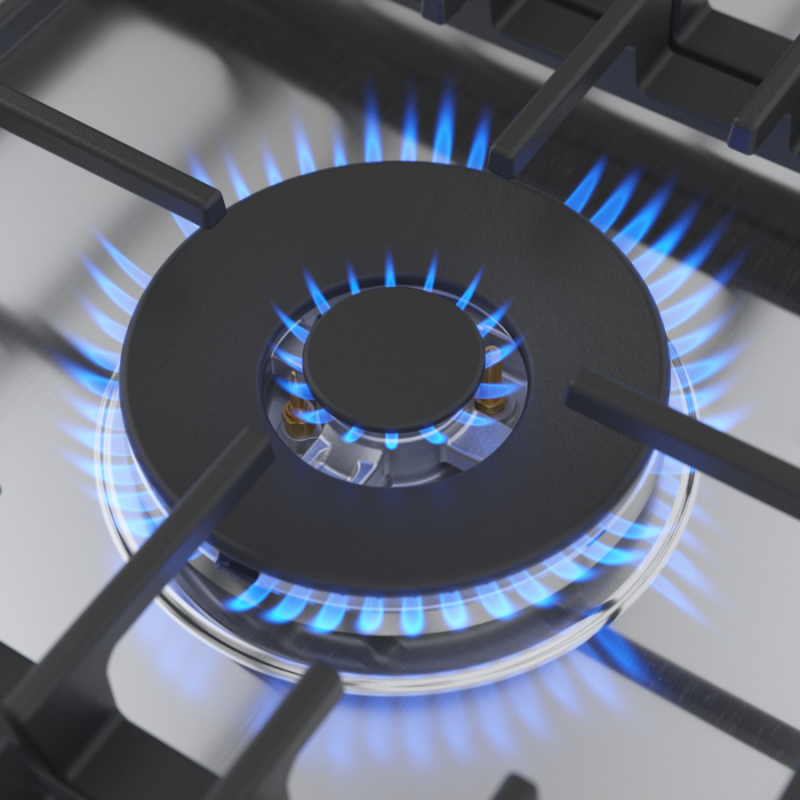

  • Dual-ring power burner has 2 rings for low and high flame settings so you can go from simmer to sear with ease.

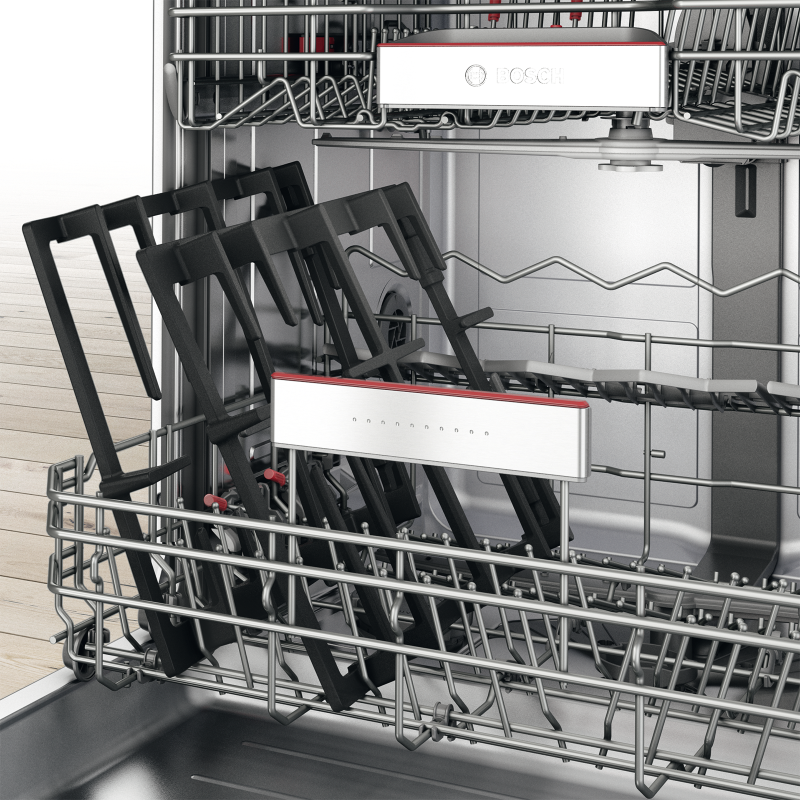

  • Dishwasher safe heavyduty enameled cast iron grates makes cleanup simple and convenient.

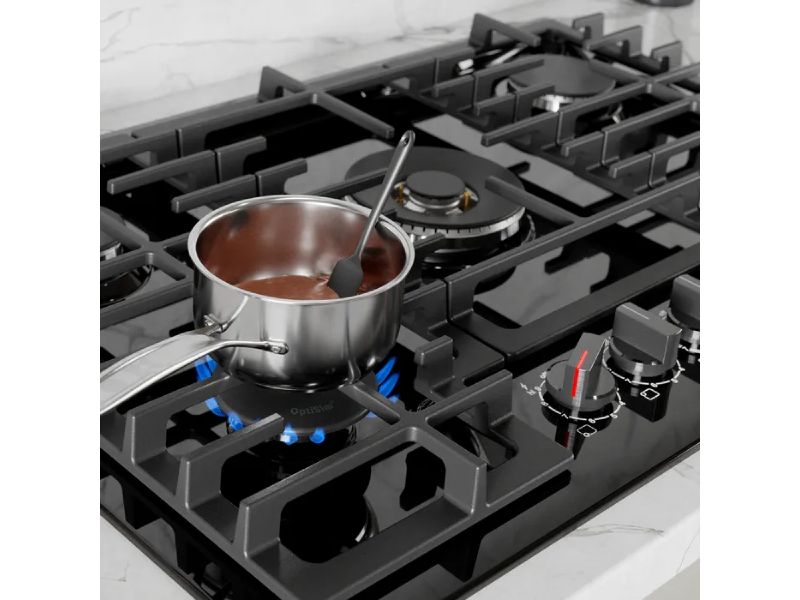

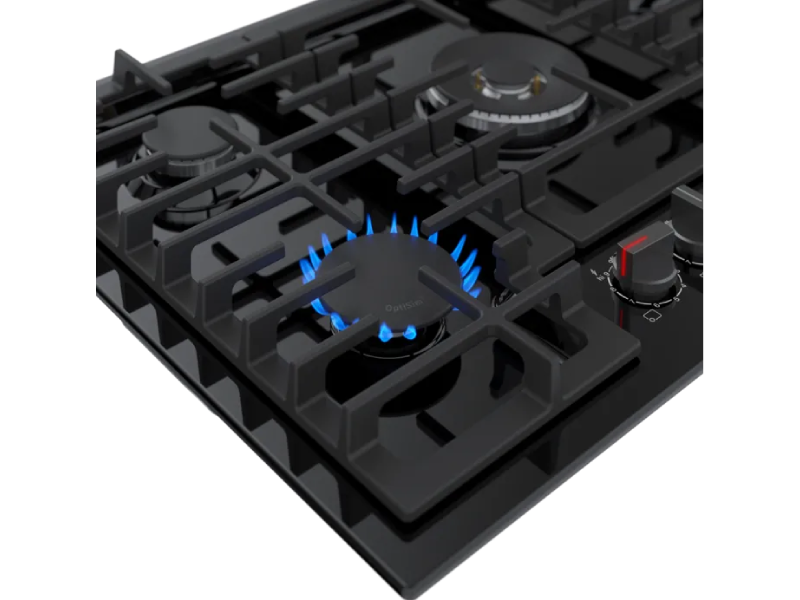

  • OptiSim® burner offers more flame control at the lowest settings for precise simmering and melting.

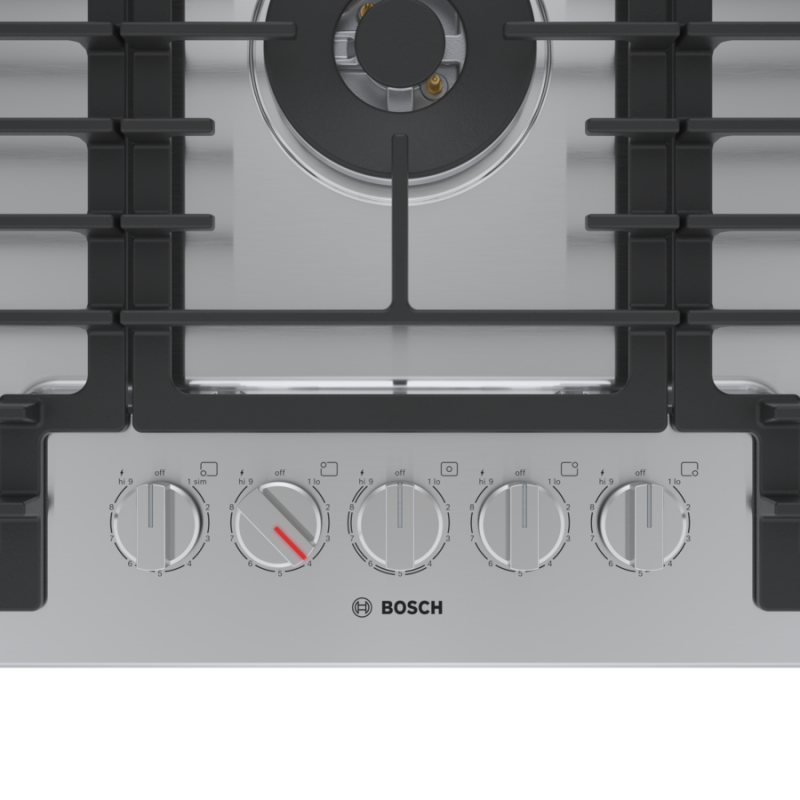

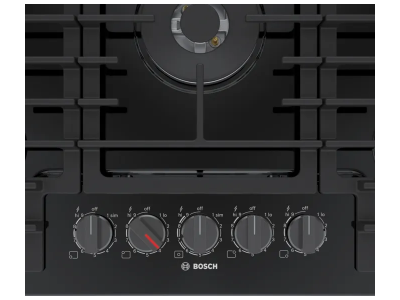

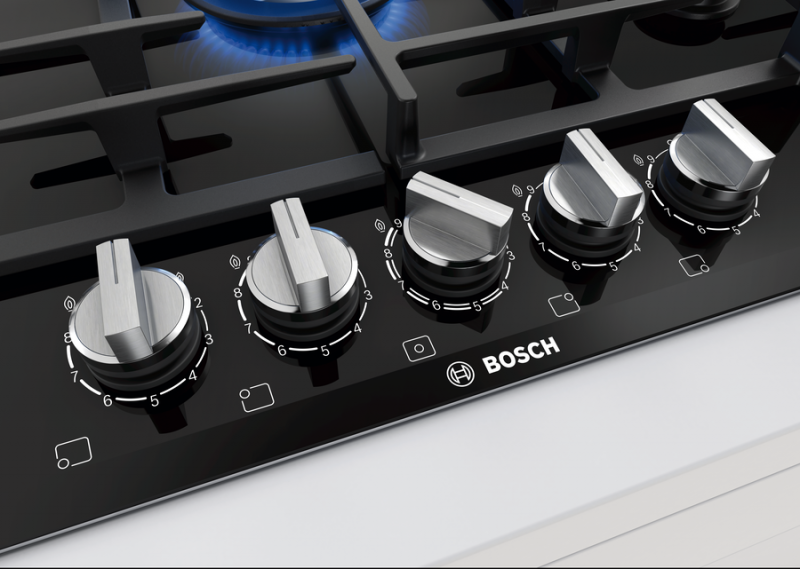

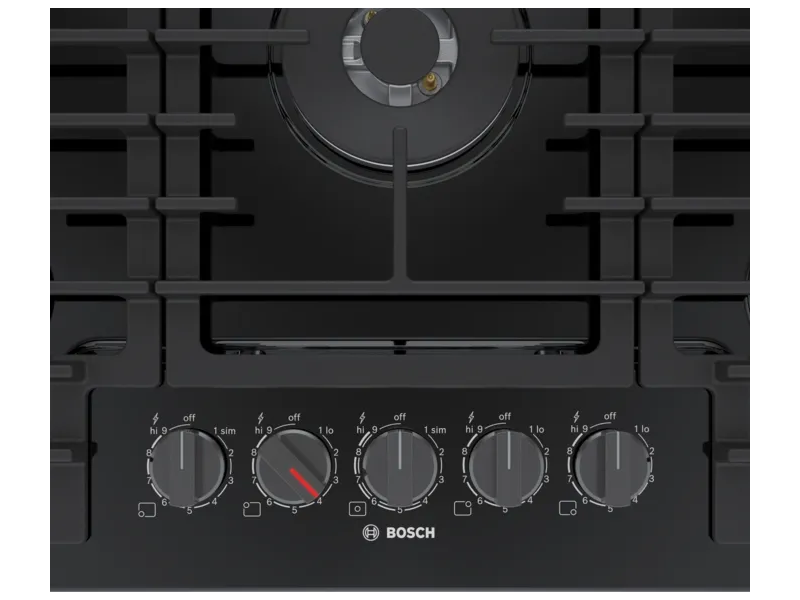

  • Control knob with red LED light line indicates if burner is on and the burner's residual heat.
Dimensions & Weight
Net weight 51 lbs.
Minimum distance from rear wall3"
Minimum distance from counter front1 7/8"
Required cutout size (HxWxD)2" x 28 15/16" x 19 1/8"
Overall appliance dimensions (HxWxD)4 1/2" x 31" x 21 1/4"
TECHNICAL DETAILS
Convertible to LP (kit required)Yes
Energy source Natural Gas (factory set)
Power cord length 40"
General Properties
SurfaceBlack porcelain enamel
Ignition systemElectronic; thermocouple flame monitor control
Valves Five 9-level gas step valves

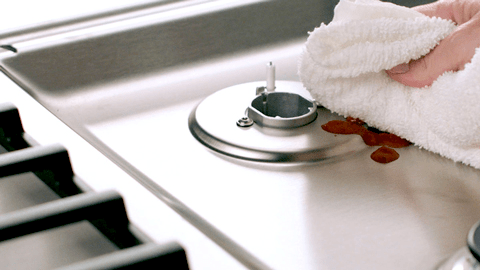

Sealed burners Yes
Control location Front-center
Knob color Black stainless steel appearance
Number of Burner5
TECHNICAL DETAILS
Plug type 3-prong
Frequency 60 Hz
Volts 120 V
Circuit breaker 15 A
Element Performance
Power of front right burner (NG / LP)5,000 / 5,000
Power of back right burner (NG / LP)10,300 / 10,300
Power of center burner (NG / LP)17,000 / 15,700
Power of back left burner (NG / LP)5,000 / 5,000
Power of front left burner (NG / LP)3,400 / 3,400
Total BTU load (NG / LP) 40,700 / 39,400
General Properties

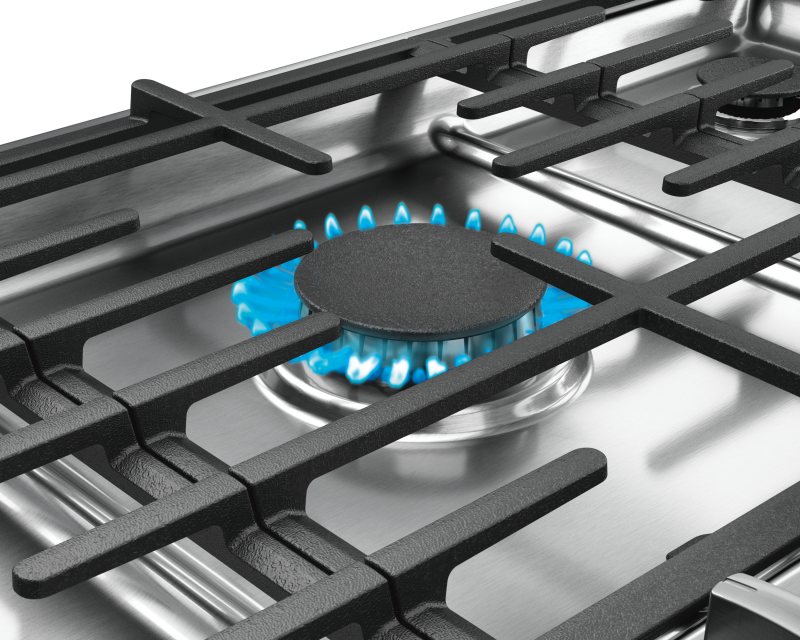

Grate features Continuous grates, dishwasher safe
Grate material Cast iron
Accessories—Included
Included LP Conversion Kit, OptiSim® Cap
