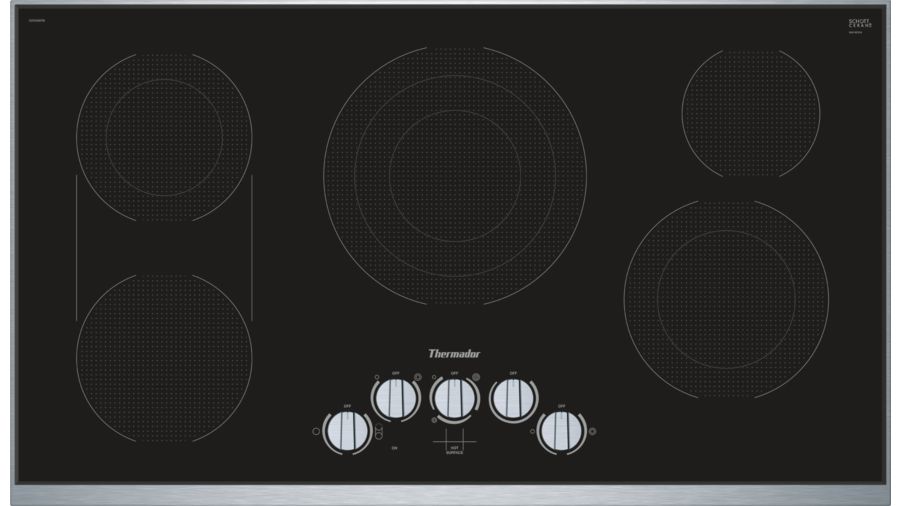

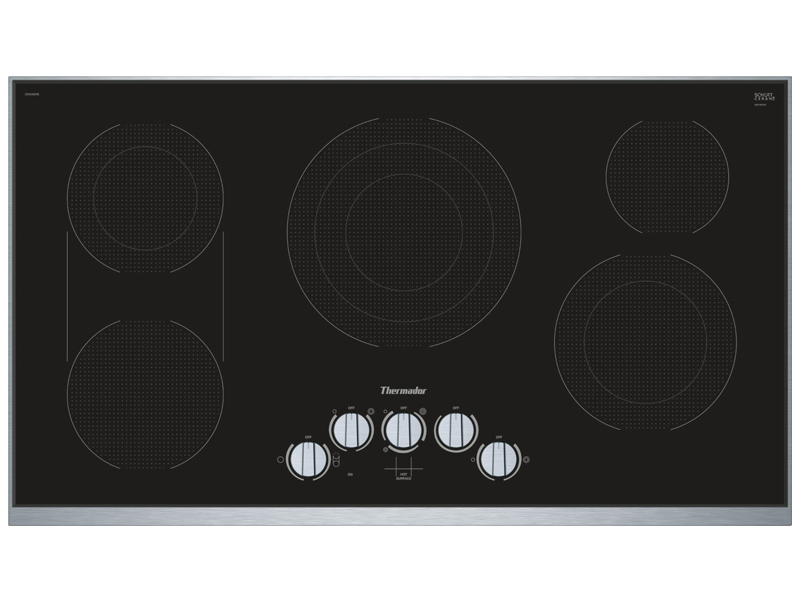

Masterpiece Series electric cooktops offer excellent performance, precise control and a sleek elegant profile
Technical Specifications
| General | |
|---|---|
| Energy source | Electric |

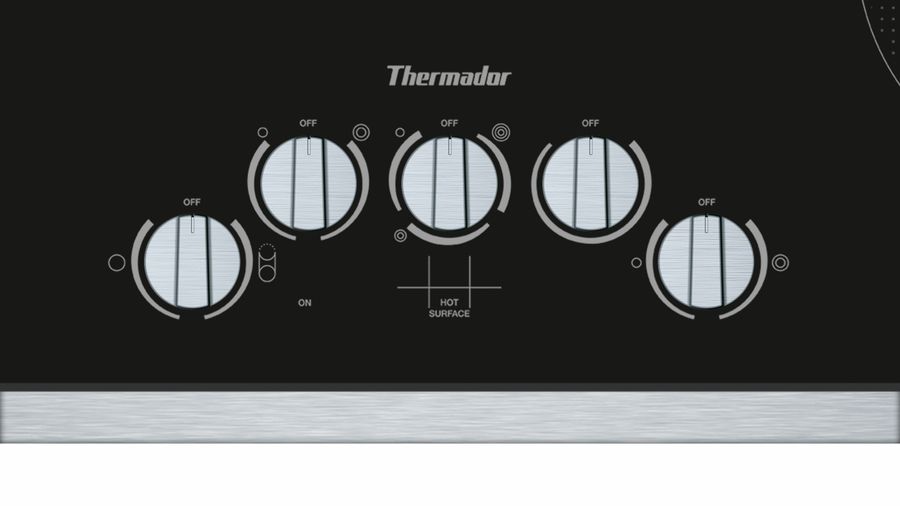

| Type of control | Fixed, front, Push-to-turn, Sword knobs |
| Construction type | |
| Color of frame | Stainless steel |
| Color of surface | Black, Stainless steel |
| Installation type | Built-in |
| Design - line | Convenience frame |
| Number of electric elements | 0 |
| Number of electric cooking zones | 5 |
| Type of frame | Convenience frame |
| Number of gas burners | 0 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 5 |
| Number of electric warming zones | 0 |
| SIZE AND WEIGHT | |
| Overall appliance dimensions (HxWxD) (mm) | 100.5 x 940 x 540 mm |
| Net weight (kg) | 15.497 kg |
| Cooking zone 1 | |
| Dimension of heating element (mm) | 180 mm |
| Location of 1st heating element | front left |
| Power of heating element (W) | 1.7 kW |
| Type of heating element | Radiant heating |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Dimension of 3rd heating element (mm) | 180 ; 120 mm |
| Location of 3rd heating element | back left |
| Power of 3rd heating element (W) | 0.7 ; 1.7 kW |
| Type of 3rd heating element | Radiant heating |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Dimension of 5th heating element (mm) | 140 mm |
| Location of 5th heating element | back right |
| Power of 5th heating element (W) | 1.2 kW |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Dimension of 7th heating element (mm) | 210 ; 140 mm |
| Location of 7th heating element | front right |
| Power of 7th heating element (kW) | 1 ; 2.2 kW |
| Type of 7th heating element | Radiant heating |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Dimension of 9th heating element (mm) | 140 ; 210 ; 270 mm |
| Location of 9th heating element | front centre/cent |
| Power of 9th heating element (kW) | 1.05 ; 2.2 ; 3.08 kW |
| Type of 9th heating element | Radiant heating |
| SAFETY | |
| Power on indicator | Yes |
| Residual heat indicator | Separate |
| Main on/off switch | - |
| Connection | |
| Power cord length (cm) | 96 cm |
| Watts (W) | 10,400 W |
| Energy source | Electric |
| Frequency (Hz) | 60 Hz |
