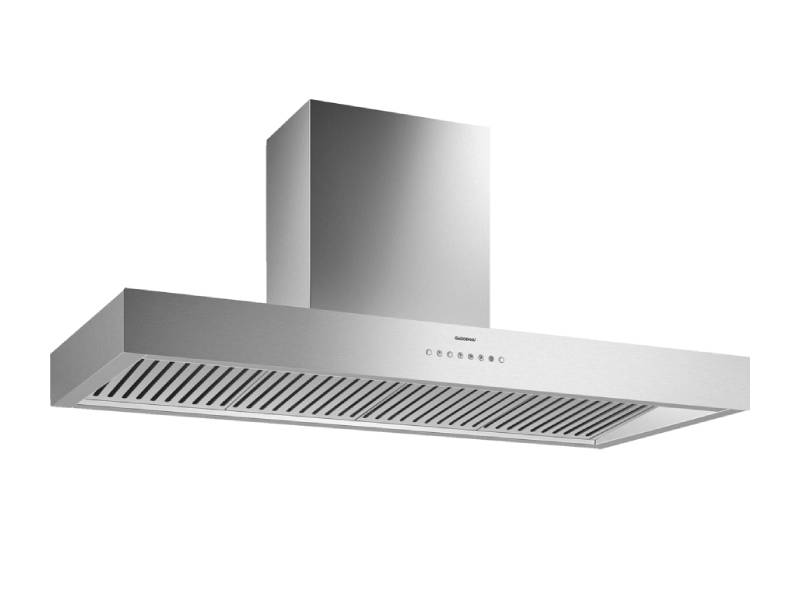

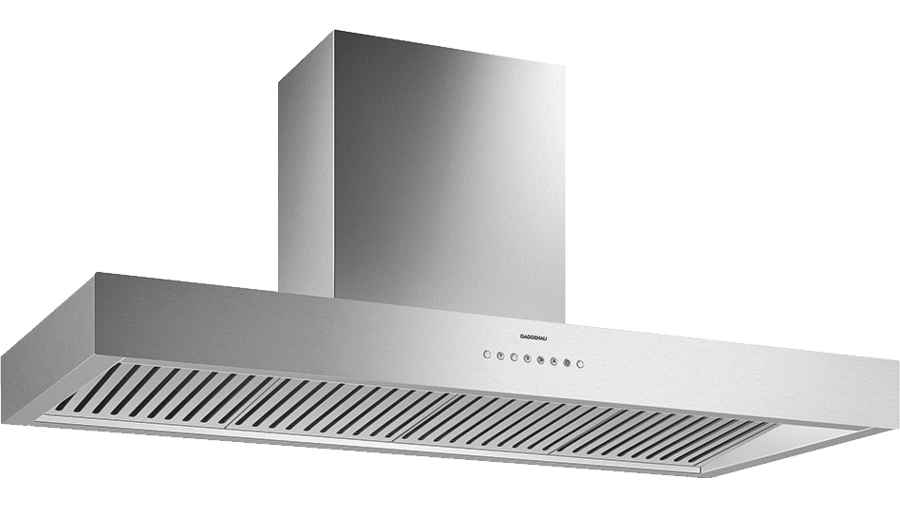

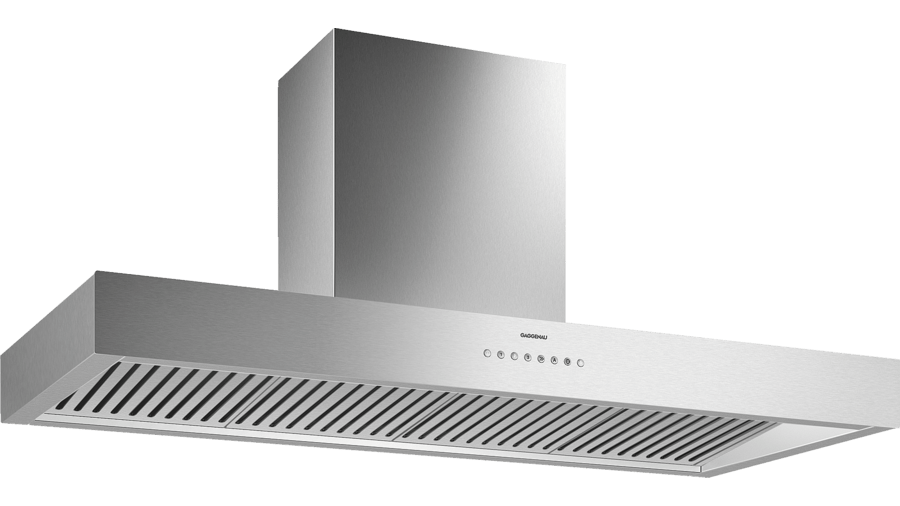

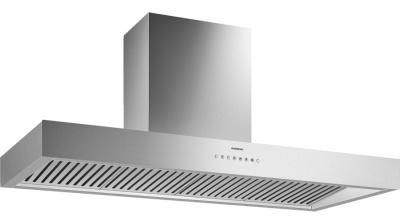

48" Gaggenau 400 Series Wall-Mounted Hood Stainless Steel - AW442720

• Professional technology hood combined with classic Gaggenau design

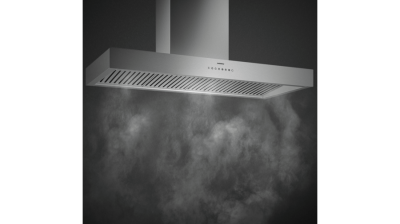

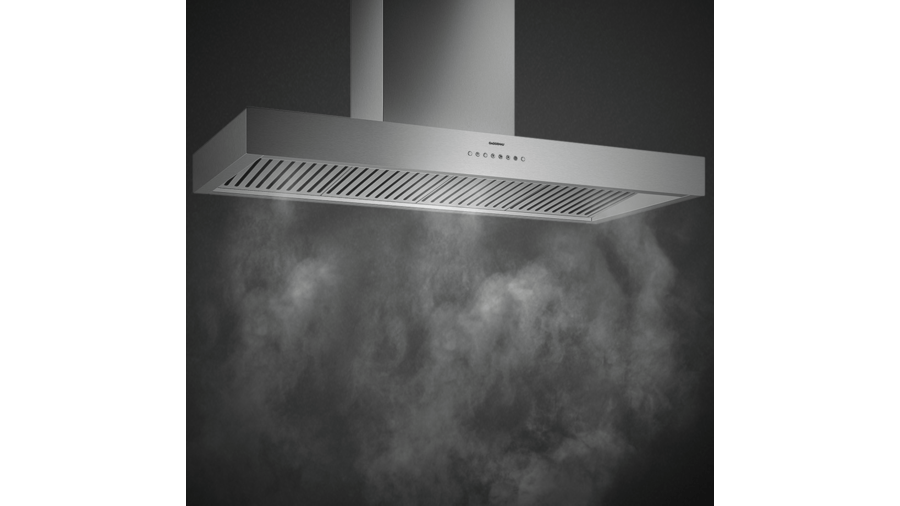

• Highly efficient extraction of cooking vapours due to large vapour collection area
• Motorless, can be combined with Gaggenau BLDC remote fan units

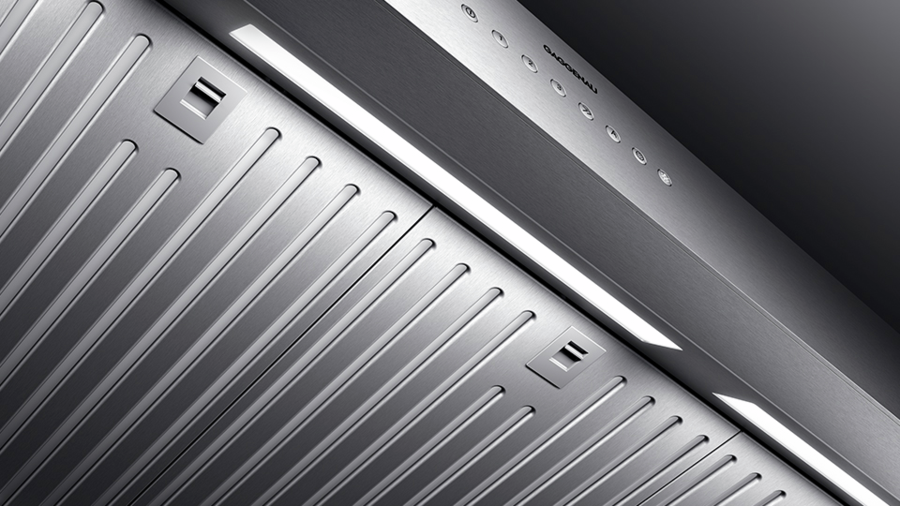

• Angled baffle filter with high grease absorption
• Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours

Additional Information

Output

• Power levels depend on the remote fan unit, see table on page XX.

Features

• 3 electronically controlled power levels and 1 intensive mode.
• Automatic function with sensor-controlled run-on function.
• Grease filter saturation indicator.
• Baffle filter, dishwasher-safe.
• Illuminance 1110 lx.
• Easy mounting system for simple installation and alignment.

Planning notes

• Connection to the respective appliances via network cable.
• Clearance above gas appliances min. 70 cm.
• Clearance above electric appliances min. 60 cm.
• Air recirculation module with 2 activated charcoal filters is installed in the inner chimney. Special air recirculation chimneys are available for this.
• When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.

Connection

• Total connected load 40 W.
• Connecting cable 0.9 m, pluggable.
