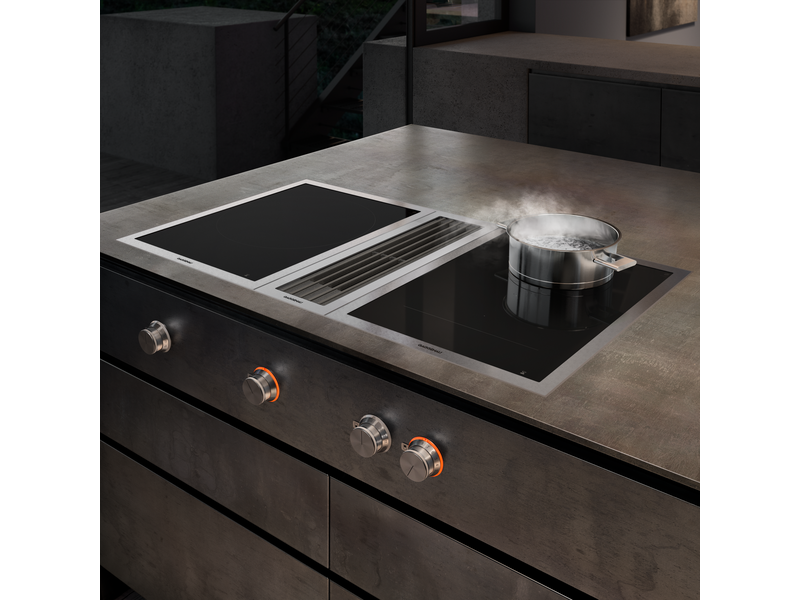

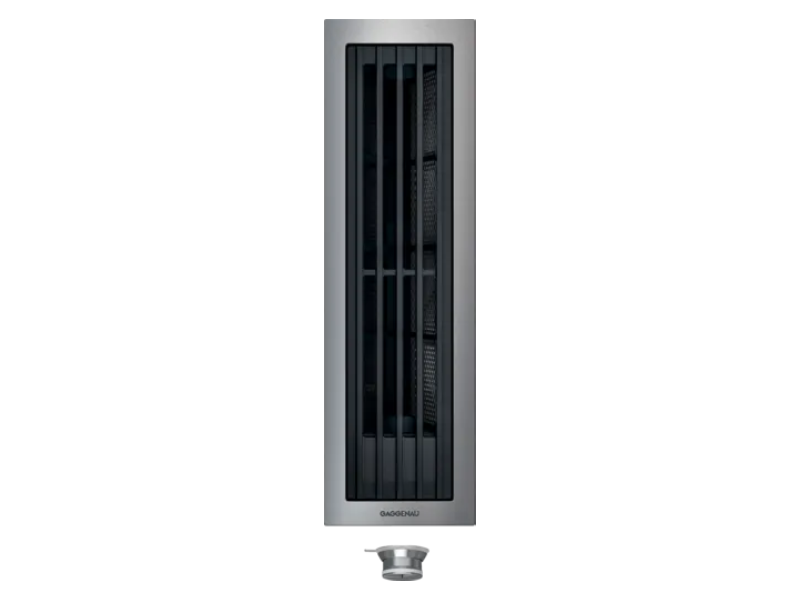

Gaggenau 400 Series Vario Downdraft Ventilation in Stainless Steel - VL414712

Highlights

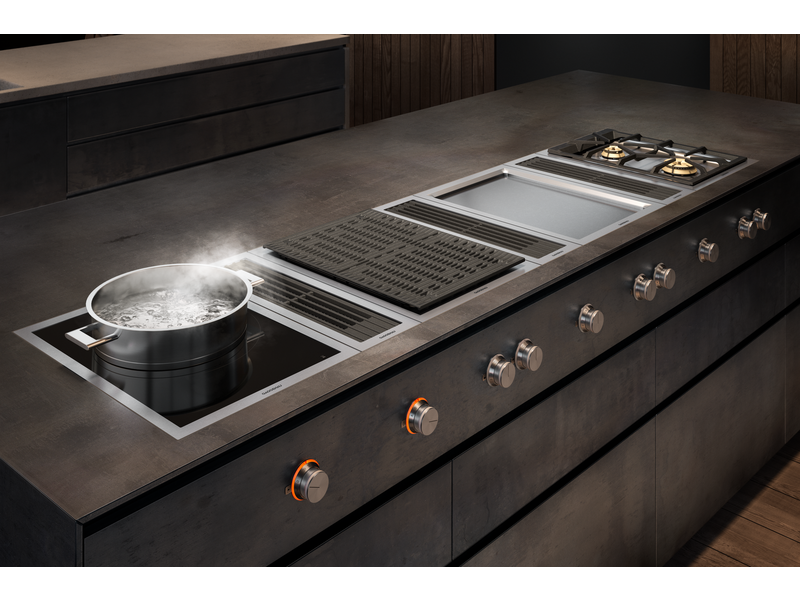

• Can be combined perfectly flush with other Vario appliances of the 400 series
• Precision crafted 3mm stainless steel frame
• Solid stainless steel control knob
• Highly efficient, low noise ventilation system especially with remote fan unit AR 410 110
• Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours

Additional Information

Output

• Noise level depends on the built-in situation.

Features

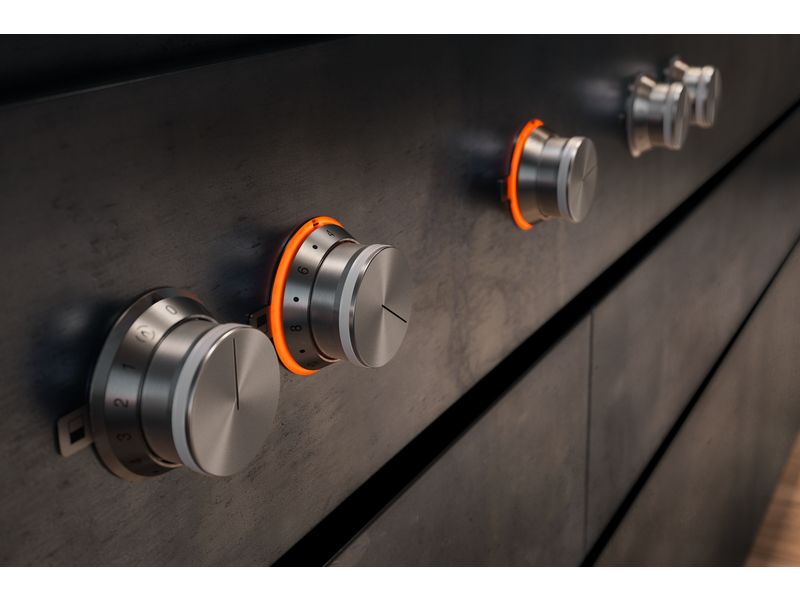

• Control knob with illuminated ring included in delivery.
• 3 electronically controlled power levels and 1 intensive mode.
• Large-scale metal grease filter with high grease absorption.
• Grease filter and activated charcoal filter saturation indicator.
• Airflow-optimised interior for efficient air circulation.
• Interval ventilation, 6 min.
• Enamelled ventilation grille, dishwasher-safe.
• Air exhaust bend included in delivery.
• Overflow 250 ml capacity.
• Cooktop-based ventilation control (with suitable cooktop).
• Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi.
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

Consumption data

• Consumption data is referred to a configuration with the recirculation blower AR 410 710.
• Sound level min. 57 dB / max. 71 dB normal mode.

Planning notes

• For each VL one blower is recommended.
• If operated next to gas appliances, the ventilation moulding AA 414 010 is recommended to ensure maximum performance of the cooktop.
• Appliance can be snapped into the worktop from above.
• Depending on the type of installation (surface-mounted or flush-mounted), the specific location of the cut-out and the knob positions may vary.
• If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
• The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
• Additional instructions for flush mounting:
• Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
• The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
• The joint width may vary due to size tolerances of the combinations and of the worktop cut-out.

Rating

• Connecting cable 1.8 m with plug.
• Plan for an ethernet / LAN cable or connect via WiFi.
