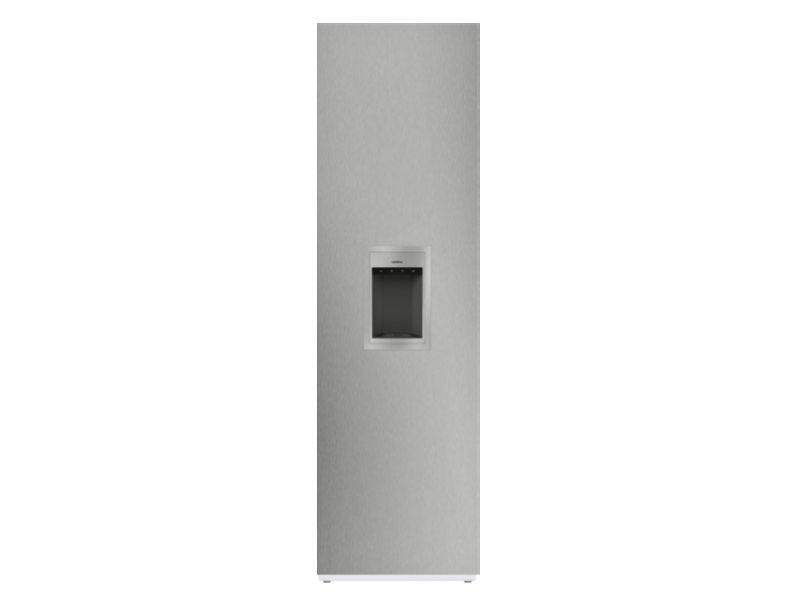

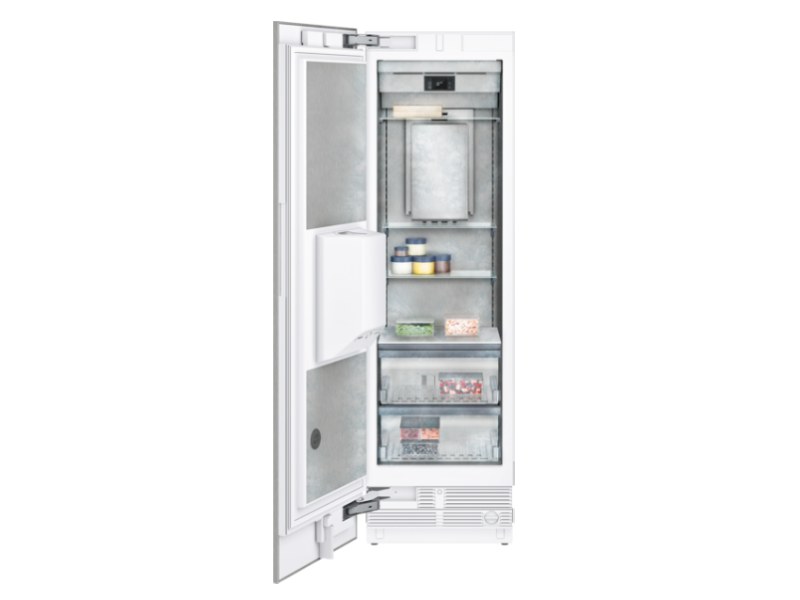

24" Gaggenau 400 Series Vario Built-in Freezer with Soft Close Flat Hinge - RF463707

Highlights

• Stainless steel interior with solid anthracite aluminium elements
• Warm white and glare-free LED light spots
• Opening assist for door with two options:
• 1. Push-to-open function for integration into handleless furniture front 2. Pull-to-open function to facilitate opening the door using a handle
• The drawers in the RC and RF models are positioned at the same height. With side-by-side installation, the glass shelves and door racks can be aligned on the same level

Additional Information

Operation

• TFT touch display operation.
• Clear text display in 44 languages.
• Touch key operation for ice and water dispenser.

Technical Features

• Dynamic cold air distribution with Multi-Flow Air System.
• Automatic defrosting with defrost water evaporation.
• Cushioned door closing system.
• Sabbath mode certified by Star-K.
• When rest mode is active, the appliance can only be opened using a handle.
• Open-door and malfunction warning system.
• Home network integration for digital services (Home Connect) wireless via WiFi.
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

Freezer compartment

• No-frost technology with fast freezing at -30 °C.
• Temperature adjustable from -16 °C to -24 °C.
• 4-star freezer compartment.
• Freezing capacity 8.7 kg/24 h.
• 4 safety glass shelves, white glass, 2 of which are individually height adjustable.
• 2 fully extendable drawers with transparent front.

Ice and water dispenser

• Warm white LED lighting.
• Proximity sensor for automatic activation of light and touch keys for ice and water dispenser.
• Integrated, with fixed inlet water connection.
• Particle filter for water inlet, integrated in ventilation grille area.
• Saturation indicator shown in TFT touch display.
• Ice maker can be switched off independently.
• Ice cube production approx. 1.1 kg/24 h.
• Ice cubes and crushed ice.
• Removable ice storage container with approx. 3.2 kg capacity.
• Chilled water supply approx. 1.3litres.

Consumption data

• Energy consumption 454 kWh/year.
• Noise level 42 dB (re 1 pW).

Planning notes

• Flat hinge.
• Door opening angle of 115°, fixable at 90°.
• Max. door panel weight 67 kg.
• Shut-off valve for water connection must be planned next to the appliance and always be accessible.
• If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set.

Rating

• Total rating 1.079 kWh/24h.
• Total Amps: 10 A.
• Connecting cable 118" (3.0 m), detachable.
• Cold water connection required.Electrical location 6'' above ground in lower left corner of unit.
• Supply hose 1.2 m with 1/4'' male compression fitting (standard icemaker connector).
• Water pressure 2 to 8 bar.
