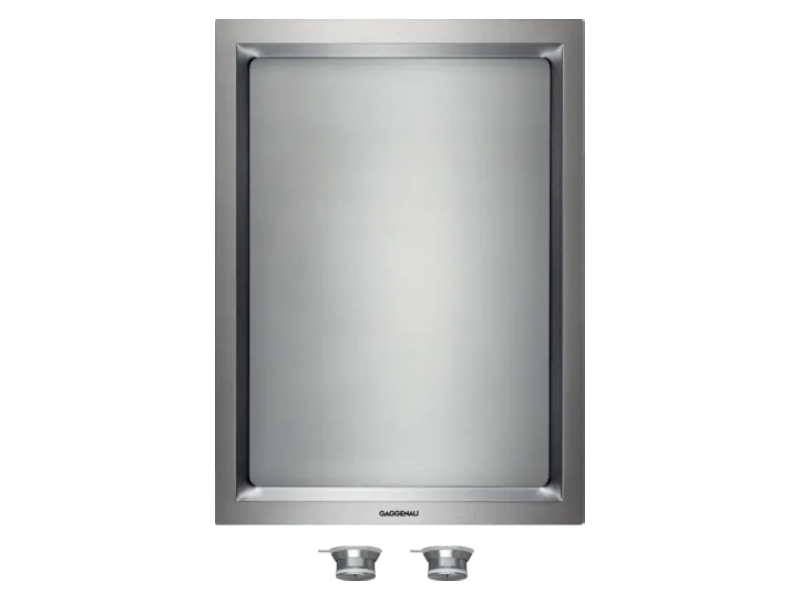

15'' Gaggenau 400 Series Vario Electric Teppan Yaki Style Module Cooktop - VP414611

Highlights

• Hard chrome-plated surface for teppan cooking and use as griddle, grill, searer and warming plate. No pots or pans necessary.
• Exact temperature control up to 480°F, with warming and cleaning settings
• Optimum heat distribution
• Solid stainless steel control knob
• Precision crafted 3mm stainless steel frame

Additional Information

• Product name / series name Vario/Domino Teppan Yaki
• Variant color Stainless steel
• Grill basin material Stainless steel
• Included accessories 2 x spatula

• Type of control Cylindrical controls, illuminated, intgrated in furniture front, Push-to-turn
• Keep warm function Yes
• Main on/off switch No

• Dimensions 118 x 380 x 520 mm
• Minimum height for installation 118 mm
• Maximum height for installation 118 mm
• Minimum width for installation 359 mm
• Maximum width for installation 361 mm
• Depth for installation 491 mm
• Net weight 12.3 kg

• Safety device Safety time-switch-off
• Power on indicator Yes

• Watts 3,000 W
• Fuse protection 15 A
• Volts 208-240 V
• Plug type no plug
• Power cord length 150.0 cm

Cooking zones

• Usable area W 31 x D 44 cm.

Operation

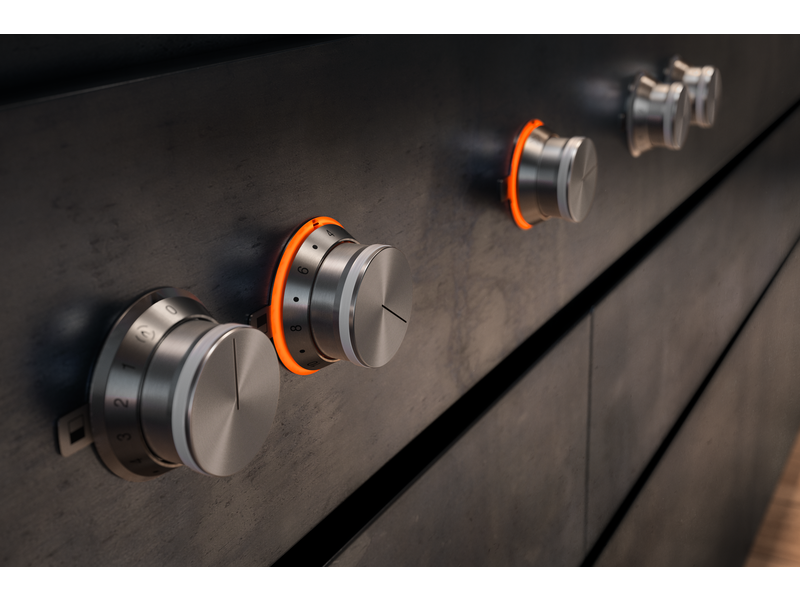

• Two control knobs with illuminated ring, cooking zone and temperature markings.
• Electronic temperature control from 120 °C to 240 °C.

Features

• Two zones, each 1500 W, can be operated together as a complete surface or each halve separately.
• Keeping warm setting.
• Cleaning stage.
• Simple to clean surface.

Safety

• Safety shut-off.
• Pre-heat and residual heat indicator.

Planning notes

• Depending on the type of installation (surface-mounted or flush-mounted, with or without an appliance cover), the specific location of the cut-out and the knob positions may vary.
• If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
• The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
• Additional instructions for flush mounting:
• Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
• The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
• The joint width may vary due to size tolerances of the combinations and of the worktop cut-out.
• If installing several appliances in individual cut-outs allow for a division bar of minimum 50 mm between the individual cut-outs.
• A minimum lateral clearance of at least 40 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
• Appliance can be snapped into the worktop from above.
• Appliance weight: approx. 29 kg.

Rating

• Total rating: Connected load: 9360 W
• Plan for a 37'' connecting cable without plug (hardwire required).
