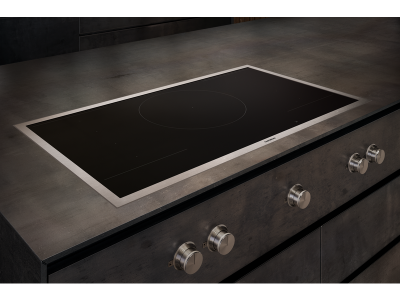

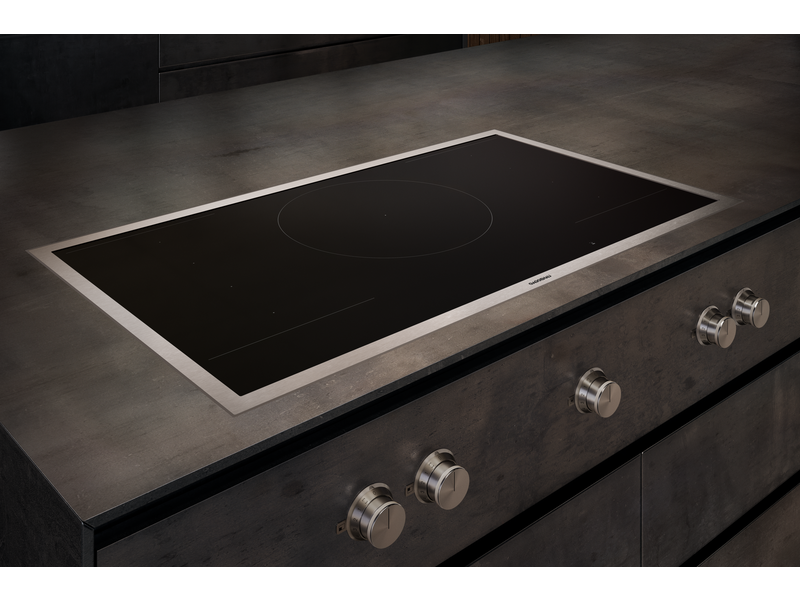

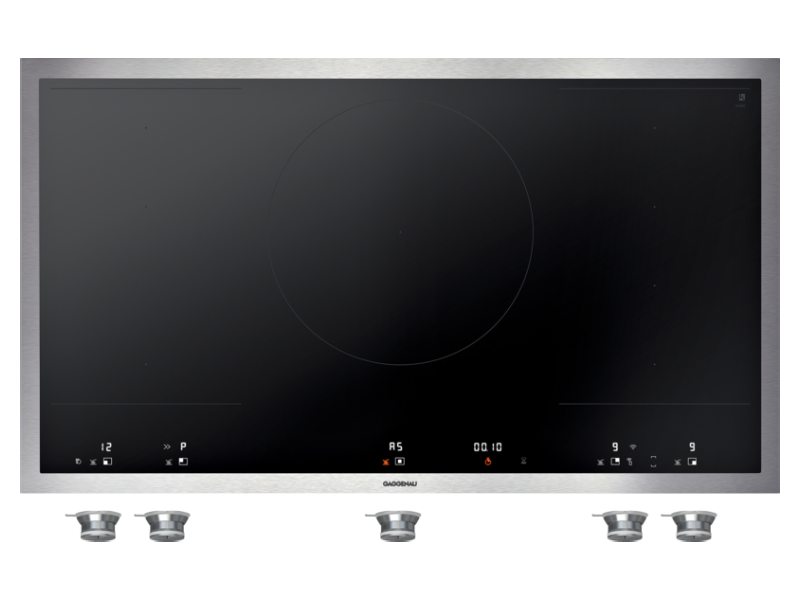

36" Gaggenau 400 Series Vario Flex Induction Cooktop - VI492613

Highlights

• Flex function for combining the rectangular cooking areas
• Free positioning of cookware inside combined cooking areas
• Frying sensor function for temperature control in pans
• Large cooking zone for pots up to ø 32 cm
• Ideal for round-bottomed wok using wok ring attachment

Additional Information

Cooking zones

• 2 flex induction cooking areas 19x21,5 cm (2200 W, with booster 3600 W), linked together 38x21,5 cm (3300 W, with booster 3600 W).
• 2 flex induction cooking areas 19x21,5 cm (2200 W, with booster 3600 W), linked together 38x21,5 cm (3300 W, with booster 3600 W).
• 1 induction cooking zone ø 8 1/4" (21cm) (2200 W, with booster 3700 W), automatically switches to ø 10 1/4" (26cm) (2600 W, with booster 3700 W) and to ø 12 5/8" (3300 W, with booster 3700 W).

Operation

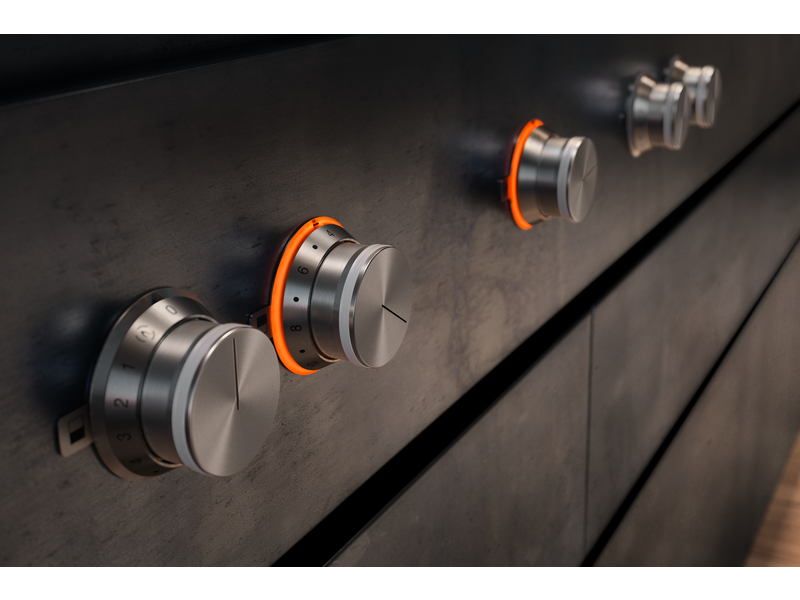

• Control knobs with illuminated ring, cooking zone and output level markings.
• Electronic power control in 17 output levels.
• User friendly control with bicoloured display (white / orange).

Features

• Flex function for rectangular cooking areas.
• Frying sensor function.
• Booster function.
• Stopwatch.
• Short-term timer.
• Options menu.
• Power management.
• Cooktop-based ventilation control (with suitable hood).
• Home network integration for digital services (Home Connect) wireless via WiFi.
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

Safety

• Operation indicator.
• Pot detection.
• Digital 2 stage residual heat indicator
• Safety shut-off.

Planning notes

• Depending on the type of installation (surface-mounted or flush-mounted), the specific location of the cut-out and the knob positions may vary.
• The horizontal positioning of the knobs may be aligned with the specific cooking areas and zones.
• The adjacent drawing "installation of the control knob" must be observed if the panel is more than 1" thick. There must be a recess at the rear for proper electronic knob installation.
• If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
• The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
• Additional instructions for flush mounting:
• Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
• The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
• The joint width may vary due to size tolerances of the combinations and of the worktop cut-out.
• If installing several appliances in individual cut-outs allow for a division bar of minimum 50 mm between the individual cut-outs.
• Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.
• Appliance can be snapped into the worktop from above.
• Appliance weight: approx. 29 kg.

Rating

• Total rating: Connected load: 9360 W
• Total Amps: 50 A.
• 208 - 240 V / 60 Hz.
• Plan for a 37'' connecting cable without plug (hardwire required).
• Power consumption standby/display off 0.5 W.
• Power consumption standby/network 1.9 W.
• Please check the user manual for how to switch off the WiFi module.
