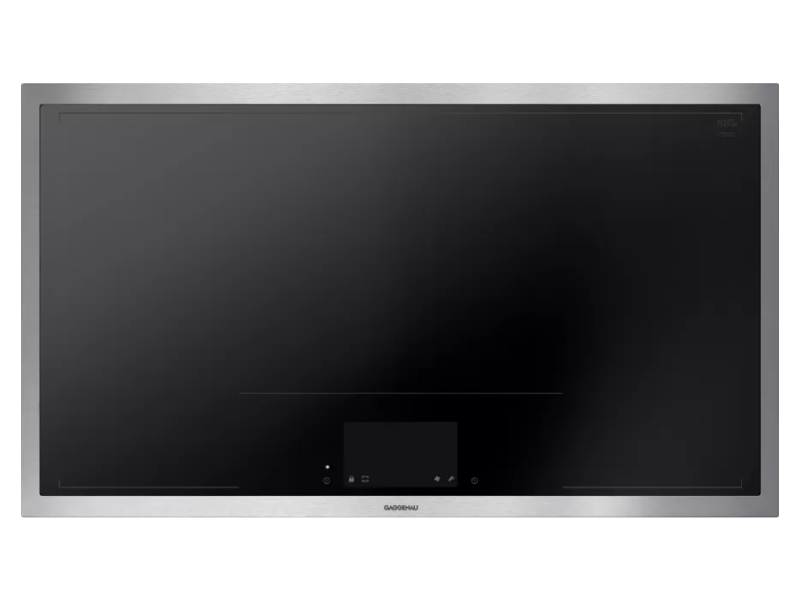

36" Gaggenau 400 Series Full Surface Induction Cooktop - CX492611

Highlights

• One large cooking surface
• Free positioning of cookware
• All sizes and formats of cookware can be used
• TFT touch display for an intuitive control of all functions
• Cooking sensor function for temperature control in pots

Additional Information

Cooking zones

• One unique cooking surface of 3200 cm².
• Up to 6 items of cookware can be placed simultaneously on the cooktop.

Operation

• Easy to use colour graphic TFT touch display with use indications.
• Electronic power control in 17 output levels.

Features

• Cooking sensor function.
• Professional cooking function.
• Dynamic cooking function.
• Teppan Yaki function.
• Booster function for pots.
• Booster function for pans.
• Keep warm function.
• Individual pot detection.
• Stopwatch.
• Short-term timer.
• Information key with use indicators.
• Power management.
• Cooktop-based ventilation control (with suitable hood).
• Home network integration for digital services (Home Connect) wireless via WiFi.
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

Safety

• Main switch.
• Residual heat indicator.
• Child lock.
• Safety shut-off.
• Pause function.

Planning notes

• Depending on the type of installation (surface-mounted or flush-mounted), the specific definition of the cut-out must be observed.
• If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
• The bearing capacity and stability, in the case of thin worktops in particular, must be supported using suitable substructures. Take into account the appliance weight and additional loads.
• Additional instructions for flush mounting:
• Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
• The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
• The joint width may vary due to size tolerances of the combinations and of the worktop cut-out.
• If installing several appliances in individual cut-outs allow for a division bar of minimum 50 mm between the individual cut-outs.
• Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.
• The wok pan WP 400 001 cannot be used with this appliance.
• Appliance can be snapped into the worktop from above.
• Appliance weight: approx. 29 kg.

Rating

• Total rating: Connected load: 9360 W
• Total Amps: 30 A.
• 208 - 240 V / 60 Hz.
• Plan for a 37'' connecting cable without plug (hardwire required).
