Pair with the Integrated Triple Zone Refrigerator for the ultimate kitchen solution – this model features three independent food zones taking cooling flexibility to a new level.
Overview
Features and Benefits

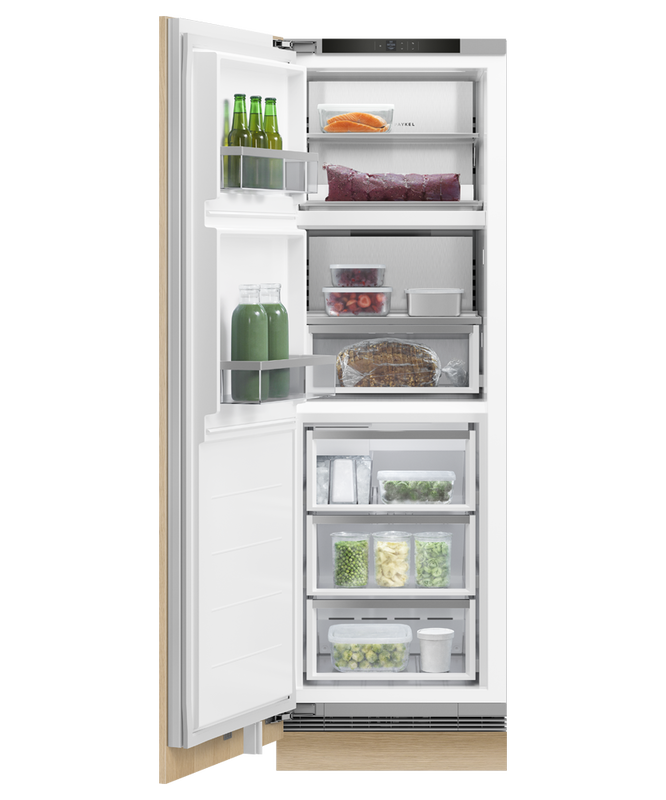

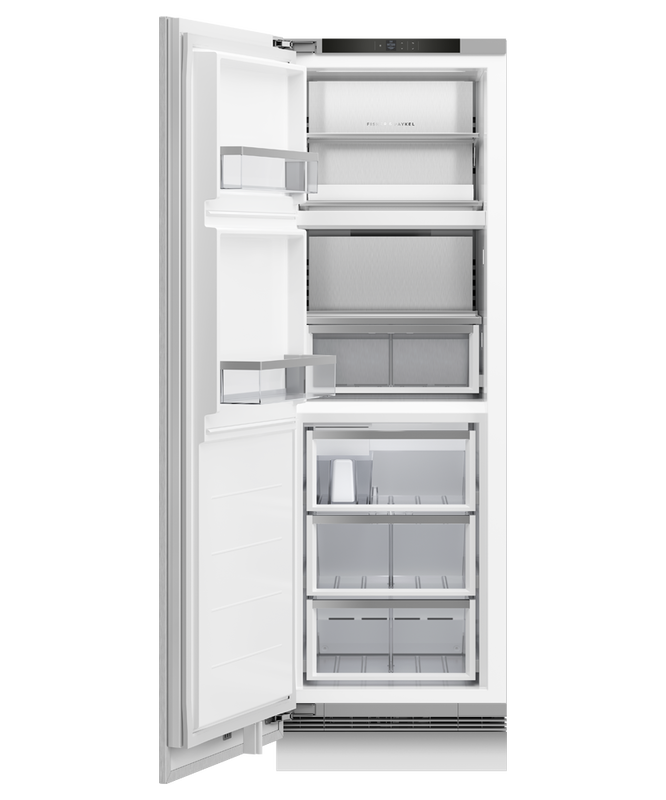

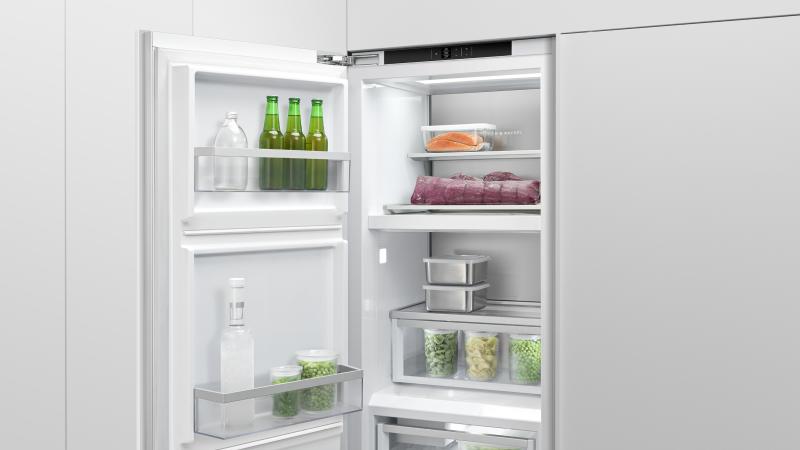

THREE LEVELS OF FRESHNESS
When it comes to optimal food preservation, one temperature does not fit all. Three independent food zones give you full control over the way you care for food. The Freezer zone has adjustable temperature from -6 to 7°F, while the top two compartments can be converted into a Chill (29 to 32°F), Soft-Freeze (14 to 18°F) or Freezer zone (-6 to 7°F), to best suit different types of food. Adjust temperature for everyday convenience, or to provide additional chilling capacity for special occasions.

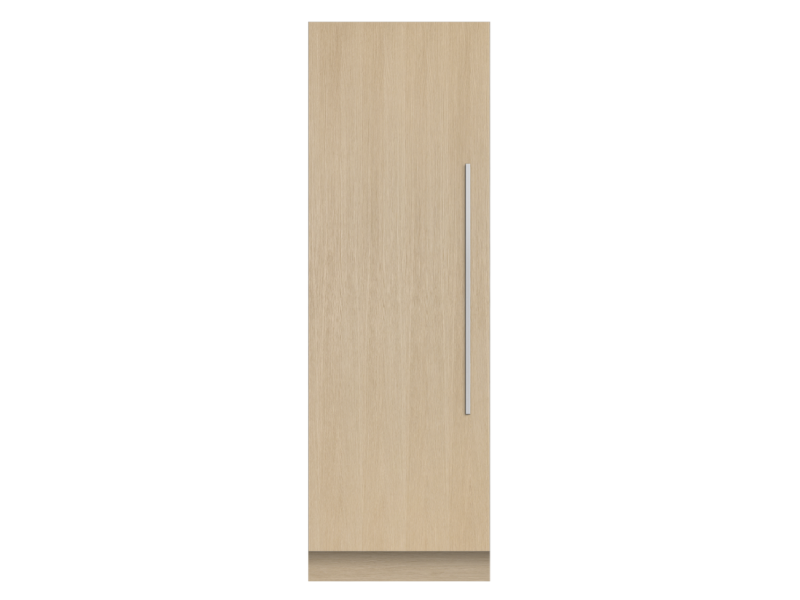

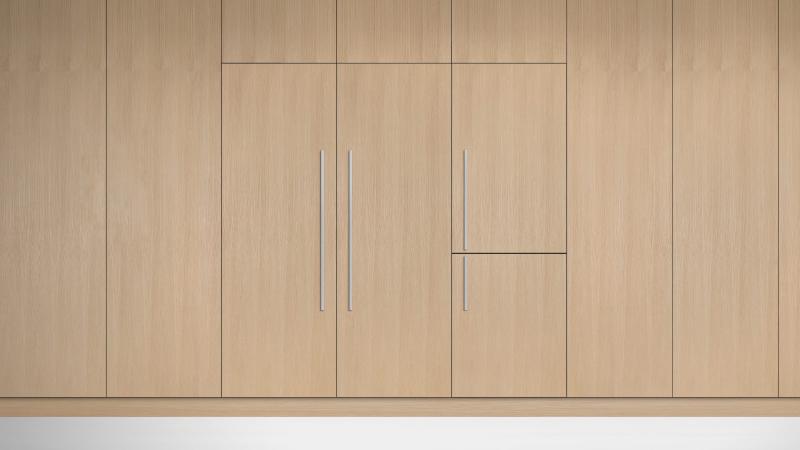

PERFECT FIT

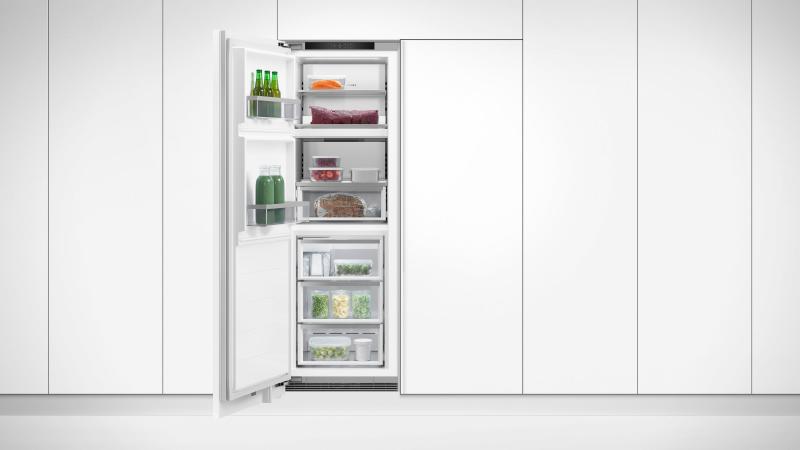

These models fit flush, with only 3/16pathum gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.

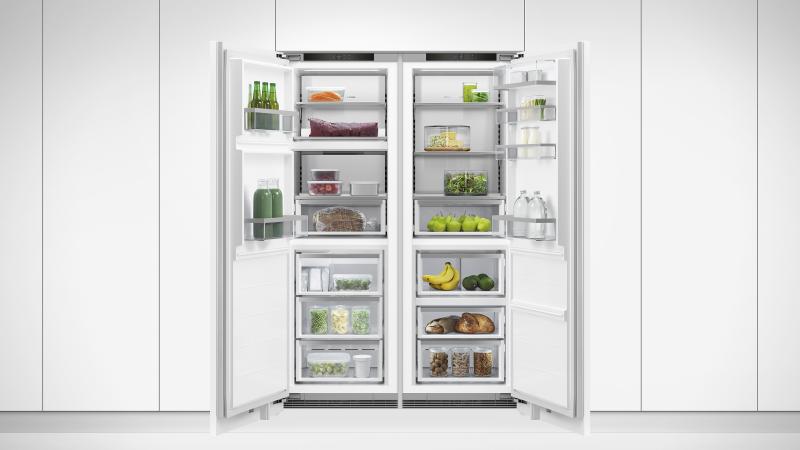

MIX & MATCH
These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
CHILL MODE
Keep ready-to-eat food fresher for longer with Chill mode (29 to 32°F). Chill mode is a perfect solution for everyday life. It keeps meats, poultry and fish as cool as possible without freezing, retaining vital freshness and helps food retain its condition. It’s also great for entertaining. Set one of the top two compartments to Chill mode to quickly bring beverages down to serving temperature.
CLEVER ENERGY
ActiveSmart™ Foodcare learns how you live. It is technology that understands how you use your freezer and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
SIMPLE INSTALLATION
Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen. These models are designed to easily slide into place as separate units – a perfect fit for European design kitchens.

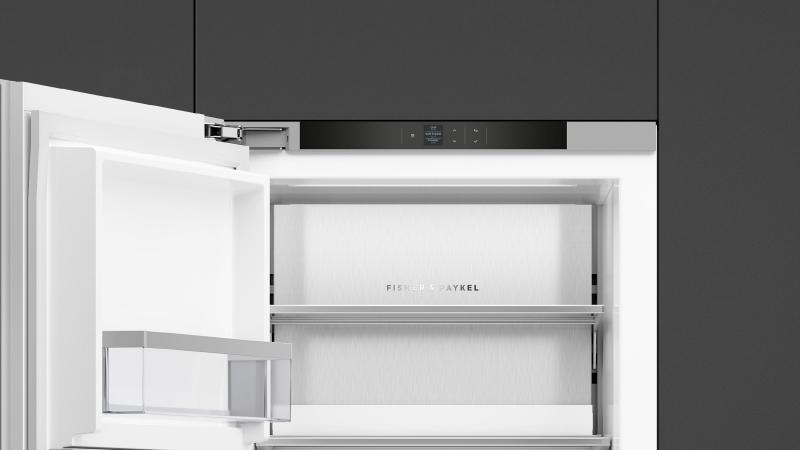

EASE OF USE
Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the freezer door is family safe with a soft-close mechanism.
| Accessories | |
|---|---|
| Hinge change (from left hinge to right hinge) | Yes |
| Accessories (sold separately) | |
| Door panel stainless steel | RD2474 (right & left hinge) |
| Handle kit Contemporary square fine, aluminium | AHD5RDSF |
| Handle kit Contemporary square fine, black | AHD5RDSFB |
| Handle kit Professional round flush | 25921 |
| Joiner kit | AJRS74LR |
| Toe kick stainless steel 23" | AKRS2304 |
| Toe kick stainless steel 47" | AKRS4704 |
| Toe kick stainless steel 71" | AKRS7104 |
| Water filter replacement | 847200 |
| Capacity | |
| Total gross capacity | 10.7cu ft |
| Volume freezer | 10.7cu ft |
| Consumption | |
| Energy usage | 379kWh/year |
| Features | |
| Number of Shelves | 2 |
| Adjustable glass cantilevered shelves | Yes |
| Door alarm | Yes |
| LED lighting | Yes |
| SmartTouch control panel | Yes |
| Wi-Fi connectivity | Yes |
| Freezer Features | |
| Automatic ice maker | Yes |
| Bottle chill | Yes |
| Door alarm | Yes |
| Fast freeze | Yes |
| Freezer bins | 4 |
| Ice Boost | Yes |
| Ice making rate per day | 2.2lbs |
| LED bin lighting | Yes |
| LED ceiling lighting | Yes |
| LED side lighting | Yes |
| INSTALLATION DIMENSIONS | |
| Minimum inside width of cabinetry frame | 23 5⁄8 |
| Minimum internal depth of cabinetry | 24 |
| Minimum internal height of cabinetry | 74 |
| Performance | |
| ActiveSmart™ Foodcare | Yes |
| Adaptive defrost | Yes |
| Frost free | Yes |
| Inverter controlled compressor | Yes |
| Sabbath mode | Yes |
| Triple evaporator | Yes |
| Variable food modes | Chill |
| Variable temperature zones | 3 |
| Power Requirements | |
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
| Product Dimensions | |
| Depth | 22 11⁄16 |
| Height | 73 5⁄8 |
| Width | 23 5⁄16 |
| Warranty | |
| Parts and labour | 2 years |
| Sealed system parts only | 5 years |
