Place anywhere in your kitchen at bench height for easy loading and seamless integration. Features a premium stainless steel interior.
Overview
Features and Benefits
DESIGNED TO FIT
SEAMLESS INTEGRATION

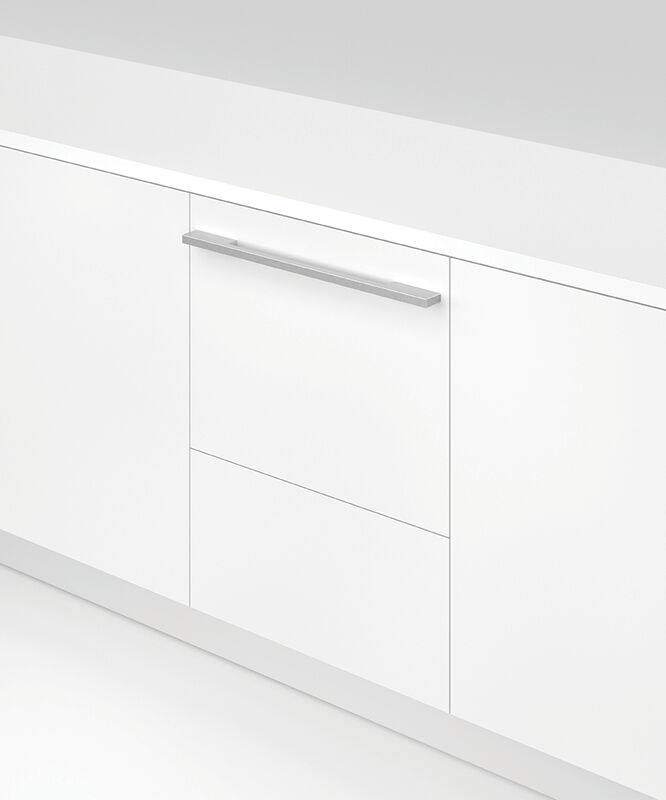

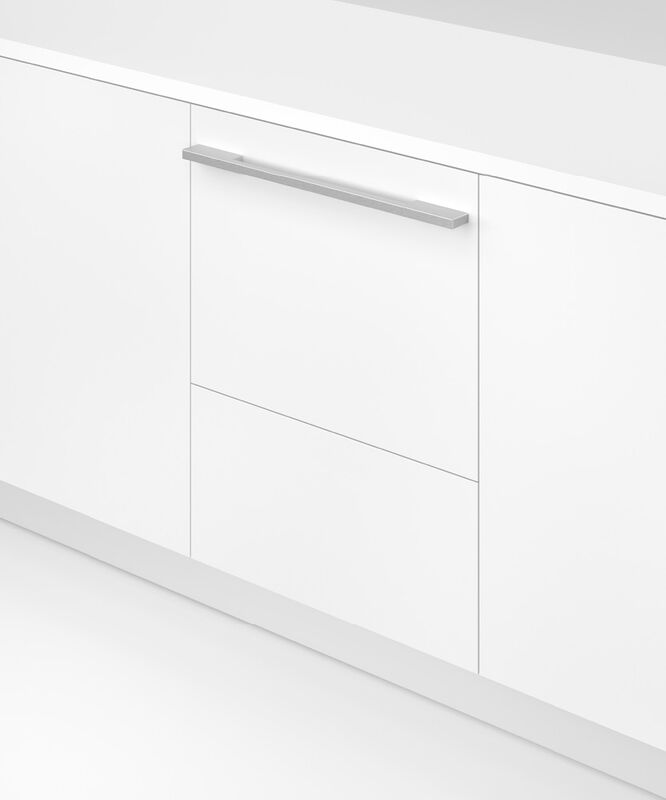

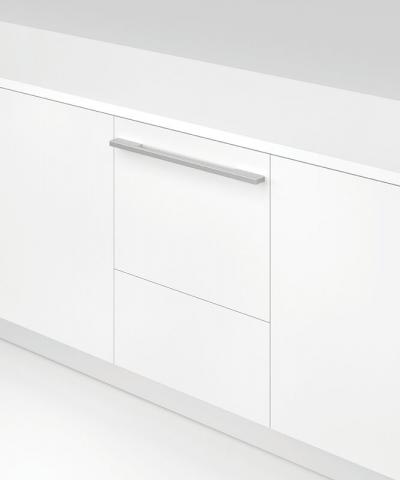

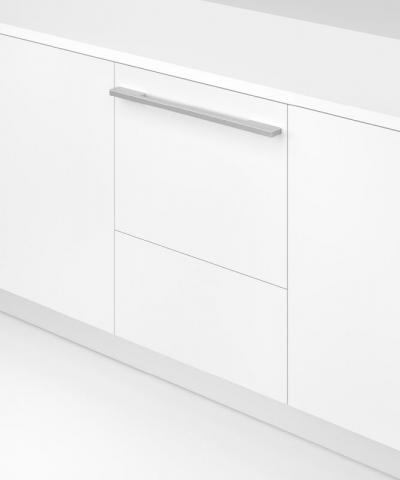

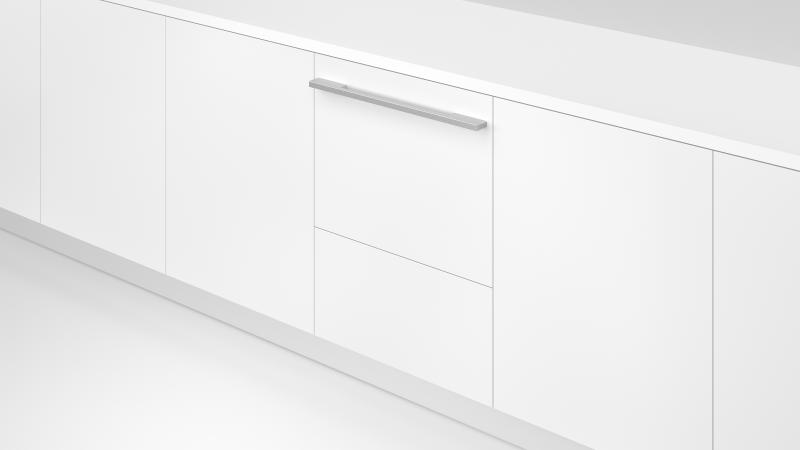

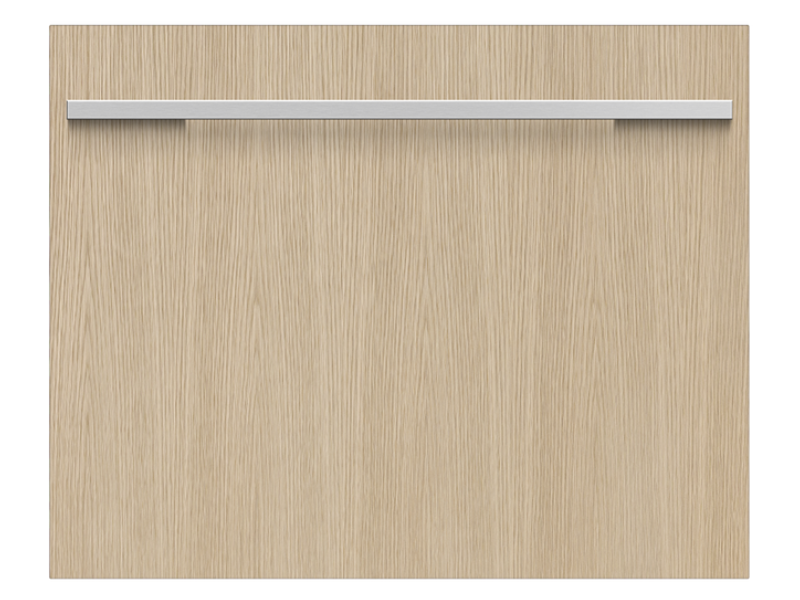

With the flexibility of ergonomic placement and function, single DishDrawer™ Dishwashers can be distributed throughout the kitchen to support patterns of use. The touch-sensitive control panel is located inside this Integrated model, leaving an uninterrupted exterior that blends seamlessly with surrounding cabinetry.
BEAUTIFUL TO USE
EASE OF USE

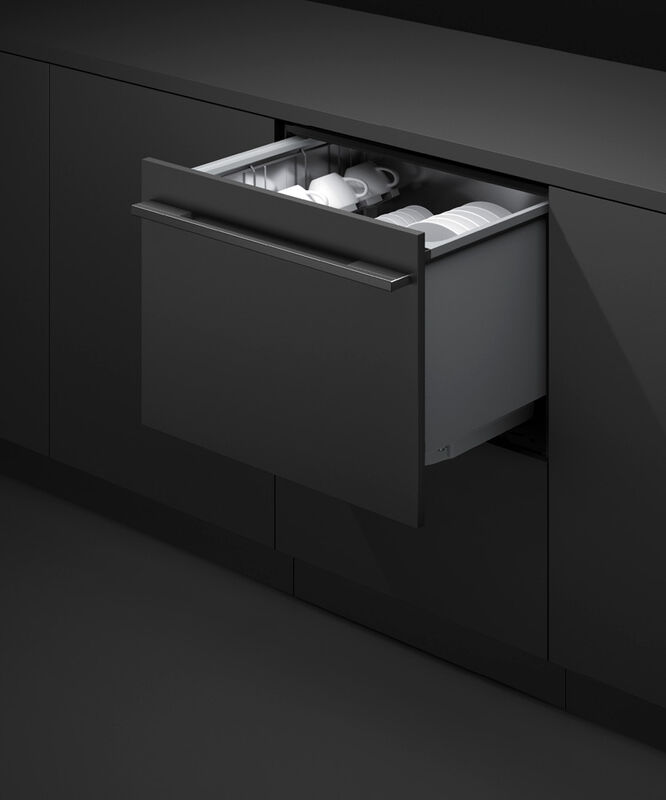

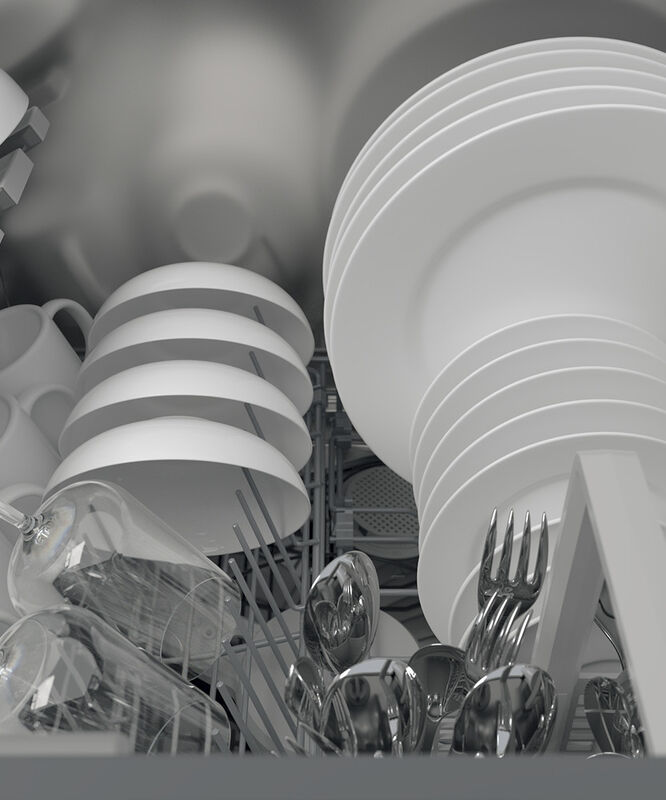

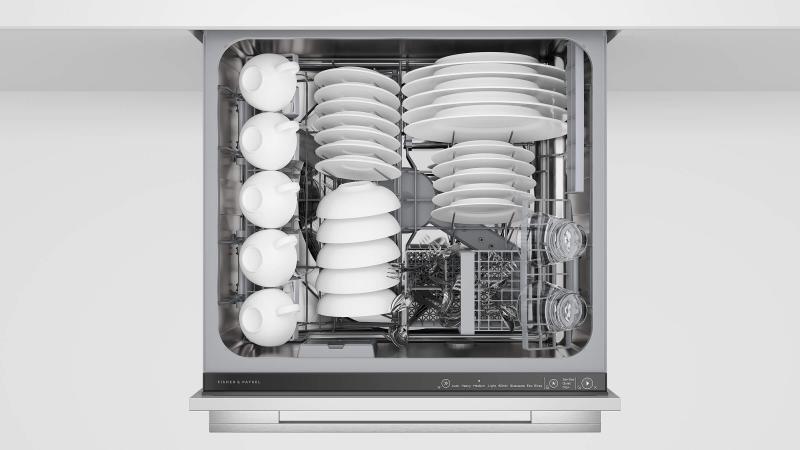

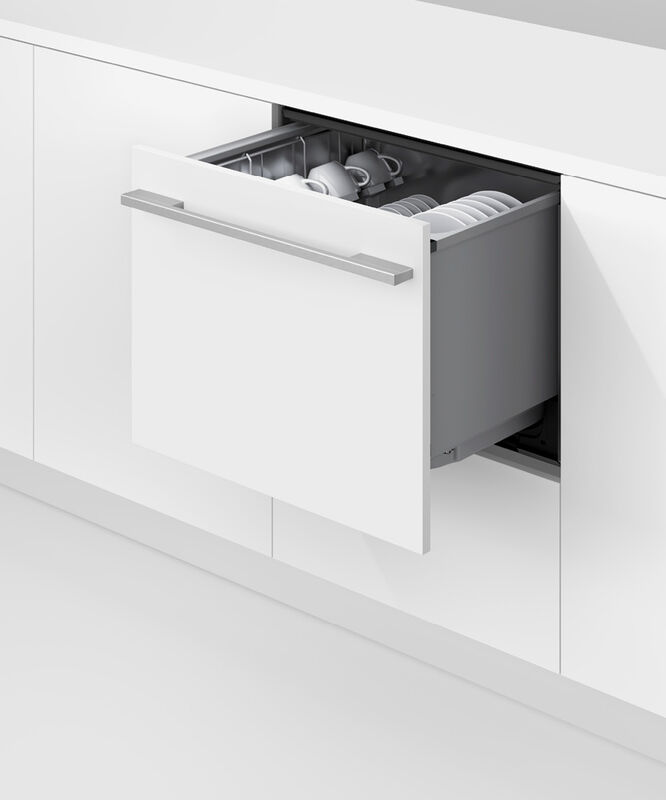

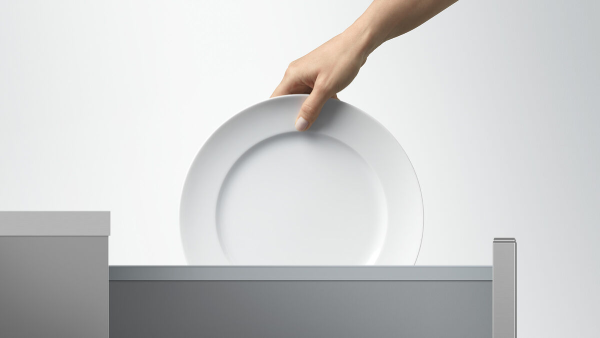

DishDrawer™ Dishwashers are beautiful to use with soft-close drawers, and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking includes height-adjustable cup racks and wine glass supports.
PERFECT RESULTS
FLEXIBLE WASH OPTIONS
Eight wash programs including Auto, 60min and Glassware, while modifiers such as Sanitize, Dry and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance – perfect for late night washing.
BUILT TO LAST
DESIGN QUALITY
Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
BEAUTIFUL TO USE
KNOCK TO PAUSE

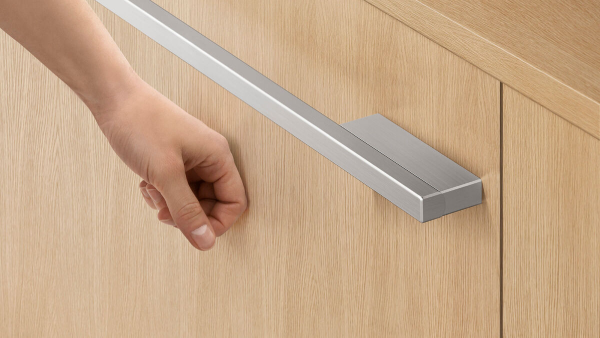

For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
BEAUTIFUL TO USE
QUIET PERFORMER
Running at a low decibel rating of 43dBA, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
RESPECT FOR THE PLANET
EFFICIENT PERFORMANCE
Our Energy Star rated DishDrawer™ Dishwashers use the energy they need without compromising on wash performance.
| Accessories | |
|---|---|
| Cutlery basket | Yes |
| Knife clip and multipurpose clip | Yes |
| Accessories (sold separately) | |
| Door panel stainless steel | ADDD24STPX |
| Handle kit Contemporary round, aluminium | AHS-OBDD-60S |
| Handle kit Contemporary square fine, aluminium | AHD5-OBDD-60S |
| Handle kit Contemporary square fine, black | AHD5-OBDD-60SB |
| Handle kit Contemporary square, aluminium | AHD3-OBDD-60S |
| Handle kit Professional round | AHP2-DWDD-SX |
| Handle kit Professional round flush | AHP3-DWDD-SX |
| Capacity and loading | |
| Accommodates round plates up to | 12.25 |
| Adjustable height, foldable cupracks | Yes |
| Fold down tines | Yes |
| Pitch adjustable tines | Yes |
| Place settings | 7 |
| Wine glass supports with stemware grippers | Yes |
| Consumption | |
| Energy rating | Energy star |
| Energy usage | 113kWh/year |
| Water usage (per wash cycle) | 1.7 gal |
| CONTROLS | |
| Child lock | Yes |
| Electronic fault/Diagnostic indicator | Yes |
| End of cycle beeps | Yes |
| Energy saving delay start option of up to 12 hours | Yes |
| Internal wash selector | Yes |
| Intuitive capacitive touch controls | Yes |
| Knock to pause | Yes |
| Rinse aid indicator light | Yes |
| Spray arm sensing | Yes |
| Wi-Fi connectivity | Yes |
| Features | |
| Fan assisted drying | Yes |
| Flood protection | Yes |
| Flow through detergent dispenser | Yes |
| Internal tub material | Stainless Steel |
| Quiet operation | Yes |
| SmartDrive™ technology | Yes |
| Soft close drawer | Yes |
| Performance | |
| Noise on standard cycle top drawer | 43dBA |
| Power Requirements | |
| Amperage | 5A |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product Dimensions | |
| Depth | 21 3⁄4 |
| Height | 17 7⁄8 |
| Width | 23 9⁄16 |
| Safety and compliance | |
| ADA compliant | Yes |
| Warranty | |
| Parts and labour | Limited 2 years |
| Wash Program Modifiers | |
| Dry + | Yes |
| Quiet | Yes |
| Sanitize | Yes |
| Wash modifiers | 3 |
| WASH PROGRAMS | |
| 60 min | Yes |
| Auto | Yes |
| Eco | Yes |
| Glassware | Yes |
| Heavy | Yes |
| Light | Yes |
| Medium | Yes |
| Rinse | Yes |
| Wash programs | 17 |
| Water connection | |
| Inlet water temperature | max 140 |
| Supplied hose to suit 3/8" (9mm) male compression fitting | Yes |
| Water pressure | 30kPa - 1000 kPa |
| Water supply | 3⁄8 to suit Male Compression Fitting |
