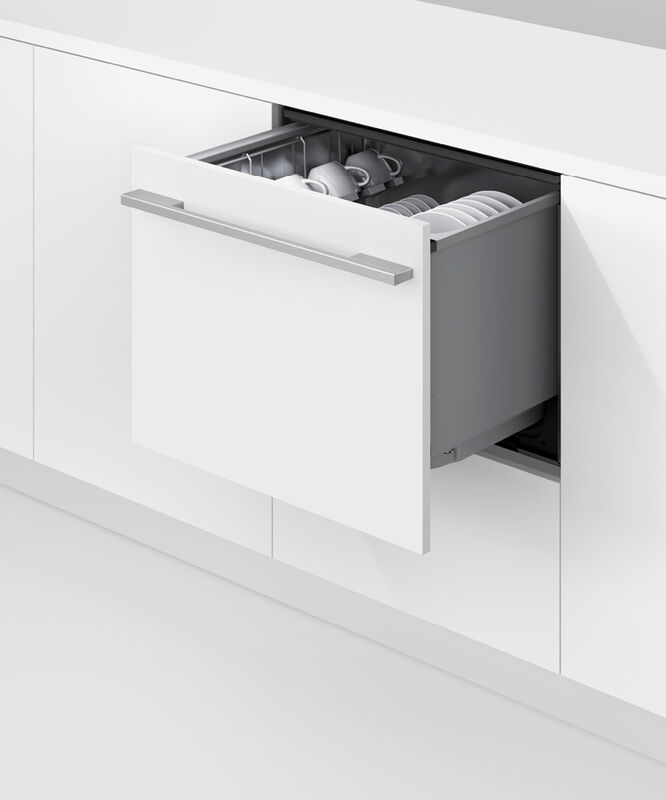

Place anywhere in your kitchen at bench height for easy loading and seamless integration. Features a premium stainless steel interior.
Overview
Features and Benefits

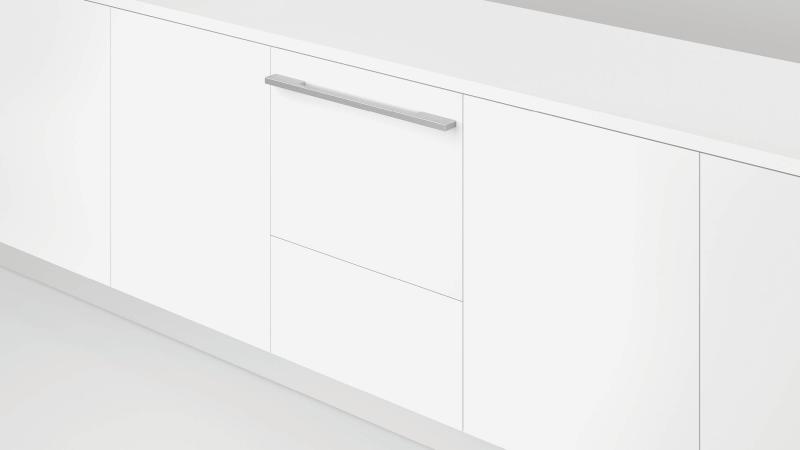

SEAMLESS INTEGRATION
With the flexibility of ergonomic placement and function, single DishDrawer™ Dishwashers can be distributed throughout the kitchen to support patterns of use. The touch-sensitive control panel is located inside this Integrated model, leaving an uninterrupted exterior that blends seamlessly with surrounding cabinetry.
EASE OF USE

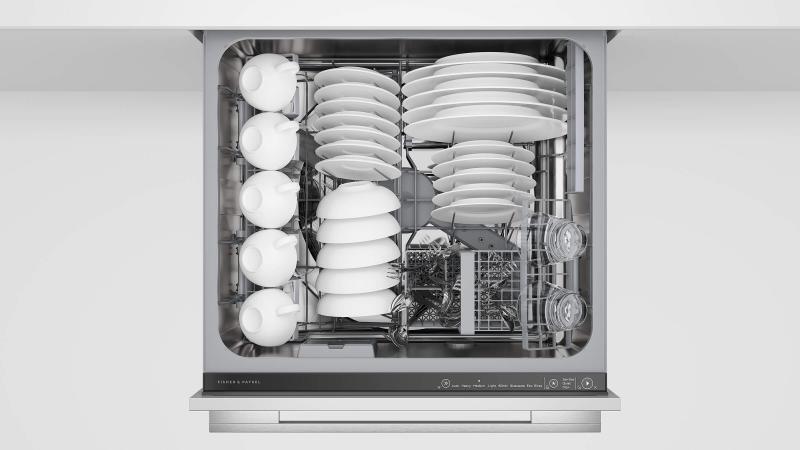

DishDrawer™ Dishwashers are beautiful to use with soft-close drawers, and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking includes height-adjustable cup racks and wine glass supports.
FLEXIBLE WASH OPTIONS
Eight wash programs including Auto, 60min and Glassware, while modifiers such as Sanitize, Dry and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance – perfect for late night washing.
DESIGN QUALITY
Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
KNOCK TO PAUSE
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
QUIET PERFORMER
Running at a low decibel rating of 43dBA, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
EFFICIENT PERFORMANCE
Our Energy Star rated DishDrawer™ Dishwashers use the energy they need without compromising on wash performance.
| Accessories | |
|---|---|
| Cutlery basket | Yes |
| Knife clip and multipurpose clip | Yes |
| Accessories (sold separately) | |
| Door panel stainless steel | ADDD24STPX |
| Handle kit Contemporary round, aluminium | AHS-OBDD-60S |
| Handle kit Contemporary square fine, aluminium | AHD5-OBDD-60SX |
| Handle kit Contemporary square fine, black | AHD5-OBDD-60SB |
| Handle kit Contemporary square, aluminium | AHD3-OBDD-60S |
| Handle kit Professional round | AHP2-DWDD-SX |
| Handle kit Professional round flush | AHP3-DWDD-SX |
| Capacity and loading | |
| Accommodates round plates up to | 12.25 |
| Adjustable height, foldable cupracks | Yes |
| Fold down tines | Yes |
| Pitch adjustable tines | Yes |
| Place settings | 7 |
| Wine glass supports with stemware grippers | Yes |
| Consumption | |
| Energy usage | 154kWh/year |
| Water usage (per wash cycle) | 1.8 gal |
| CONTROLS | |
| Child lock | Yes |
| Electronic fault/Diagnostic indicator | Yes |
| End of cycle beeps | Yes |
| Energy saving delay start option of up to 12 hours | Yes |
| Internal wash selector | Yes |
| Intuitive capacitive touch controls | Yes |
| Knock to pause | Yes |
| Rinse aid indicator light | Yes |
| Spray arm sensing | Yes |
| Wi-Fi connectivity | Yes |
| Features | |
| Built-in water softener | Yes |
| Fan assisted drying | Yes |
| Flood protection | Yes |
| Flow through detergent dispenser | Yes |
| Internal tub material | Stainless Steel |
| Quiet operation | Yes |
| SmartDrive™ technology | Yes |
| Soft close drawer | Yes |
| Performance | |
| Noise on standard cycle top drawer | 43dBA |
| Power Requirements | |
| Amperage | 5A |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product Dimensions | |
| Depth | 21 3⁄4 |
| Height | 17 7⁄8 |
| Width | 23 9⁄16 |
| Safety and compliance | |
| ADA compliant | Yes |
| Warranty | |
| Parts and labour | Limited 2 years |
| Wash Program Modifiers | |
| Dry + | Yes |
| Quiet | Yes |
| Sanitize | Yes |
| Wash modifiers | 3 |
| WASH PROGRAMS | |
| 60 min | Yes |
| Auto | Yes |
| Eco | Yes |
| Glassware | Yes |
| Heavy | Yes |
| Light | Yes |
| Medium | Yes |
| Rinse | Yes |
| Wash programs | 8 |
| Water connection | |
| Inlet water temperature | max 140 |
| Supplied hose to suit 3/8" (9mm) male compression fitting | Yes |
| Water pressure | 100kPa - 1000kPa |
| Water supply | 3⁄8 to suit Male Compression Fitting |
