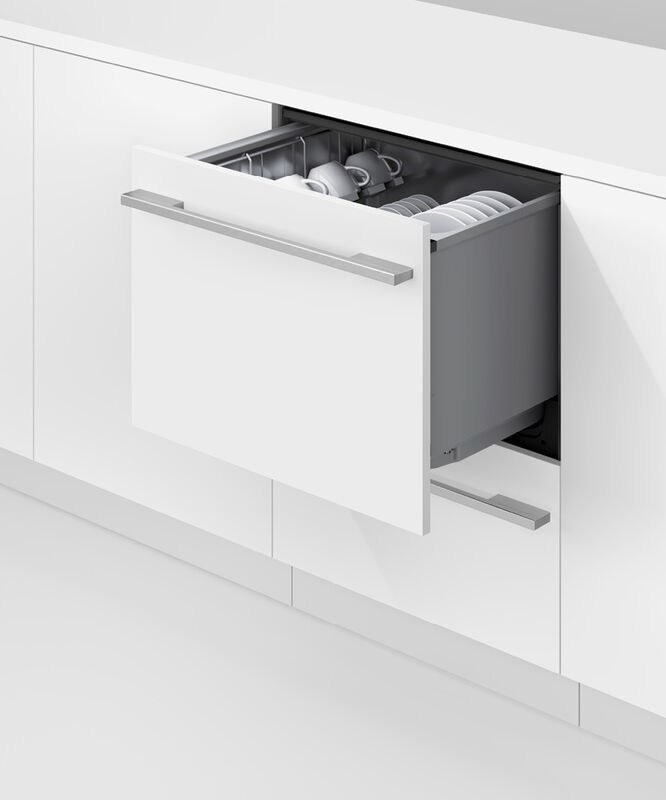

Integrates seamlessly into kitchen cabinetry. Each drawer features a premium stainless steel interior and operates independently, for flexible washing.
Overview
Features and Benefits
SEAMLESS INTEGRATION

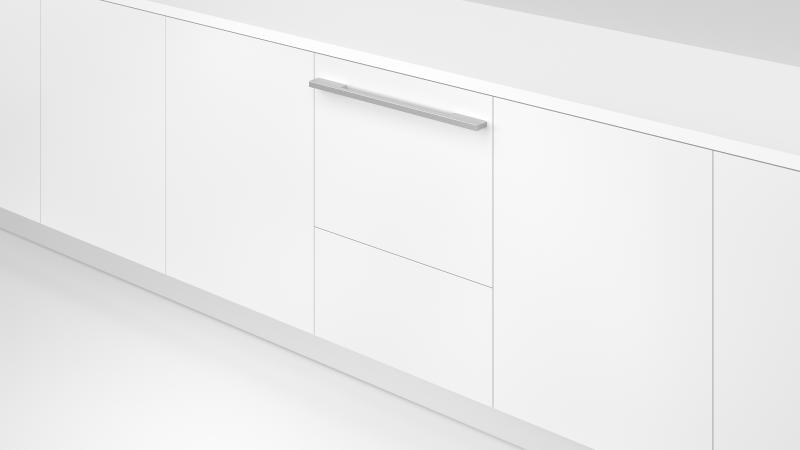

Install your DishDrawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry. The touch-sensitive control panel is located inside this Integrated model, leaving an uninterrupted exterior that blends seamlessly with surrounding cabinetry.
EASE OF USE
DishDrawer™ Dishwashers are beautiful to use with soft-close drawers. The tall top drawer fits your larger plates and dishes up to 12 1/4 inches, while the bottom drawer is ideal for small washes. Flexible racking includes height-adjustable cup racks and wine glass supports.
TRUE HALF LOAD
Both drawers fit a true half load. Each drawer operates independently, so you can wash one load while stacking the other drawer, or wash simultaneously on separate cycles.
FLEXIBLE WASH OPTIONS
Eight wash programs including Auto, 60min and Glassware, while modifiers such as Sanitize, Dry and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance – perfect for late night washing.
DESIGN QUALITY

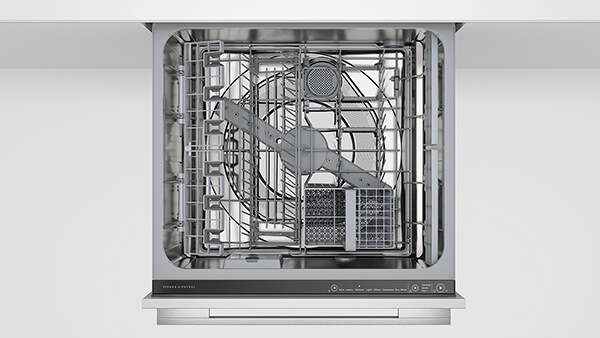

Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
KNOCK TO PAUSE
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
QUIET PERFORMER
Running at a low decibel rating of 44dBA, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
| Accessories | |
|---|---|
| Cutlery basket | Yes |
| Kickstrip | Yes |
| Knife clip and multipurpose clip | Yes |
| Accessories (sold separately) | |
| Door panel stainless steel | ADDD24DTPX |
| Handle kit Contemporary round, aluminium | AHS-OBDD-60S |
| Handle kit Contemporary square fine, aluminium | AHD5-OBDD-60SX |
| Handle kit Contemporary square fine, black | AHD5-OBDD-60SB |
| Handle kit Contemporary square, aluminium | AHD3-OBDD-60S |
| Handle kit Professional round | AHP2-DWDD-SX |
| Handle kit Professional round flush | AHP3-DWDD-SX |
| Capacity and loading | |
| Accommodates round plates up to | 12.25 (top) 11 (bottom) |
| Adjustable height, foldable cupracks | Yes |
| Fold down tines | Yes |
| Pitch adjustable tines | Yes |
| Place settings | 14 |
| Wine glass supports with stemware grippers | Yes |
| Consumption | |
| Energy usage | 239kWh/year |
| Water usage (per wash cycle) | 3.1 gal |
| CONTROLS | |
| Child lock | Yes |
| Electronic fault/Diagnostic indicator | Yes |
| End of cycle beeps | Yes |
| Energy saving delay start option of up to 12 hours | Yes |
| Internal wash selector | Yes |
| Intuitive capacitive touch controls | Yes |
| Knock to pause | Yes |
| Rinse aid indicator light | Yes |
| Spray arm sensing | Yes |
| Wi-Fi connectivity | Yes |
| Features | |
| Built-in water softener | Yes |
| Fan assisted drying | Yes |
| Flood protection | Yes |
| Flow through detergent dispenser | Yes |
| Internal tub material | Stainless steel |
| Quiet operation | Yes |
| SmartDrive™ technology | Yes |
| Soft close drawer | Yes |
| Performance | |
| Noise on standard cycle top drawer | 44dBA |
| Power Requirements | |
| Amperage | 10A |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product Dimensions | |
| Depth | 21 3⁄4 |
| Height | 34 - 36 3⁄8 |
| Width | 23 9⁄16 |
| Warranty | |
| Parts and labour | Limited 2 years |
| Wash Program Modifiers | |
| Dry + | Yes |
| Quiet | Yes |
| Sanitize | Yes |
| Wash modifiers | 3 |
| WASH PROGRAMS | |
| 60 min | Yes |
| Auto | Yes |
| Eco | Yes |
| Glassware | Yes |
| Heavy | Yes |
| Light | Yes |
| Medium | Yes |
| Rinse | Yes |
| Wash programs | 8 |
| Water connection | |
| Inlet water temperature | max 140 |
| Supplied hose to suit 3/8" (9mm) male compression fitting | Yes |
| Water pressure | 100kPa - 1000kPa |
| Water supply | 3⁄8 to suit Male Compression Fitting |
