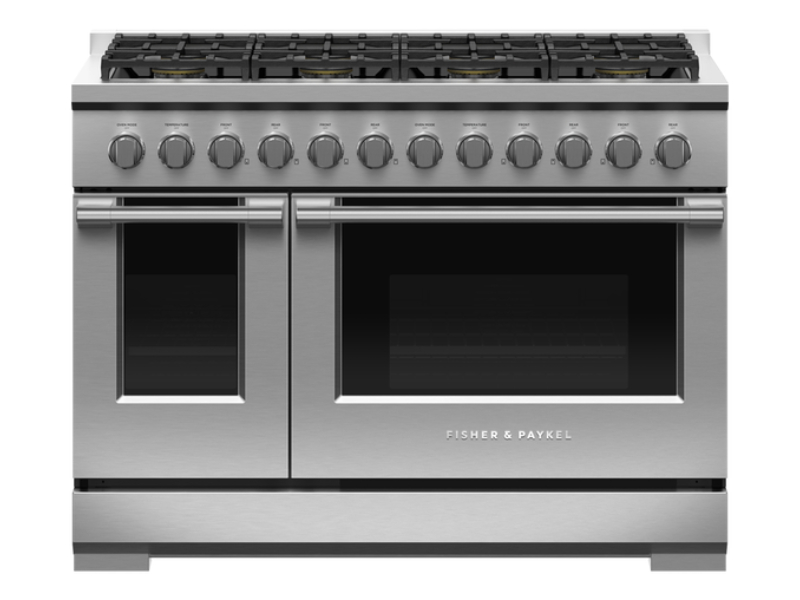

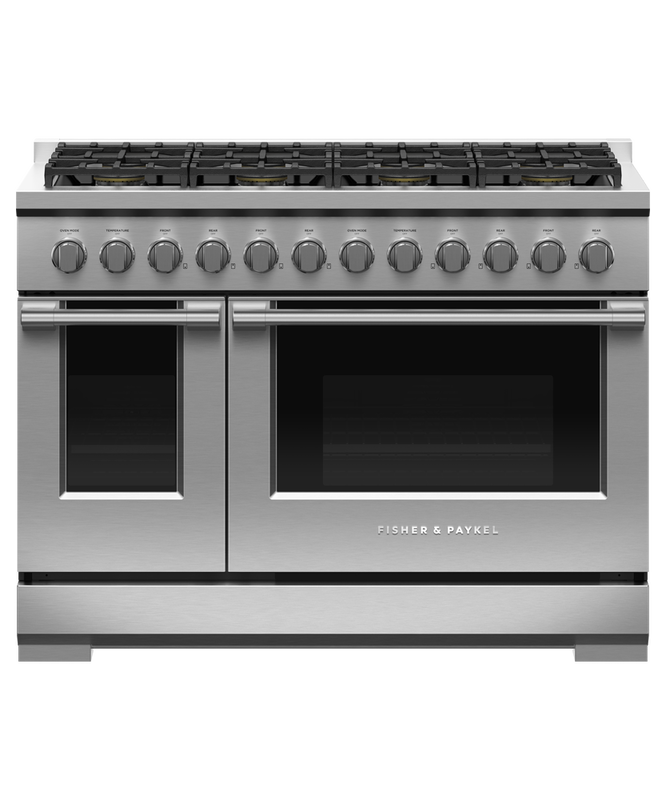

Size plus power. Eight burners deliver powerful 23,500 BTU heat, with two gas ovens for a combined 7.7 cu ft capacity.
Overview
Features and Benefits
Generous capacity
Featuring a generous total capacity of 7.7 cu ft, with enough room to fit a 32 lb turkey, or to cook several dishes at once.
Cooktop power
Sealed Dual Flow Burners deliver cooktop power up to 23,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Cooking flexibility

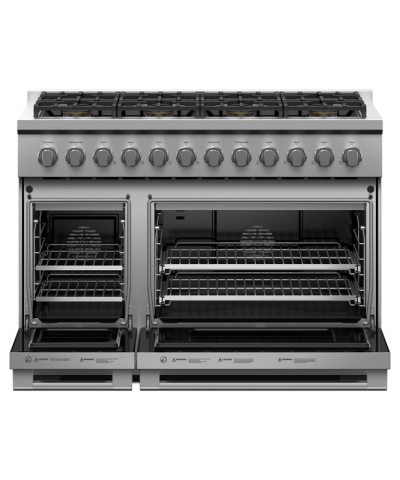

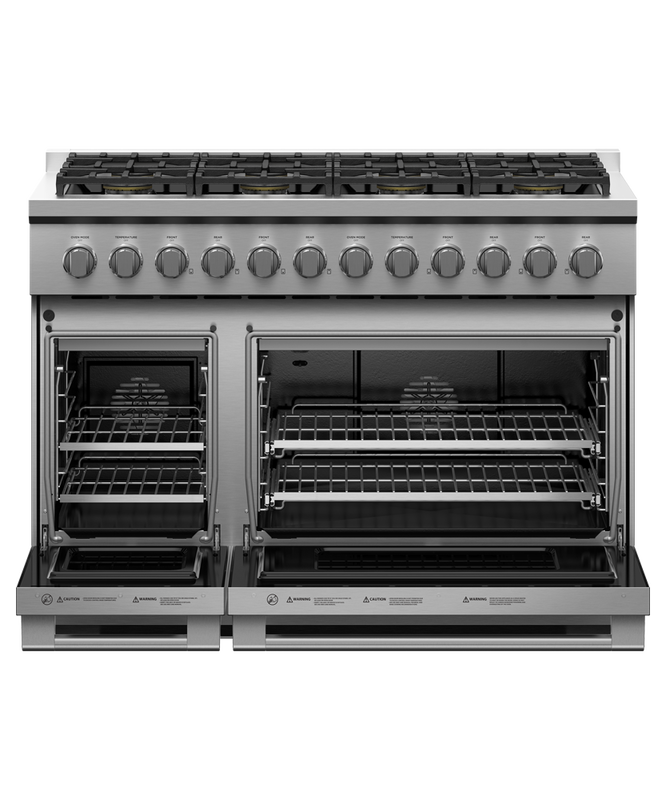

The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
Design quality
This range has craftsmanship in every detail, with real stainless steel, cast-iron trivets, and titanium coated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful legs to the powerful cooktop, the Range is built to last.
Easy to clean
Cleaning up spills is effortless with the continuous, porcelain basepan. Your cooktop simply needs a quick wipe to keep it looking good as new.
Total control
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.
| Power Requirements | |
|---|---|
| Amperage | 15 |
| Oven Performance | |
| Main Oven Usable Capacity | 3.9cu ft |
| Main Oven Shelf Positions | 5 |
| Broil power | 18,500 |
| Bake power | 28,000 |
| Bake | Yes |
| Oven functions | |
| Slow cook | Yes |
| Convection bake | Yes |
| Bake | Yes |
| Broil | Yes |
| Oven Features | |
| Internal light | Yes |
| Full extension telescopic sliding shelves | 3 |
| Electronic oven control | Yes |
| Broil pan | Yes |
| Gas requirements | |
| Supply Pressure (natural gas) | 6 to 9 W.C |
| Gas requirements | NG |
| Fitting and pipe | NPT, min. ⅝ ∅ flex line |
| CONTROLS | |
| Titanium coated, illuminated metal dials | Yes |
| Star K Certification | Yes |
| Cleaning | |
| Easy clean porcelain basepan | Yes |
| Capacity | |
| Usable capacity | 5.6 |
| Total capacity | 7.7 |
| Shelf positions | 5 |
| Accessories | |
| Square handle option | AH-R48 |
| Rangetop Performance | |
| Max burner power | 23,500 |
| Left rear zone rating | 18,500 |
| Left front zone rating | 23,500 |
| Front centre | 18,500 |
| Back centre | 18,500 |
| Rangetop features | |
| Vent trim included | Flat vent trim |
| Simmer on all burners | 140°F |
| Sealed range top | Yes |
| Sealed Dual Flow Burners™ | 8 |
| Product Dimensions | |
| Width | 47 7⁄8 |
| Height | 35 3⁄4 - 36 3⁄4 |
| Depth | 29 1⁄8 |
| Power Requirements | |
| Supply frequency | 60 |
| Supply voltage | 120 |
| Warranty | |
| Parts and labour | 2 years |
| SAFETY | |
| Full extension telescopic sliding shelves | 3 |
| ADA compliant | Yes |
| Recommended back guards and ventilation | |
| Recommended hood | HCB48-12_N (48 Professional Range Hood, Dual Blower) |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Combustible situation | BGRV3-3048H |
| Rangetop Performance | |
| Total cooktop power | 158,000 |
| Right front zone rating | 23,500 |
| Right rear zone rating | 18,500 |
