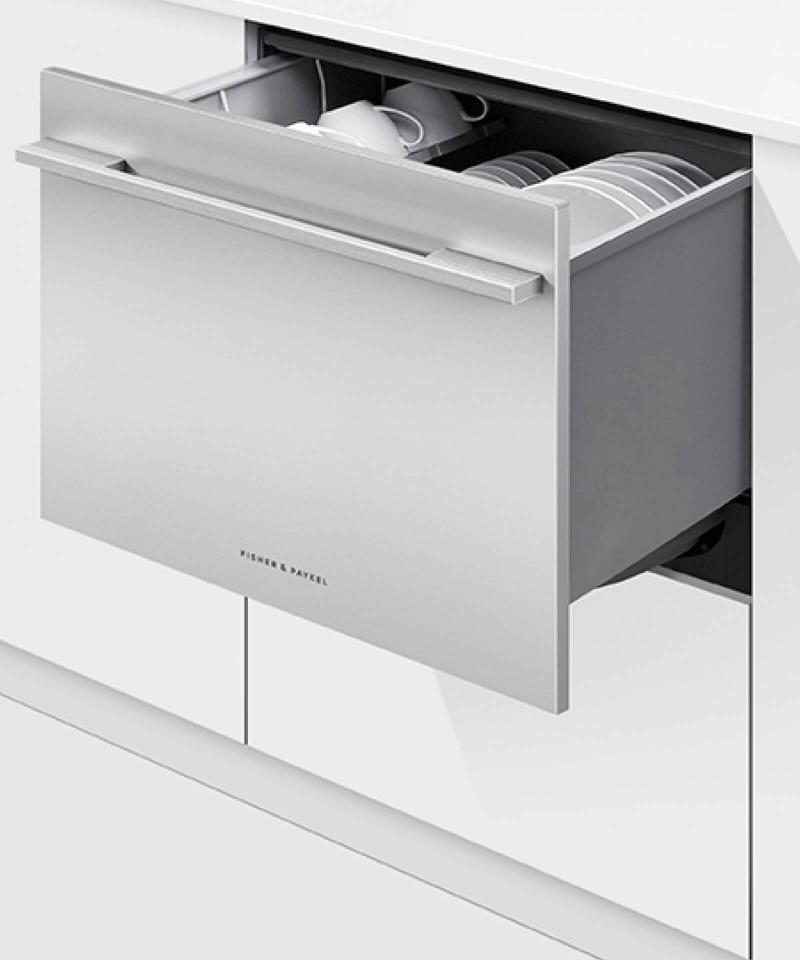

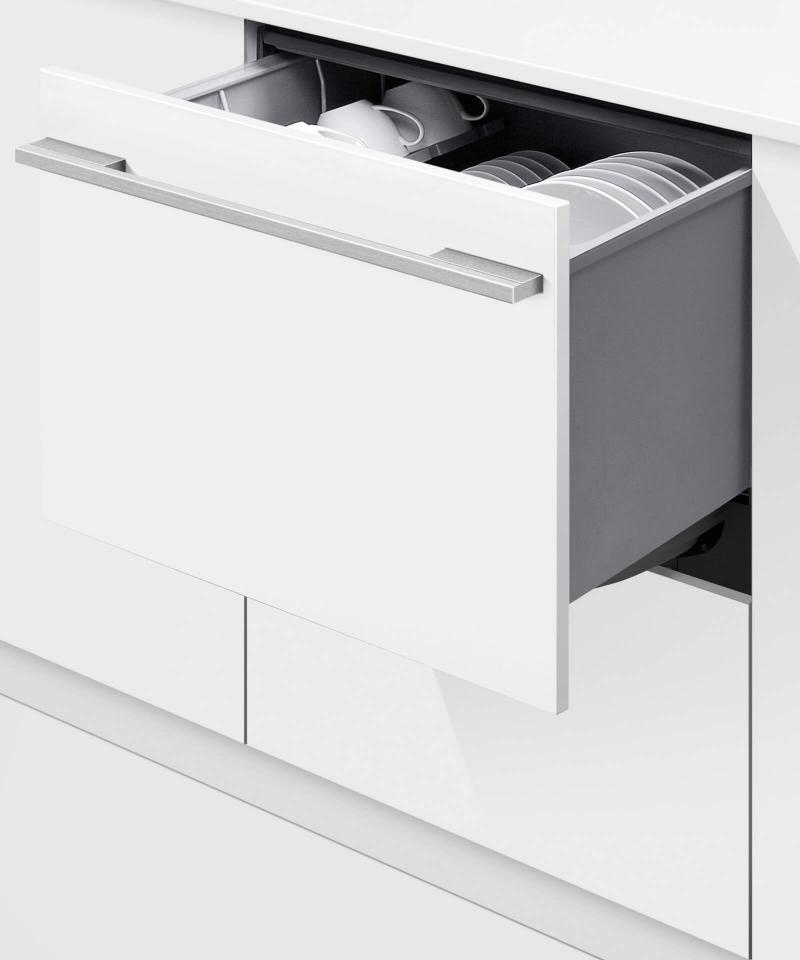

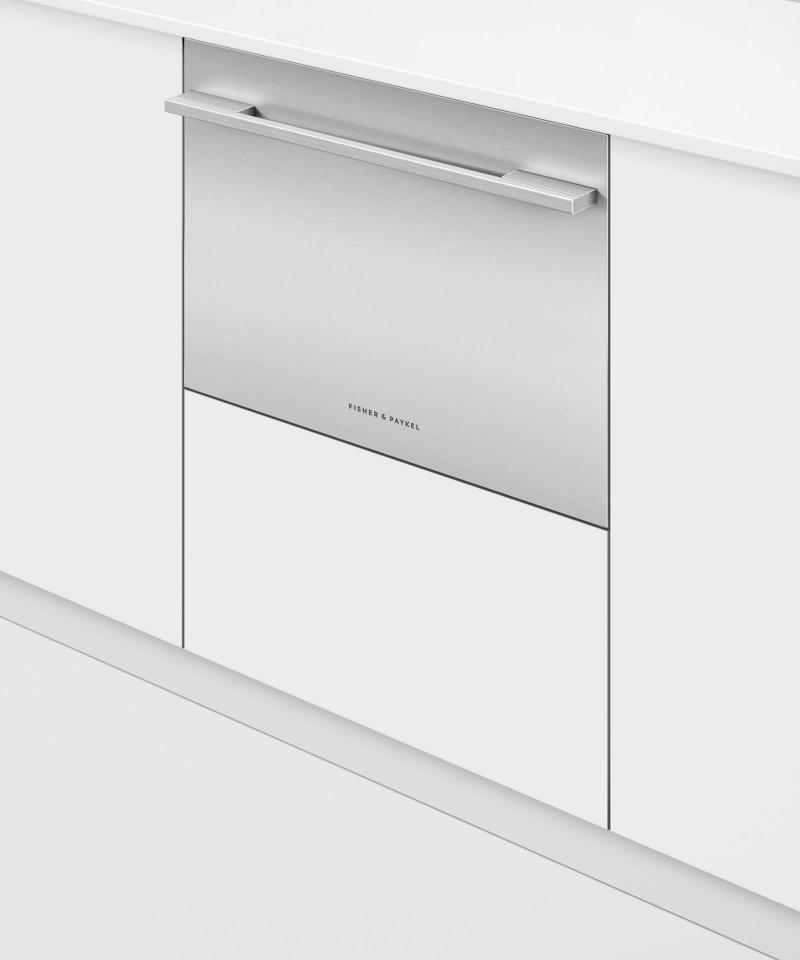

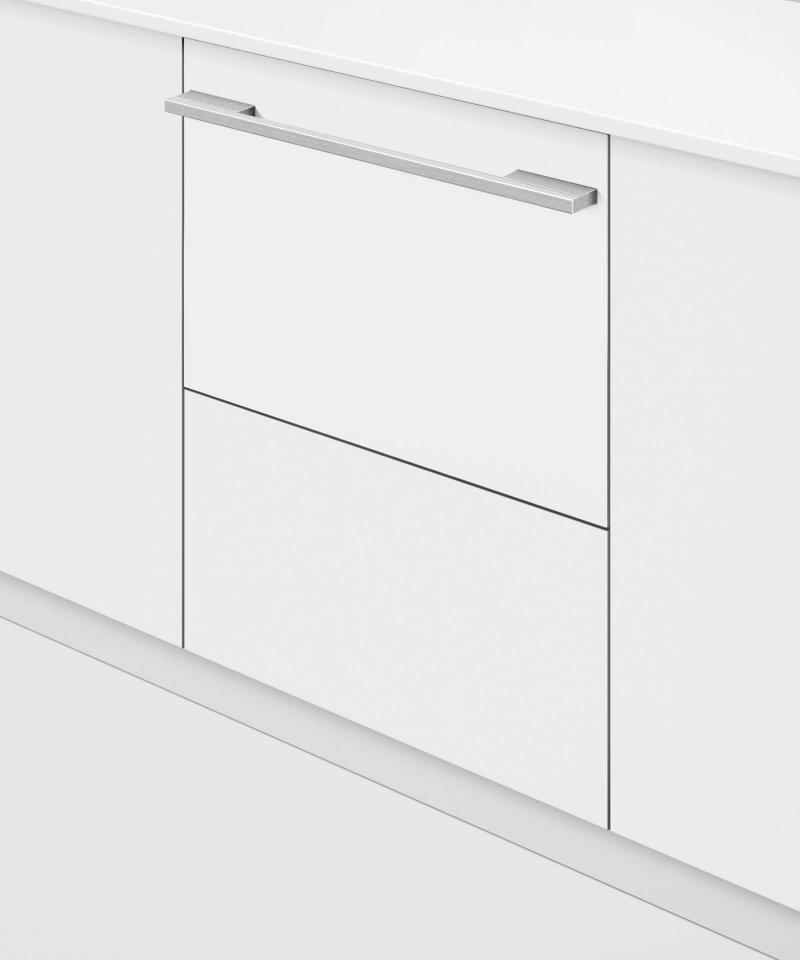

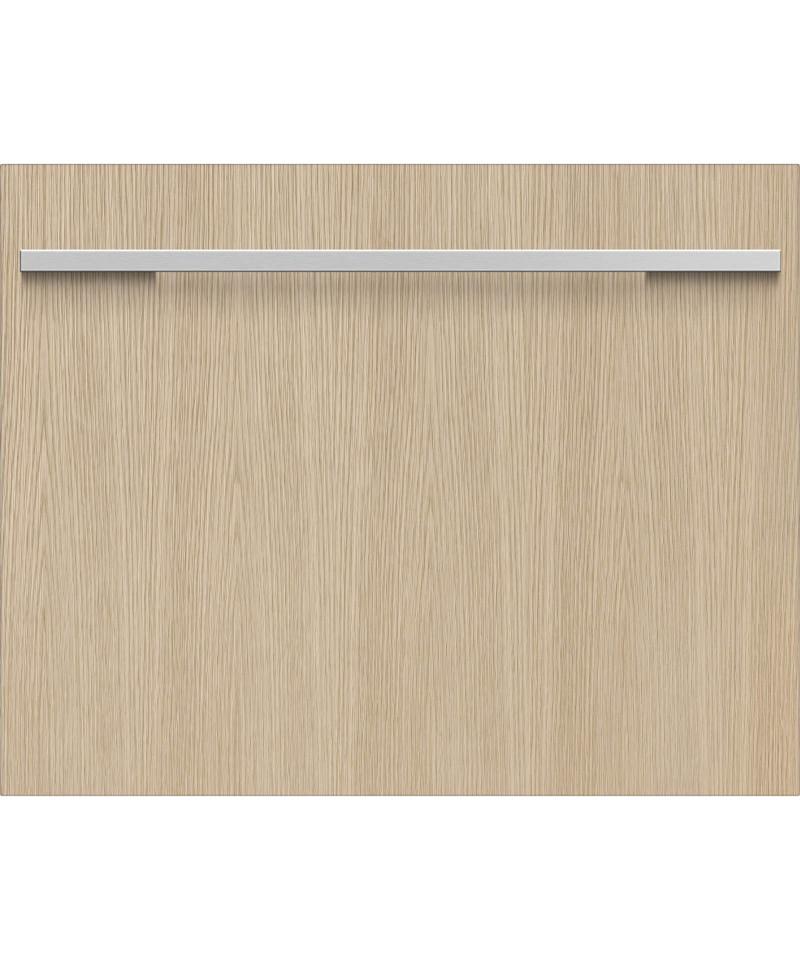

This Fisher & Paykel Single DishDrawer Dishwasher is integrated into your kitchen, has extra height for taller dishes and built-in water softener.
Ease of use
DishDrawer Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
Quick, Sanitize and Extra Dry options
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
Knock to pause
Instead of needing a remote control, these DishDrawer Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher which can be re-started again by using the start/play button.
Quiet performer
Running at a very low decibel rate, these DishDrawer Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
| Accessories | |
|---|---|
| Cutlery basket | Yes |
| Knife clip & Multipurpose clip | Yes |

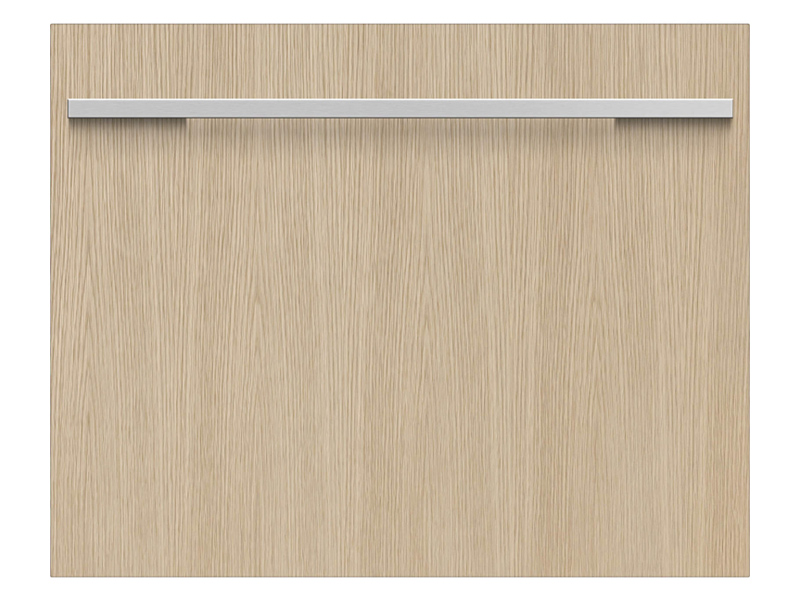

| Optional handle | 523664 Handle D3 brushed |
| Optional stainless steel door kit | 81263 Door DD24ST |
| Capacity and loading | |
| Accommodates round plates up to | 12.25 |
| Adjustable height, foldable cupracks | Yes |
| Fold down tines | Yes |
| Pitch adjustable tines | Yes |
| Place settings | 7 |
| Control | |
| Child lock | Yes |
| Electronic fault/Diagnostic indicator | Yes |
| End of cycle beeps | Yes |
| Energy saving delay start option up to 12 hrs | Yes |
| Internal wash selector | Yes |
| Knock to pause | Yes |
| Rinse aid indicator light | Yes |
| Features | |
| Built-in water softener | Yes |
| Fan assisted drying | Yes |
| Flow through detergent dispenser | Yes |
| Quiet operation | Yes |
| SmartDrive technology | Yes |
| Power Requirements | |
| AMP draw | 5A |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Wire | 3 |
| Warranty | |
| Warranty | Limited 2 Year Parts & Labor |
| WASH PROGRAMS | |
| Delicate | Yes |
| Eco | Yes |
| Extra Dry | Yes |
| Fast | Yes |
| Heavy | Yes |
| Medium | Yes |
| Quick | Yes |
| Rinse | Yes |
| Sanitize | Yes |
| Wash modifiers | 3 |
| Wash programs | 15 |
| Water connection | |
| Supplied hose to suit 3/8" (9mm) male compression fitting | Yes |
| Water connection | Max 140°F |
| Water pressure | 0.1 Mpa - 1 Mpa (14.5-145 psi) |
| Performance | |
| Energy star | Yes |
| Energy usage | 152kWh/year |
| Noise (dBa) on delicate cycle top drawer | 44 |
| Water usage | 1.79 gal/cycle |
| Style And Series | |
| Product Style | Integrated |
