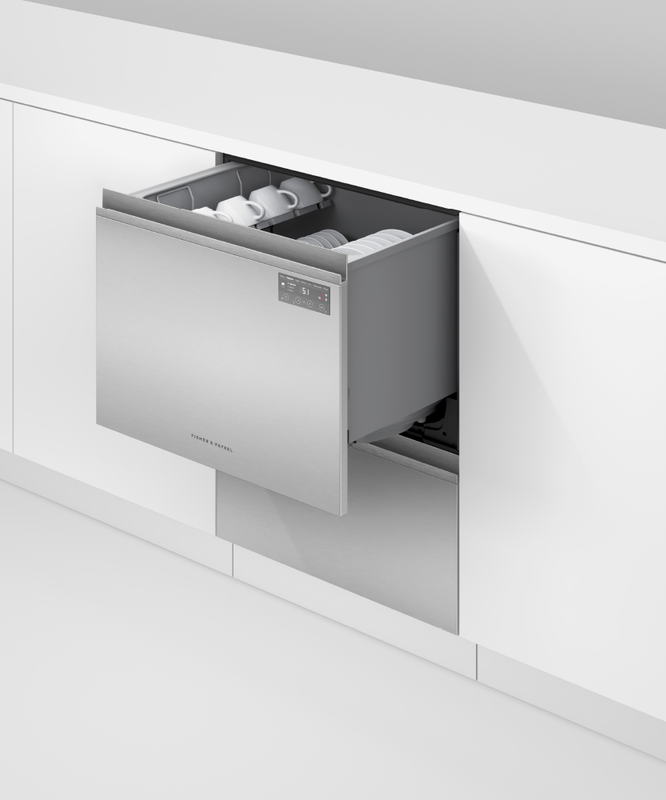

Wash one drawer while you load the other, with room in each drawer for full-size dinner plates.
Overview
Features and Benefits

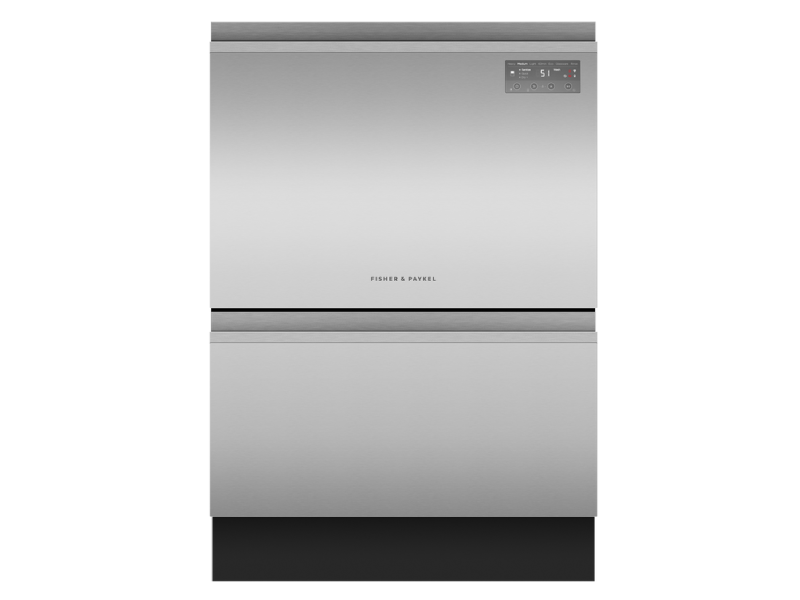

SEAMLESS FIT

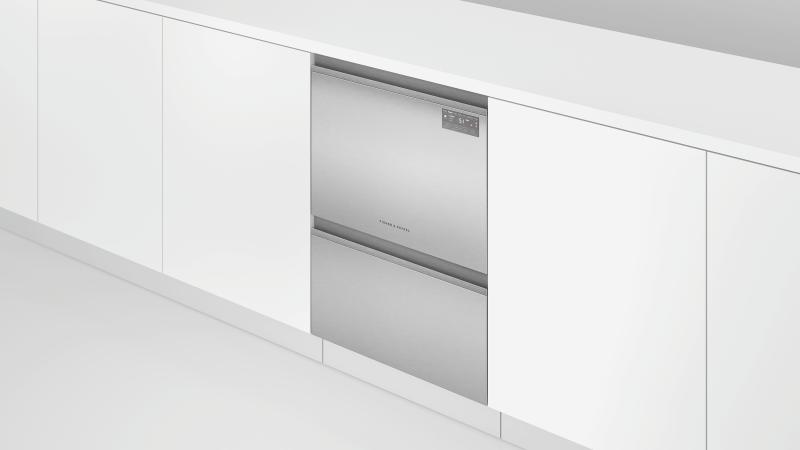

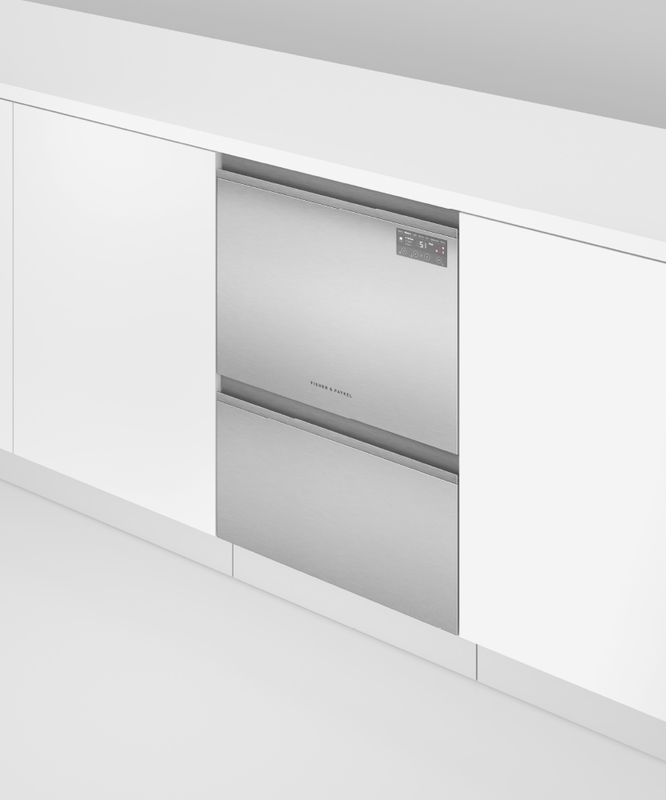

Our built-under DishDrawer™ Dishwashers are installed flush under your benchtop with the option of a custom kickstrip, ensuring minimal gaps. Designed to match the Fisher & Paykel family of kitchen appliances with recessed handles for a streamlined look.
EASE OF USE

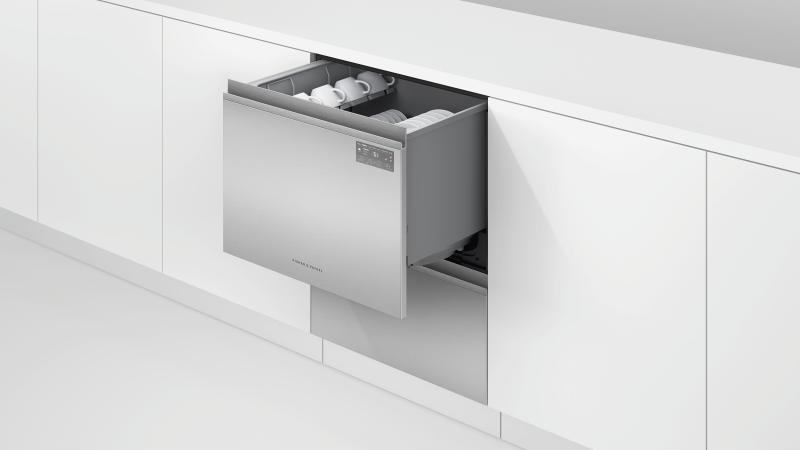

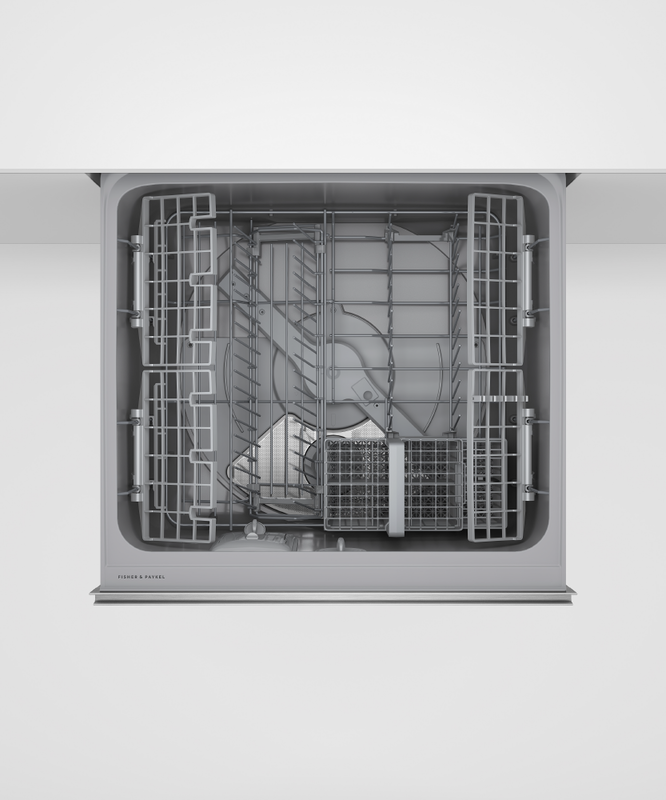

DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
QUICK, SANITIZE AND DRY OPTIONS
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection, killing 99.9% of bacteria in the final rinse. The Dry setting is perfect for plastic dishes.
TRUE HALF LOAD

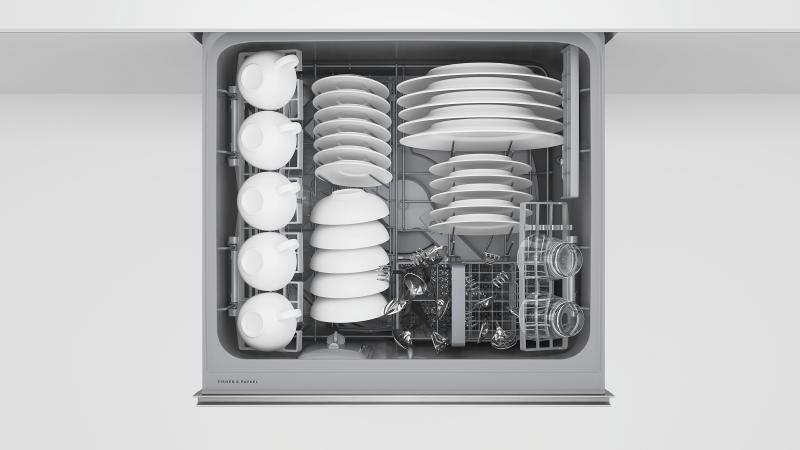

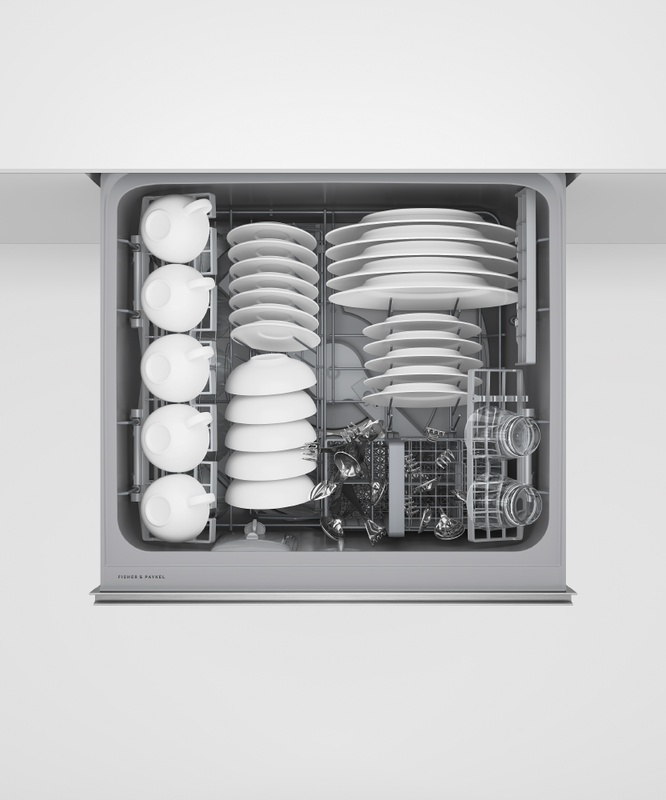

Each drawer holds a true half load for small, fast washing that won't waste water. Both drawers operate independently so two wash cycles can operate simultaneously to allow for varying loads.
INDEPENDENT WASH
With the ability to use both drawers independently and select different wash programs, the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
QUIET PERFORMER
Running at a very low decibel rating, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
EFFICIENT PERFORMANCE
Our DishDrawer™ Dishwashers use the energy they need without compromising on wash performance.
| Capacity and loading | |
|---|---|
| Place settings | 14 |
| Pitch adjustable tines | Yes |
| Fold down tines | Yes |
| Adjustable height, foldable cupracks | Yes |
| Accommodates round plates up to | 12.25 (top) 11 (bottom) |
| Accessories | |
| Knife clip and multipurpose clip | Yes |
| Cutlery basket | Yes |
| Capacity and loading | |
| Place settings per drawer | 7 |
| Consumption | |
| Energy usage | 265kWh/year |
| Water usage (per wash cycle) | 3.44 gal running both tubs |
| CONTROLS | |
| Child lock | Yes |
| Energy saving delay start option of up to 12 hours | Yes |
| Intuitive capacitive touch controls | Yes |
| Wi-Fi connectivity | Yes |
| Features | |
| Fan assisted drying | Yes |
| Flood protection | Yes |
| Flow through detergent dispenser | Yes |
| Motor type | BLDC |
| Quiet operation | Yes |
| SmartDrive™ technology | Yes |
| Performance | |
| Noise on standard cycle top drawer | 44dBA |
| Power Requirements | |
| Amperage | 9.6A |
| Supply frequency | 60Hz |
| Supply voltage | 110V |
| Product Dimensions | |
| Depth | 22 9⁄16 |
| Height | 34 - 36 3⁄8 |
| Width | 23 9⁄16 |
| Warranty | |
| Parts and labour | Limited 2 years |
| Wash Program Modifiers | |
| Dry + | Yes |
| Quick | Yes |
| Sanitize | Yes |
| Wash modifiers | 3 |
| WASH PROGRAMS | |
| 60 min | Yes |
| Eco | Yes |
| Glassware | Yes |
| Heavy | Yes |
| Light | Yes |
| Medium | Yes |
| Rinse | Yes |
| Wash programs | 7 |
| Water connection | |
| Supplied hose to suit 3/8" (9mm) male compression fitting | Yes |
| Water pressure | 30kPa - 1000 kPa |
| Water supply | 3⁄4 BSP (20mm) Connector Water Inlet Hose |
