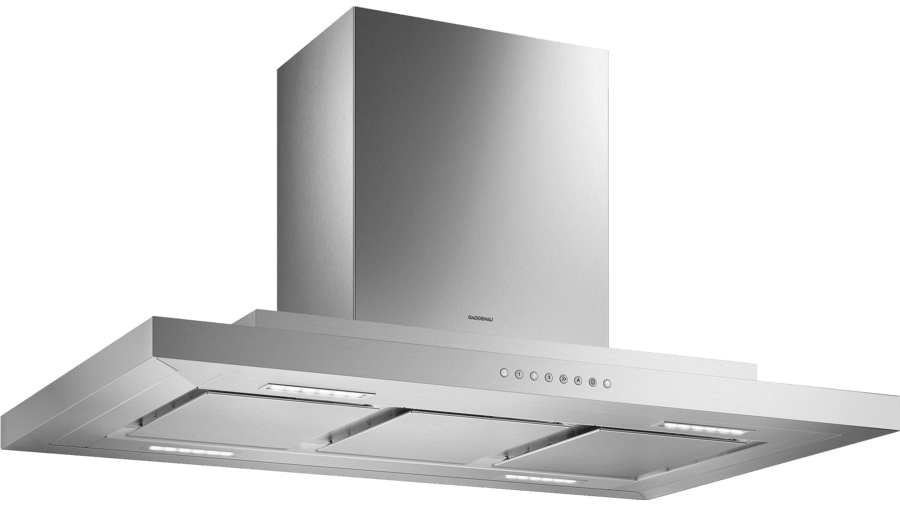

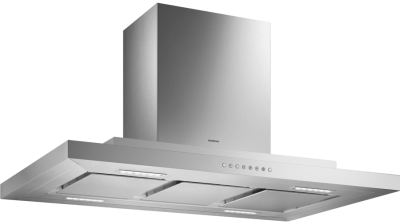

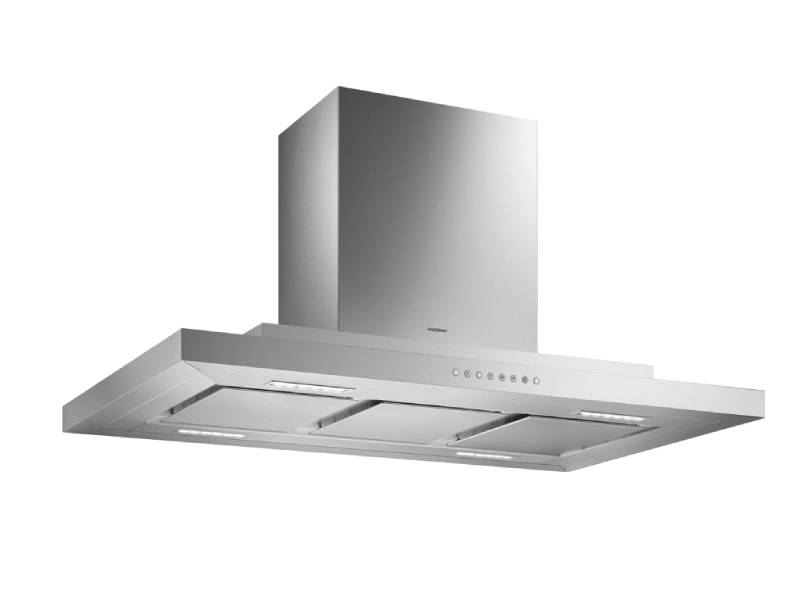

40" Gaggenau 200 Series Island Hood Stainless Steel - AI230700

• Classic Gaggenau design
• Highly efficient extraction of cooking vapours
• Low-noise fan
• Patented filter technology with high level of grease absorption
• Rim extraction filter with flat and easy-to-clean stainless steel underside

Additional Information

Output

• Performance and noise level, output level 3/Intensive:Air output according to EN 61591.Sound power level according to EN 60704-3.Sound pressure level according to EN 60704-2-13.Odour reduction for air recirculation in accordance with EN 61591.
• Air extraction:641 / 790 m³/h.67 / 71 dB (A) re 1 pW.52 / 56 dB (A) re 20 μPa.
• Air recirculation:535 / 574 m³/h.73 / 75 dB (A) re 1 pW.58 / 60 dB (A) re 20 μPa.
• Odour reduction air recirculation 95%.

Features

• 3 electronically controlled power levels and 1 intensive mode.
• Grease filter saturation indicator.
• Patented rim extraction filter, dishwasher-safe.
• Illuminance 770 lx.
• Airflow-optimised interior for efficient air circulation.
• The package includes an one-way flap.

Planning notes

• The package includes the two-part chimney with the dimensions from 654 mm to 834 mm. Individual planning solutions can be implemented using the special accessory chimney extension AD 200 322 or by shortening the lower edge of the inner chimney.
• Clearance above gas appliances min. 76 cm (more than total load gas 12 kW min. 70 cm).
• Clearance above electric appliances min. 76 cm.
• The air recirculation module with activated charcoal filter can be installed on the inner chimney.
• When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood's power supply line needs a suitable safety switch.

Connection

• Total connected load 430 W.
• Connecting cable 30" with plug.
