Key Features
Product Overview

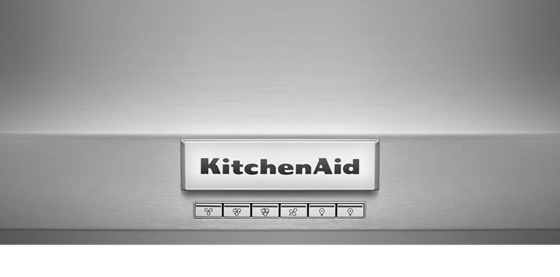

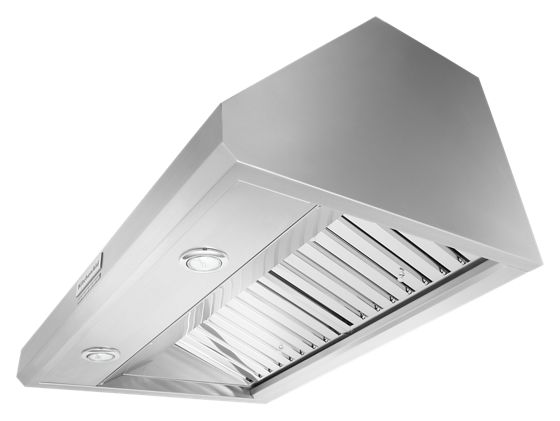

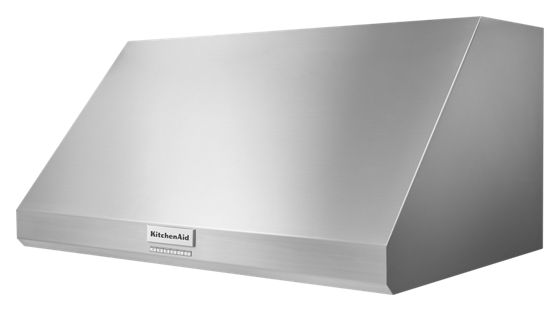

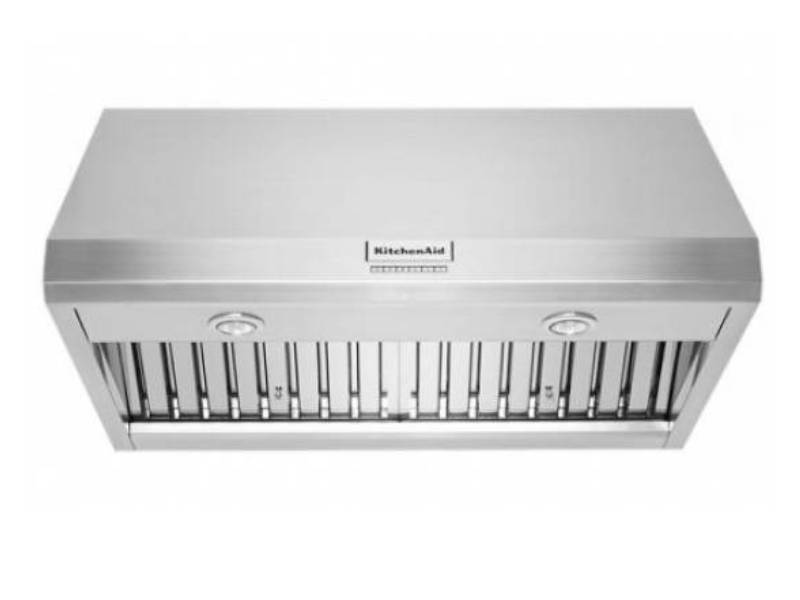

36" 585 or 1170 CFM Motor Class Commercial-Style Wall-Mount Canopy Range Hood
Equip your kitchen with a powerful 36-inch wall-mount canopy range hood designed to pair with 36-inch KitchenAid® Commercial-Style Ranges and Rangetops. A 90,000 BTU rating allows this vent hood to keep up with high-heat cooking on multiple burners at the same time. Four fan speeds let you choose the right setting for cooking adventures from simmering to searing.
Additional Features
Four-Speed Fan
Features low, medium, high and power boost settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
Power Boost Function
Assists high-heat cooking by activating maximum fan speed for five minutes to help quickly clear smoke and steam. This function turns on automatically if the hood's sensor detects high-heat cooking on multiple burners and can also be activated manually.
Requires a 585 or 1170 CFM Motor Class - Sold Separately
allowing you to customize a powerful ventilation system with your choice of commercial-style blowers (two blower options sold separately*).
90,000 BTU Rating
Pairs with KitchenAid® Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 90,000 BTU.
Automatic Turn On
Provides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.
Two LED Lights with Night Light Setting
Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
VENTILATION SYSTEM | |
---|---|
Duct Type | Round |
Exhaust Vent Location | Top |
Maximum Motor Exhaust Rating Cubic Feet per Minute | 1170 |
Electrical | |
Volts | 120 |
Amps | 3.86 (585 CFM)/7.6 (1170 CFM) |
Hz | 60 |
Power Cord Included | No |
Certifications | |
UL | Yes |
VENTILATION SYSTEM | |
Venting | Exterior |
Certifications | |
Energy Star | No |
Kosher Consumer Friendly | No |
VENTILATION SYSTEM | |
Sound Max Speed | 12-1/2 |
Sound Min Speed | 2-1/2 |
Vent Fan Location | Side |
Vent Material | Aluminum |
Number of Speeds | 4 |
Duct Outlet Size | 10 |
Duct Length | 13.000 |
Duct Direction | Vertical or Horizontal |
Blower Type | Centrifugal |
Auto Function | Auto On |
Blower Motor | Blower Motor to be Purchased Separately |
Features | |
Task Lighting | Yes |
DETAILS | |
Task Light Type | LED |
Features | |
Number of Task Light Settings | 1 |
Night Light Type | LED |
Number of Night Light Settings | 1 |
Dimensions | |
Canopy Height | 3048.00 cm, 12.0 in |
Cutout Depth | 4572.00 cm, 18.0 in |
Cutout Width | 9144.00 cm, 36.0 in |
Depth | 6350.00 cm, 25.0 in |
Height | 9144.00 cm, 36.0 in |
Net Weight | 12700576.00 kg, 28 lbs |
Description | |
Size | 36 |
Dimensions | |
Width | 9144.00 cm, 36.0 in |
Configuration and Overview | |
Installation Type | Wall-Mount Canopy |
CONTROLS | |
Control Location | Front |
Control Type | Push Button |
Features | |
Lighting Control Type | Push Button |
Night Light | Yes |
