Key Features
Product Overview

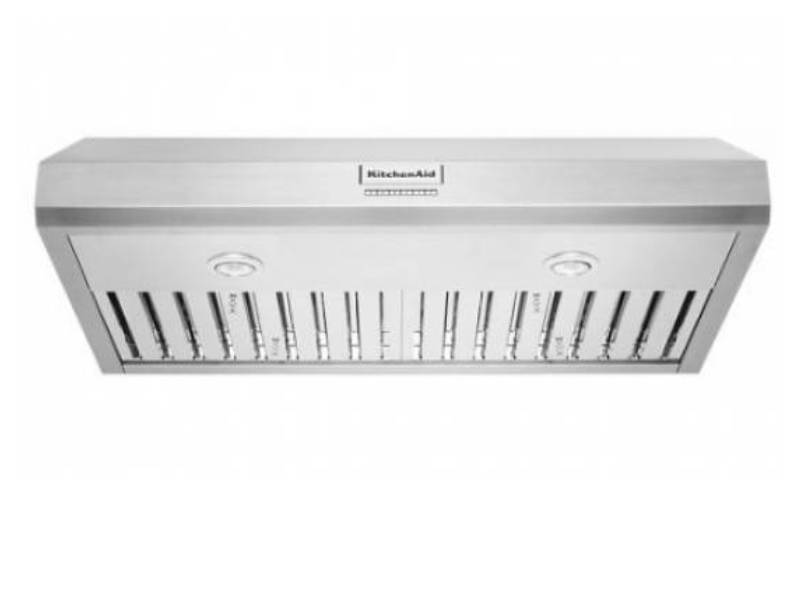

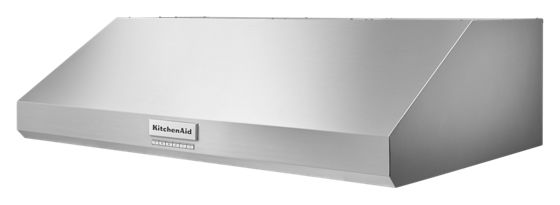

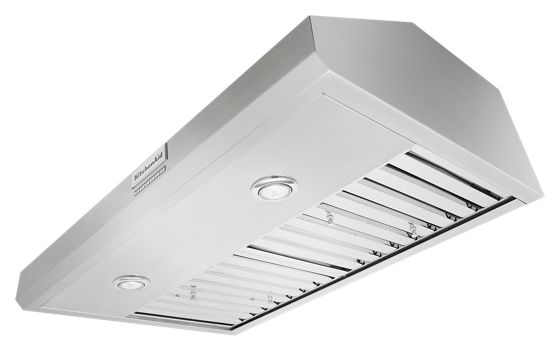

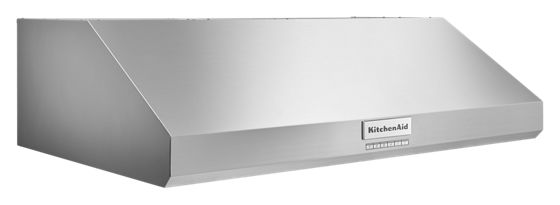

36" 585 CFM Motor Class Commercial-Style Under-Cabinet Range Hood System
Designed to pair with 36-inch KitchenAid® Commercial-Style Ranges and Rangetops, this 36-inch 585 CFM motor class under-cabinet range hood system equips your kitchen with powerful ventilation. A 90,000 BTU rating allows this vent hood to keep up with high-heat cooking on multiple burners. Four fan speeds let you choose the right setting for cooking adventures from simmering to searing.
585 CFM Motor Class Ventilation System
Equips your kitchen with the powerful ventilation necessary to match the high heat of commercial-style ranges and rangetops with comparable width and total burner outputs.
Additional Features
Four-Speed Fan
Features low, medium, high and power boost settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
Power Boost Function
Assists high-heat cooking by activating maximum fan speed for five minutes to help quickly clear smoke and steam. This function turns on automatically if the hood's sensor detects high-heat cooking on multiple burners and can also be activated manually.
90,000 BTU Rating
Pairs with KitchenAid® Commercial-Style Ranges, Rangetops and other models with total burner outputs up to 90,000 BTU.
Automatic Turn On
Provides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.
Two LED Lights with Night Light Setting
Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
Removable Stainless Steel Baffle Filters
Help capture the grease, steam and odors of high-heat cooking. The stainless steel design adds to the hood's bold commercial-style look and the filters are removable for easy cleaning with soap and water.
Electrical | |
---|---|
Volts | 120 |
Amps | 3-4/5 |
Power Cord Included | No |
Hz | 60 |
Certifications | |
UL | Yes |
Kosher Consumer Friendly | No |
Electrical | |
Watts | 463 |
Certifications | |
Energy Star Qualified | No |
VENTILATION SYSTEM | |
Vent Material | Aluminum |
Venting | Exterior |
Vent Fan Location | Side |
Sound Max Speed | 8.0 |
Sound Min Speed | 2.00 |
Number of Speeds | 4 |
Maximum Motor Exhaust Rating Cubic Feet per Minute | 585 |
Exhaust Vent Location | Top |
Duct Type | Rectangular |
Duct Outlet Size | 3 1/4 x 10 |
Duct Direction | Vertical or Horizontal |
Blower Type | Centrifugal |
Blower Motor | Blower Motor Included |
Auto Function | Auto On |
DETAILS | |
Task Light Type | LED |
Features | |
Task Lighting | Yes |
Number of Task Light Settings | 1 |
Number of Night Light Settings | 1 |
Night Light Type | LED |
Dimensions | |
Canopy Height | 2540.00 cm, 10.0 in |
Cutout Height | 2540.00 cm, 10.0 in |
Cutout Width | 9144.00 cm, 36.0 in |
Depth | 5842.00 cm, 23.0 in |
Maximum Height | 9144.00 cm, 36.0 in |
Net Weight | 22679600.00 kg, 50 lbs |
Width | 9144.00 cm, 36.0 in |
Description | |
Size | 36 |
Configuration and Overview | |
Hood Type | Under Cabinet |
CONTROLS | |
Control Location | Front |
Control Type | Push Button |
Features | |
Lighting Control Type | Push Button |
Night Light | Yes |
