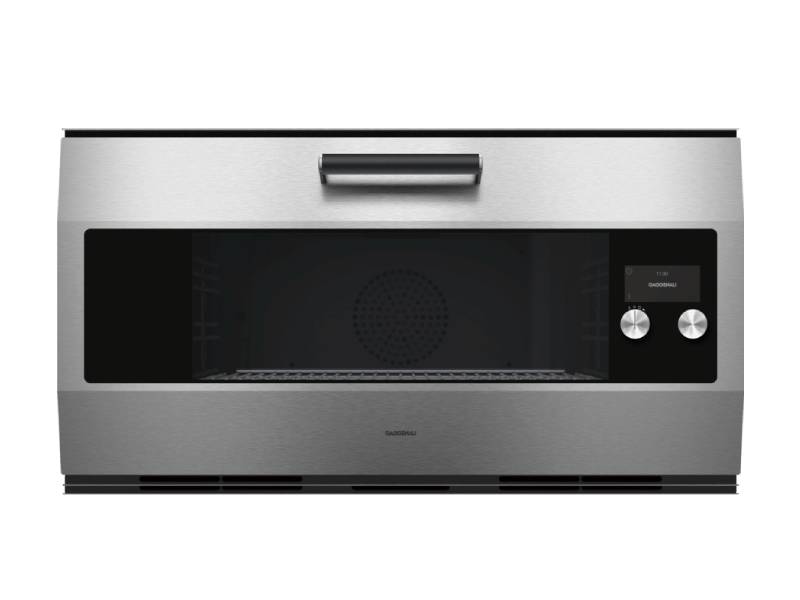

36" Gaggenau Single Oven Stainless Steel - EB333611

• One-piece front-hinged door with 3 mm precision crafted stainless steel front door panel
• Soft door opening and closing system
• Diagonally positioned light sources for optimal interior lighting
• Pyrolytic self-cleaning system
• Universal heating system with 17 heating methods, with core temperature probe, rotisserie spit and baking stone operation

Additional information

Cooking modes

• Convection. Economy convection.. Top + bottom heat. Top + 1/3 bottom heat. Top heat. 1/3 top + bottom heat. Bottom heat. Convection + bottom heat. Convection + 1/3 bottom heat. Convection broiling.. Broiling. Compact grill. Baking stone operation. Roaster function. Dough proofing. Defrosting. Keeping warm.

Operation

• Rotary knob and TFT touch display operation.
• Clear text display in 25 languages.
• Option to save 50 individual recipes (incl. core temperature probe)
• Personalization of automatic programs.
• Information key with use indicators.
• Front-hinged door with 90° door opening angle.

Features

• Three-point core temperature prove with automatic shut-off and estimation of cooking time.
• Automatic programs.
• Rotisserie spit.
• Baking stone outlet.
• Actual temperature display.
• Fast heating setting.
• Timer functions: cooking time, switch-off time, short-term timer, stopwatch.
• 60 W halogen light on the top.
• 2 x 10 W halogen light on the side.
• Enamelled side shelf supports with 3 tray levels, pyrolysis-safe.
• Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi.
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

Safety

• Thermally insulated door with quintuple glazing.
• Child lock.
• Safety shut-off.
• Cooled housing with temperature protection.

Cleaning

• Pyrolytic self-cleaning.
• Gaggenau Clean-Enamel.
• Heated air cleaning catalyst.

Planning notes

• The door panel surface of the appliance extends 1 ⁹∕₁₆" (40 mm) from the cabinet front.
• The outer edge of the door handle extends 3 ⁹∕₁₆" (90 mm) from the cabinet front.
• For installation underneath cooktops: Distance between the underside of the cooktop and the top edge of the oven cavity: min. 9/16". The planning notes for the cooktops (particularly regarding ventilation, gas/ electric connection) must be taken into account.
• To achieve the 21 ⅝" (550 mm) installation depth, the connection cable needs to follow the slanted edge on the corner of the housing.
• Plan a power outlet outside of the cut-out niche.
• The LAN port can be found at the back on the upper left side.

Rating

• Total rating 5.9 KW.
• Total Amps: 25 A.
• 208 / 220 - 240 V / 60 Hz.
• Connection cable 47 1/4" without plug.
• Plan for a LAN cable.
