Viking VECU53616BSB

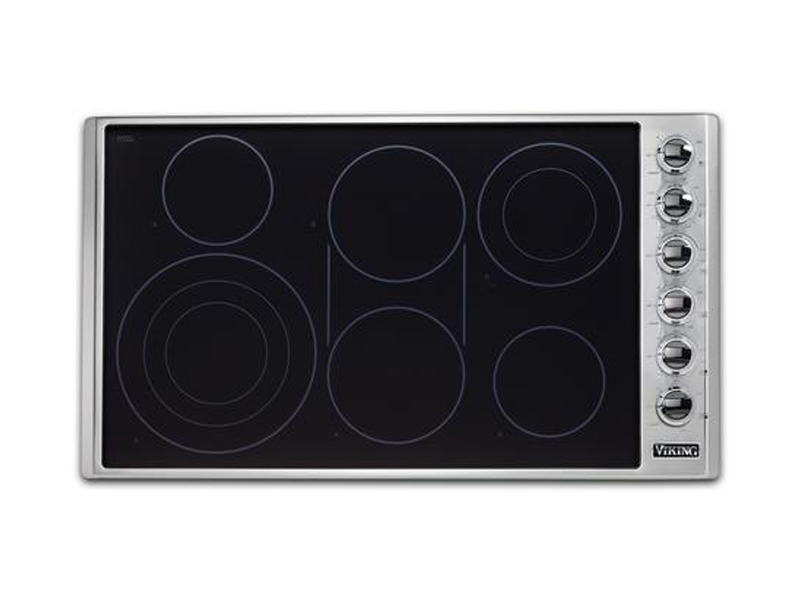

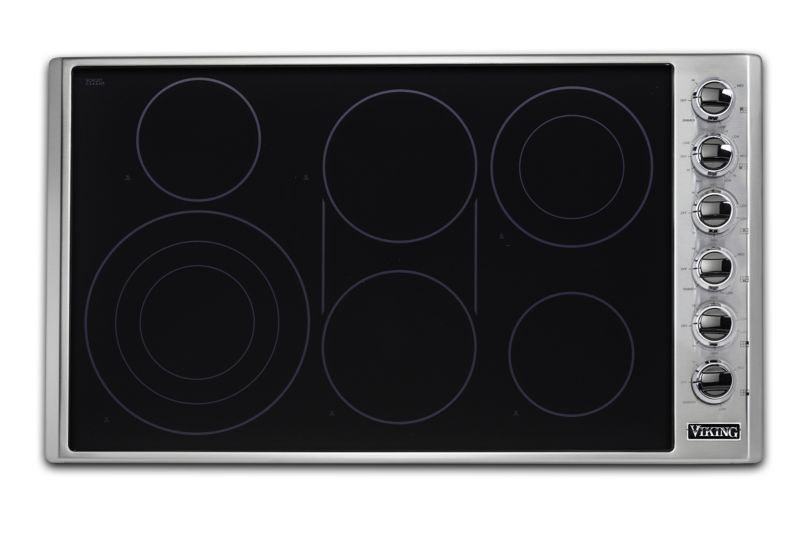

36" Viking Electric Radiant Cooktop - VECU53616BSB


36" Viking Electric Radiant Cooktop - VECU53616BSB
36" Viking Electric Radiant Cooktop - VECU53616BSB
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Best Brand Appliance offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.


Toronto:   (416) 901-6383
Vaughan: (905) 264-3137
Oakville/Burlington: (905) 592-0269


Literature

Features

QuickCook Surface Elements

QuickCook Surface Infared Elements with ribbon technology reach full power in three seconds and provide fast technology with nearly all cookware.

Versatile Cooking Space

Multiple cooking zones including a 12" 3,200 watt triple element provide space and power options for most cookware.

Bridge Element

Bridge element connects front and rear elements to create a continuous heated surface for oversized cookware or optional griddle accessory.

Glass Ceramic Surface

Durable, wear resistant glass ceramic surface and laser-etched graphics withstand the rigors of regular cleaning.

Details

Commercial-Type Cooking Power

  • Exclusive BlackChrome Knobs ship standard
  • QuickCook Surface Infrared Elements with ribbon technology reach full power in three seconds and provide fast cooking with nearly all cookware
  • Up to 10 cooking zones including a 12" 3,200 watt triple element provide space and power options for most cookware
  • Bridge element connects front and rear elements to create a continuous heated surface for oversized cookware or optional griddle accessory
  • Wide range of surface element sizes and wattages
    • Left front - 12" triple element – 1,100 W/ 1,000 W/ 1,100 W
    • Left rear – 6 ½ " element - 1,200 W
    • Center front - 8 1/2" element - 1,800 W
    • Center rear - 8 1/2" element  - 1,800 W
    • Right front - 6 ½ " element - 1,200 W
    • Right rear - 8 1/2" dual element - 1,000 W/ 1,000 W
    • Bridge element – 800W
  • Infrared energy transfer provides fast cooking, regardless of type of cookware used

Easy Operation and Cleanup

  • Child proof, push-to-turn metal knobs for safe use
  • Element lights indicate hot surfaces and active elements
  • Durable, wear-resistant glass ceramic surface and laser-etched graphics withstand the rigors of regular cleaning
  • Removable knobs for quick simple cleaning

Replaces Most Ordinary Cooktops

  • Overall/burner box dimensions designed to fit the majority of similarly sized cooktop cutouts

Exclusive Finishes

  • Available in Stainless Steel/Black (SB), featuring black glass and stainless steel knobs

Model Number

  • VECU5361-6B - 36" wide cooktop
Specifications
Surface Element Rating Right front Right rear Center front Center rear Left front Left rear Bridge6.5” (16.5 cm) - 1,200 watt 8.5” (21.6 cm) dual - 1,000 watt/1,000 watt 8.5” (21.6 cm) - 1,800 watt 8.5” (21.6 cm) - 1,800 watt 12” (30.5 cm) triple - 1,100 watt/1,000 watt/1,100 watt 6.5” (16.5 cm) - 1,200 watt 800 watt
Maximum Amp Usage 240V—45.0 amps (10.8 kW), 208V—38.9 amps (8.1 kW)
Electrical Requirements 240-208/120 VAC; 50/60Hz; factory-installed 4 ft. (121.9 cm) flexible steel conduit 3-wire conduit with a No. 10 ground wire; located on the right rear corner of unit
Cutout Depth 19-1/4” (48.9 cm) minimum to 19-3/4” (50.2 cm) maximum
Cutout Width34-7/8” (88.6 cm) minimum to 35-1/8” (89.2 cm) maximum
Overall Depth from rear 21” (53.3 cm)
Overall Height from bottom, To top of knobs, To top of cooking surface, To bottom edge of frame6-1/8” (15.6 cm), 4-7/8” (12.4 cm), 4” (10.2 cm
Overall Width36-3/4” (93.3 cm)
Approximate Shipping Weight53 lb. (24.1 kg)
