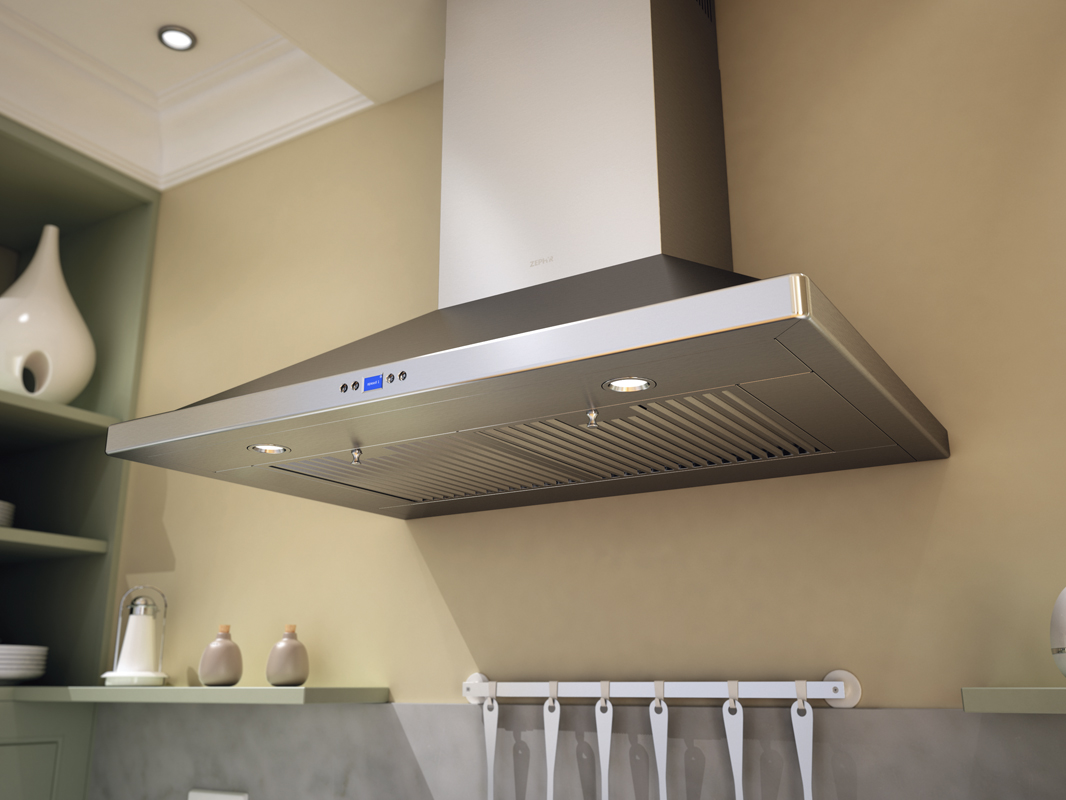

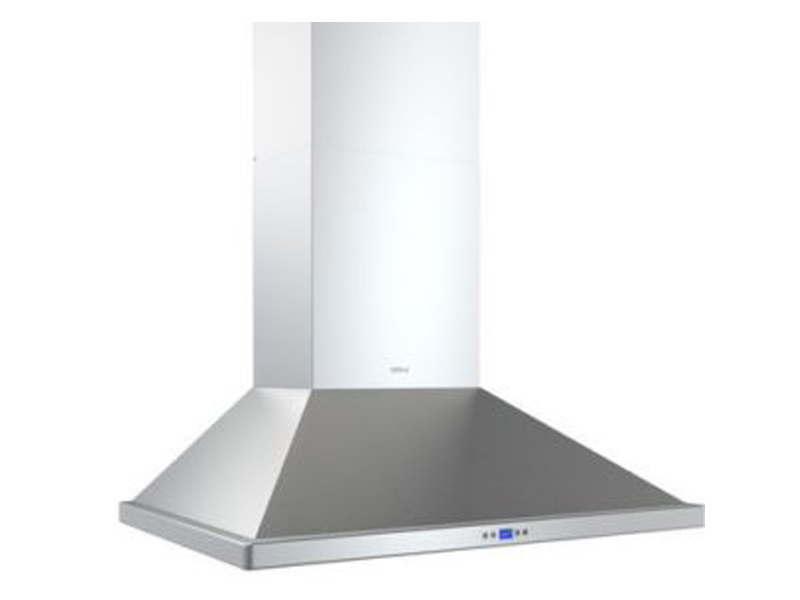

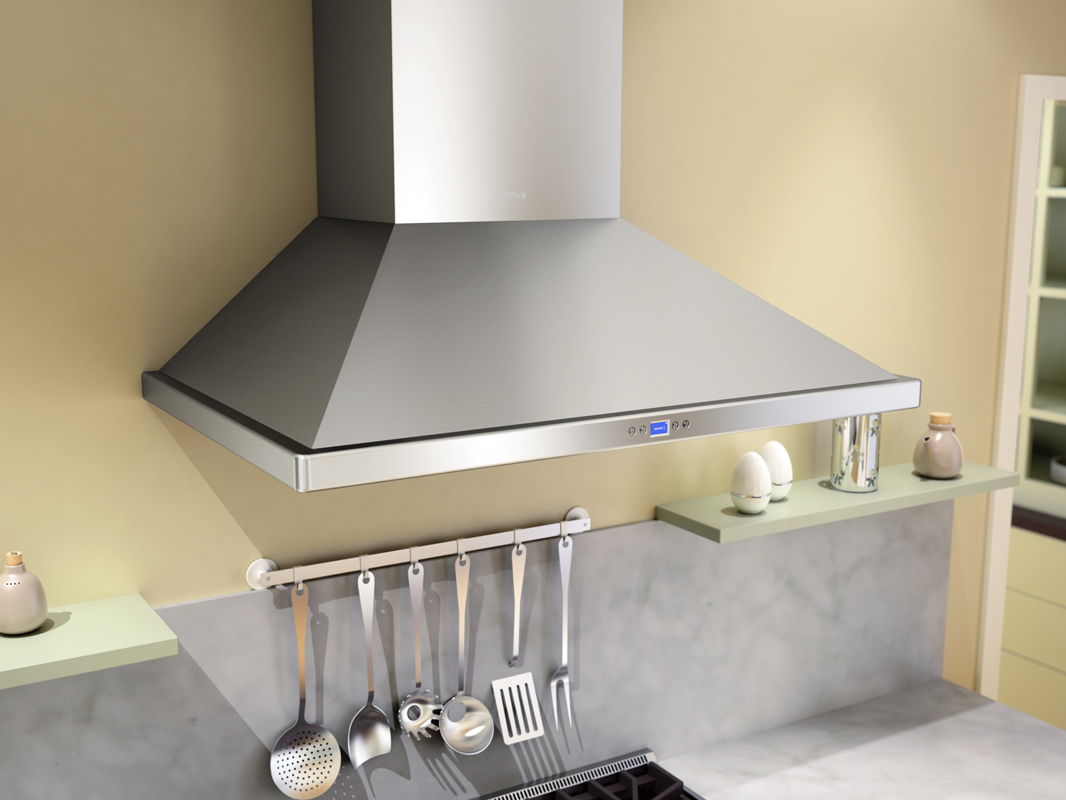

A timeless and classic design, Venezia’s formidable pyramid design now includes baffle filters and Zephyr’s DCBL Suppression System® elevating this ageless range hood to unparalleled levels of performance. With directional Bloom™ HD LED light bulbs, Venezia’s 24-inch deep capture area is fully illuminated with warm halogen-caliber light, while remaining cool to the touch. Now available with an optional wireless remote control.
FEATURES
| Specifications | |
|---|---|
| Size | 30” |
| Blower CFM (Min. - Max.) | 250 - 715 |
| Sones (Min. - Max.) | 0.8 - 5.8 |
| ACT 590 CFM (Min. - Max.) | 250 - 590 |
| ACT 590 Sones (Min. - Max.) | 0.8 - 4.5 |
| ACT 390 CFM (Min. - Max.) | 250 - 390 |
| ACT 390 Sones (Min. - Max.) | 0.8 - 3 |
| ACT 290 CFM (Min. - Max.) | 250 - 290 |
| ACT 290 Sones (Min. - Max.) | 0.8 - 1.2 |
| Features | |
| DCBL Suppression System® | Yes |
| ACT™ Technology | Yes |
| Controls | Electronic LCD |
| Speed Levels | 5 + Burst |
| Auto Delay-Off | Yes |
| Directional Lighting | Bloom™ HD LED, 6W x2 |
| Dual-Level Lighting | Yes |
| Filters | Baffle x2 |
| Recirculating Option | Yes |
| Extension Duct Cover Option | Yes, Up to 12’ Ceiling |
| ADA Compliant | Yes (with remote accessory) |
| DUCT SPECIFICATIONS | |
| Vertical Internal Blower | 8” Round |
| Horizontal Internal Blower | NA |
| AC POWER | 120V, 60Hz at Max. 4A |
| OPTIONAL ACCESSORIES | |
| Wireless Remote Control | RC-0001 |
| Recirculating Kit | ZRC-02VE |
| Extension Duct Cover | Z1C-01VE |
| Make-Up Air Kit | MUA008A |
| Specifications | |
| MOUNTING HEIGHT RANGE | 26” - 34” |
| WARRANTY | 3 years parts, 1 year labor |
