KitchenAid KOED530PPS

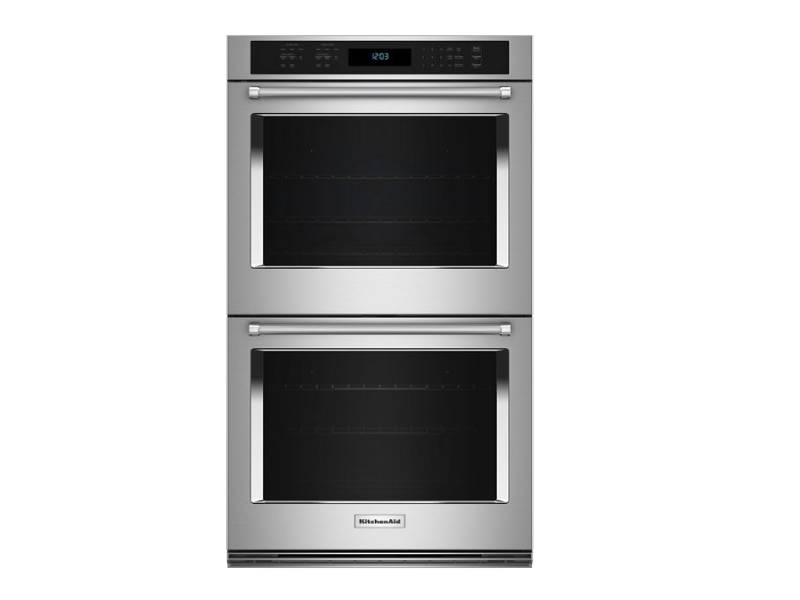

30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PPS

KitchenAid KOED530PWH
30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PWH
KitchenAid KOED530PSS
30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PSS
KitchenAid KOED530PBS
30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PBS
KitchenAid KOED530PPS
30" KitchenAid Double Wall Oven with Air Fry Mode - KOED530PPS

Literature

Key Features

  • Air Fry Mode
  • Dishwasher-Safe Air Fry Basket
  • Even-Heat™ True Convection
  • Integrated Meat Thermometer
  • EasyConvect™ Conversion System

Product Overview

KitchenAid® 30" Double Wall Oven with Air Fry Mode

Get the crisp you crave, right from your oven. This 30" Double Wall Oven with Air Fry Mode circulates hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like.*When compared to deep frying.



Air Fry Mode

Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.



Additional Features

Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.

EVEN-HEAT True Convection for consistent baking and roasting

Integrated Meat Thermometer

Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.

EasyConvect™ Conversion System

Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.

SatinGlide™ Roll-Out Extension Rack

Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.

4,000-Watt Broil Element

Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.

Oven Cavity Details
Installable Under CooktopNo, No, No
Hidden Bake ElementYes, Yes, Yes
Door RemovableYes, Yes, Yes
Door LockYes
Door Broil PositionClosed, Closed, Closed
Convection FunctionsBake, Broil, Convection Conversion, Bake, Broil, Convection Conversion, Bake, Broil, Convection Conversion
Convection Element TypeTrue Convection, True Convection, True Convection
Convection Element Power3200 Both W, 3200 Both W, 3200 Both W, 3200 Both W
Certifications
ADA CompliantNo, No, No
CULYes, Yes, Yes
Star K CertifiedStar K Certified, Star K Certified, Star K Certified
ULYes, Yes, Yes
Dimensions
Cutout Depth60.96 cm, 24 in
Cutout Height127.64 cm, 50-1/4 in
Cutout Width72.39 cm, 28-1/2 in
Depth68.90 cm, 27-1/8 in
Depth Closed Excluding Handles62.23 cm, 24-1/2 in
Depth Closed Including Handles68.90 cm, 27-1/8 in
Depth With Door Open 90 Degree118.74 cm, 46-3/4 in
Gross Weight126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 280 kg, 280 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 126-49/50 kg, 280 kg, 280 kg, 126-49/50 kg, 126-49/50 kg
Height129.06 cm, 50-13/16 in
Lower Oven Interior Depth48.26 cm, 19 in
Lower Oven Interior Height45.72 cm, 18 in
Lower Oven Interior Width63.50 cm, 25 in
Net Weight115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 254 kg, 254 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 115-193/1000 kg, 254 kg, 254 kg, 115-193/1000 kg, 115-193/1000 kg
Upper Oven Interior Depth48.26 cm, 19 in
Upper Oven Interior Height45.72 cm, 18 in
Upper Oven Interior Width63.50 cm, 25 in
Width75.56 cm, 29-3/4 in
DETAILS
Flush Installation ApprovedYes, Yes, Yes
Fuel TypeElectric, Electric, Electric
Oven TypeDouble, Double, Double
Power On Indicator LightYes
Oven Cavity Details
Bake Element Power2800W Both, 2800W Both, 2800W Both
Broiler Element Power4000W Both, 4000W Both, 4000W Both
Broiler LocationTop of Oven, Top of Oven, Top of Oven
Interior CoatingPorcelain, Porcelain, Porcelain
Light TypeHalogen, Halogen, Halogen
Lower Oven Number of Oven Lights2, 2, 2
Number of Bake Elements2, 2, 2
Number of Broil Elements1
Number of Lower Oven Racks3, 3, 3
Number of Lower Rack Guides6, 6, 6
Number of Upper Oven Racks3, 3, 3
Number of Upper Rack Guides6, 6, 6
Oven Convection Cooking SystemConvection Both, Convection Both, Convection Both
Cleaning TypeSelf-Cleaning, Self-Cleaning, Self-Cleaning
Self-Cleaning Oven RacksNo, No, No
Upper Oven Number of Oven Lights2, 2, 2
Smart Compatibility
ConnectivityNo, No, No
Works WithNo, No, No
Exterior Details
Door LockYes, Yes, Yes
Door TypeMetal & Glass, Metal & Glass, Metal & Glass
Oven Window SizeExtra Large, Extra Large, Extra Large
CONTROLS
Control TypeElectronic Touch, Electronic Touch, Electronic Touch
Display ColorWhite, White, White
DisplayDigital
Language ConversionEnglish/French/Spanish, English/French/Spanish, English/French/Spanish
Electrical
Power Cord IncludedNo
