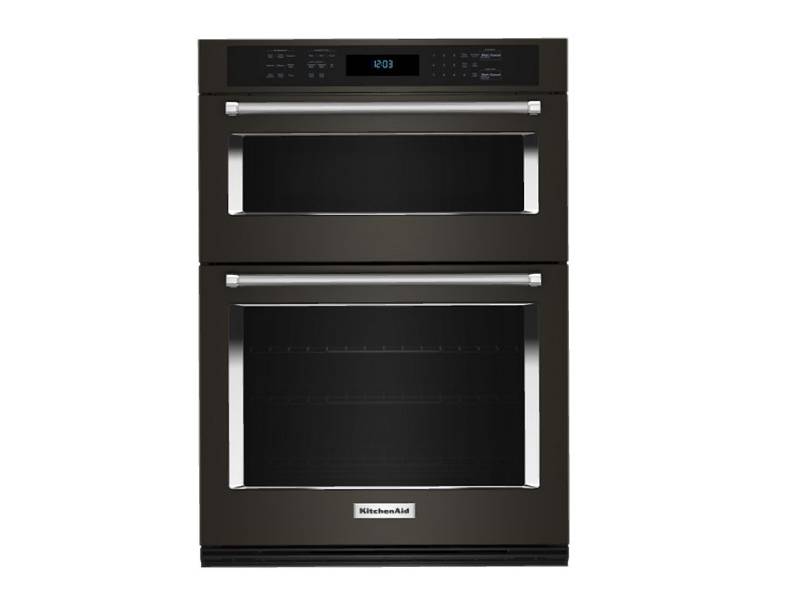

KitchenAid KOEC530PBS

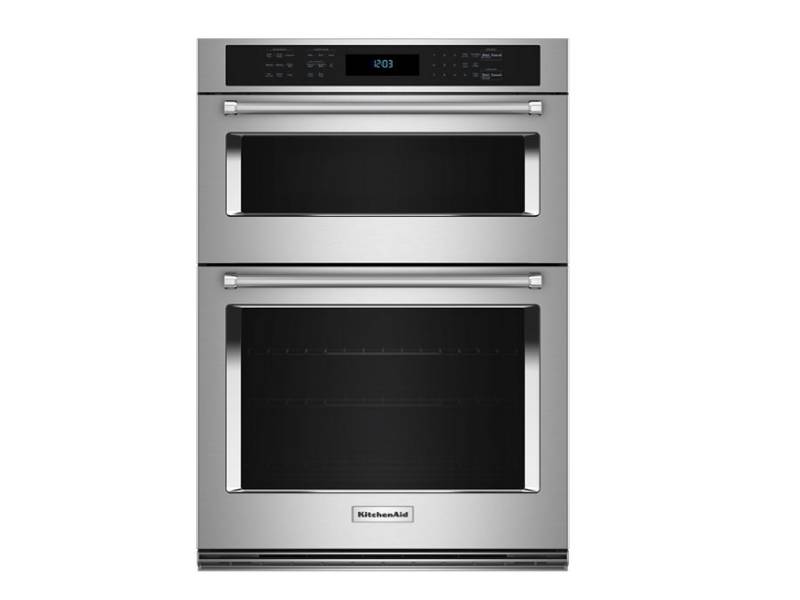

30" KitchenAid Combination Microwave Wall Oven with Air Fry Mode - KOEC530PBS

KitchenAid KOEC530PWH

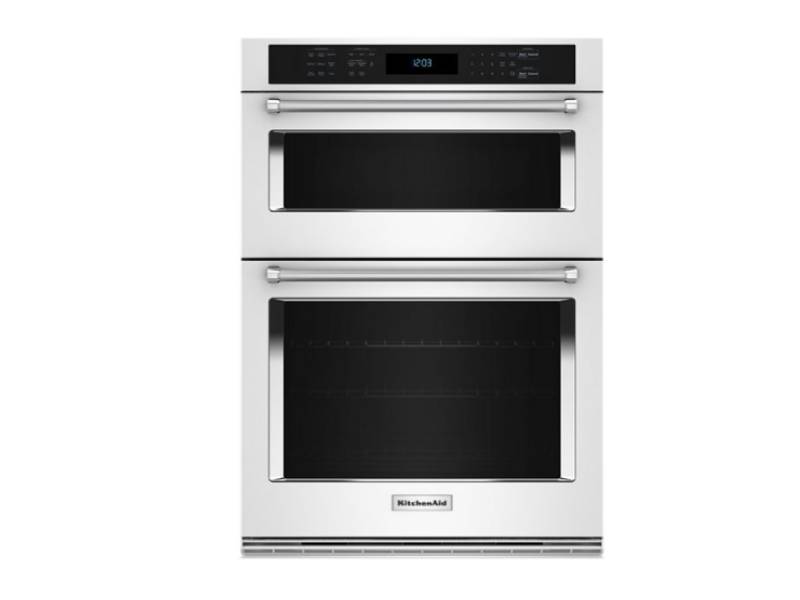

30" KitchenAid Combination Microwave Wall Oven with Air Fry Mode - KOEC530PWH
KitchenAid KOEC530PPS
30" KitchenAid Combination Microwave Wall Oven with Air Fry Mode - KOEC530PPS

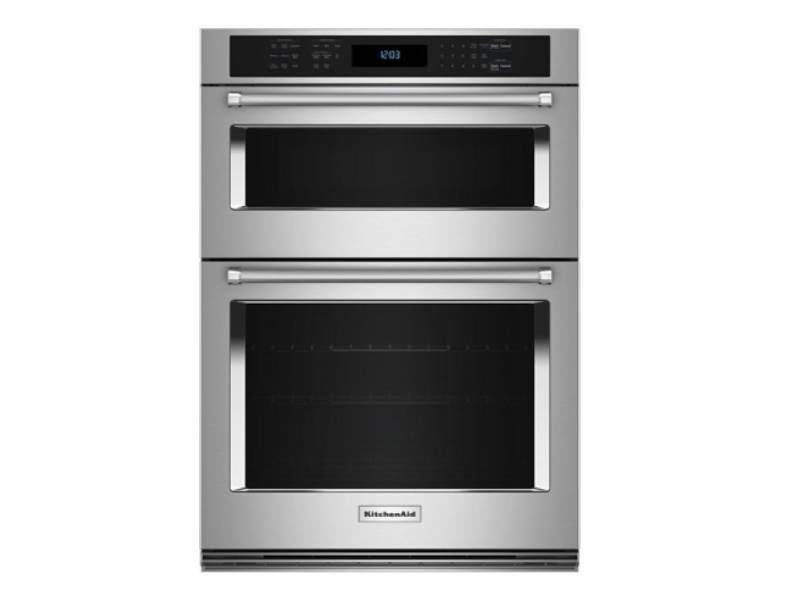

KitchenAid KOEC530PSS
30" KitchenAid Combination Microwave Wall Oven with Air Fry Mode - KOEC530PSS
KitchenAid KOEC530PBS
30" KitchenAid Combination Microwave Wall Oven with Air Fry Mode - KOEC530PBS

Literature

Key Features

  • Air Fry Mode
  • Dishwasher-Safe Air Fry Basket
  • Even-Heat™ True Convection
  • Integrated Meat Thermometer
  • Even-Heat™ Preheat

Product Overview

KitchenAid® 30" Combination Microwave Wall Oven with Air Fry Mode

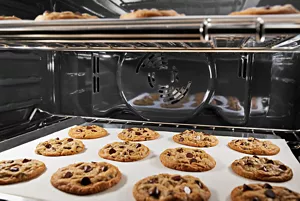

Get the crisp you crave, right from your oven. This 30" Combination Microwave Wall Oven with Air Fry Mode circulates hot air around the included basket to cook with less oil.* Microwave convection cooking turns the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.*When compared to deep frying.



Air Fry Mode

Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.



Even-Heat™ True Convection

Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.



Integrated Meat Thermometer

Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.

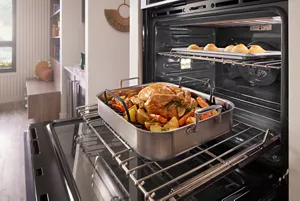

SatinGlide™ Roll-Out Extension Rack

Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.



Additional Features

Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.

Raises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.

Self-Close Doors

Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.

FIT System Limited Guarantee

Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.**On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified.

EasyConvect™ Conversion System

Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.

4,000-Watt Broil Element

Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.

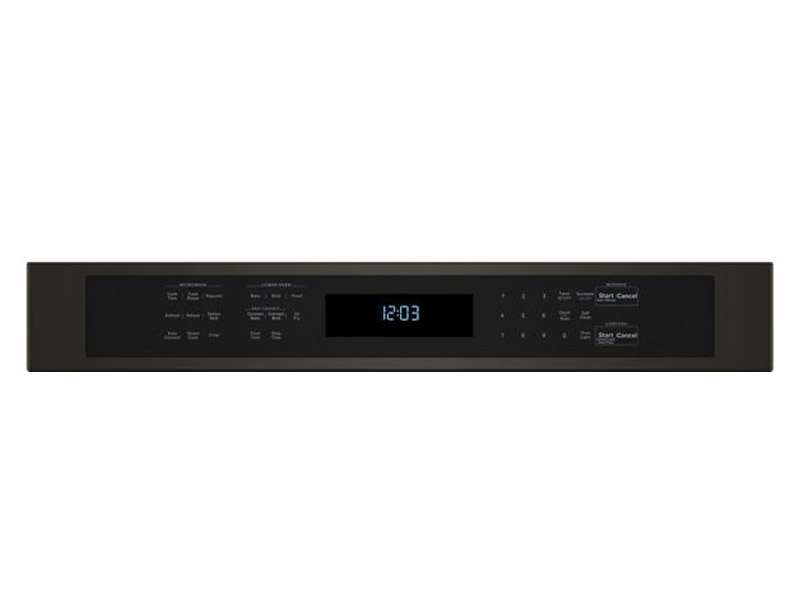

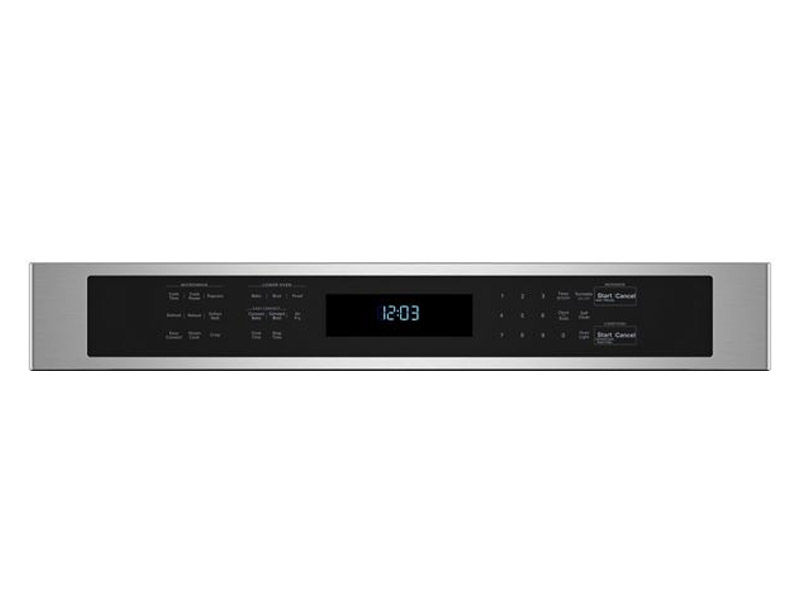

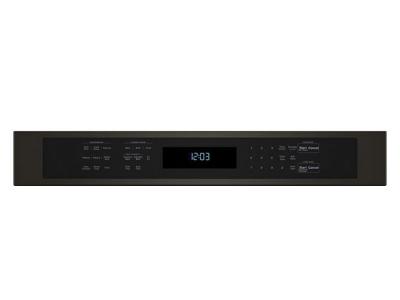

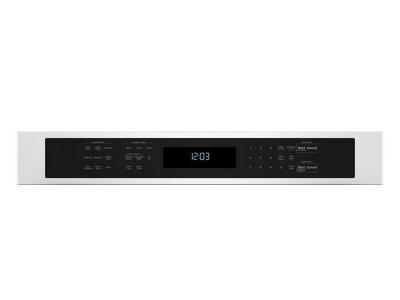

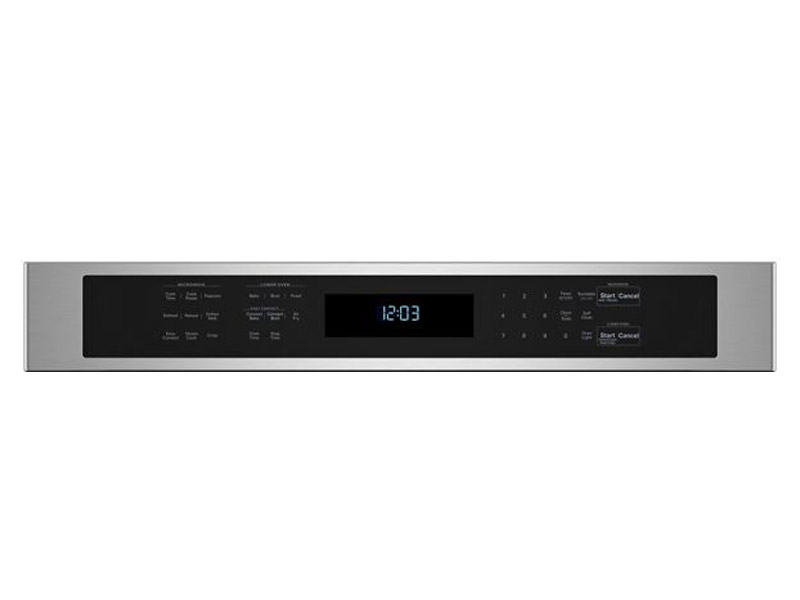

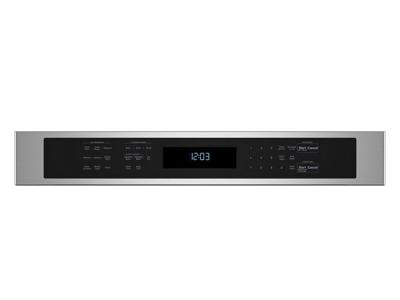

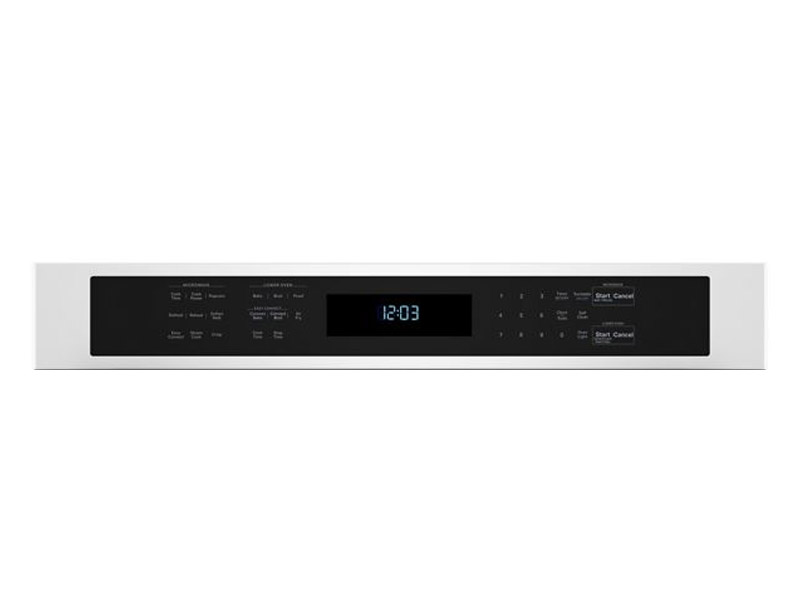

CONTROLS
Microwave SelectionsAdd A Minute, Control Lock, Convect, Cook, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time Cook, Timer, Add A Minute, Control Lock, Convect, Cook, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time Cook, Timer, Add A Minute, Control Lock, Convect, Cook, Cook Power, Cook Time, Crisp Pan, Defrost, Easy Convect, End of Cycle Signal, Off/Cancel, Popcorn, Reheat, Soften/Melt, Sound On/Off, Steam, Time Cook, Timer
DisplayDigital
Language ConversionEnglish/French/Spanish, English/French/Spanish, English/French/Spanish
Display ColorWhite, White, White
Control TypeElectronic Touch, Electronic Touch, Electronic Touch
Dimensions
Width75.56 cm, 29-3/4 in
Oven Interior Width63.50 cm, 25 in
Oven Interior Depth48.26 cm, 19 in
Oven Interior Height45.72 cm, 18 in
Oven Capacity141.50 l, 141.50 l, 141.50 l, 5 cu. ft., 5 cu. ft., 5 cu. ft.
Net Weight89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 198 kg, 198 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 89-7959/10000 kg, 198 kg, 198 kg, 89-7959/10000 kg, 89-7959/10000 kg
Certifications
Star K CertifiedStar K Certified, Star K Certified, Star K Certified
CULYes, Yes, Yes
ULYes, Yes, Yes
ADA CompliantNo, No, No
Exterior Details
Door LockYes, Yes, Yes
Door TypeMetal & Glass, Metal & Glass, Metal & Glass
Handle ColorStainless Steel, Stainless Steel, Stainless Steel
Handle MaterialMetal, Metal, Metal

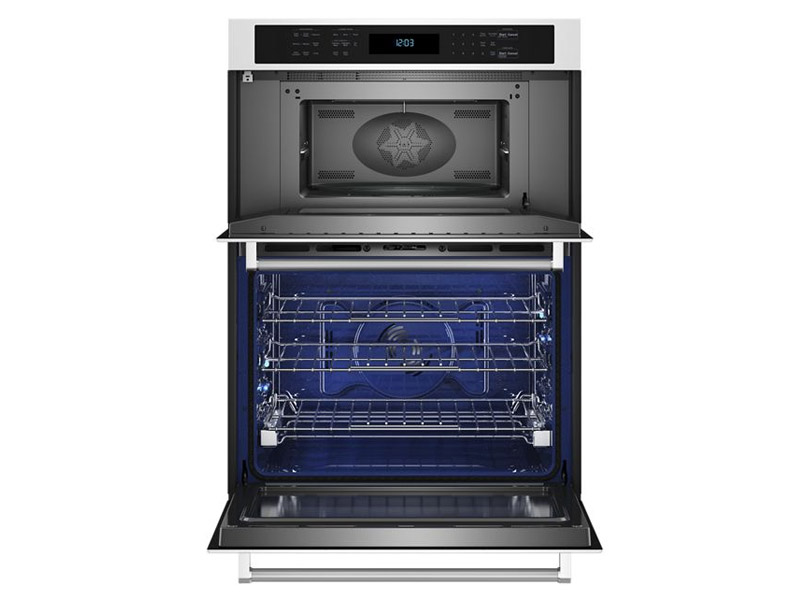

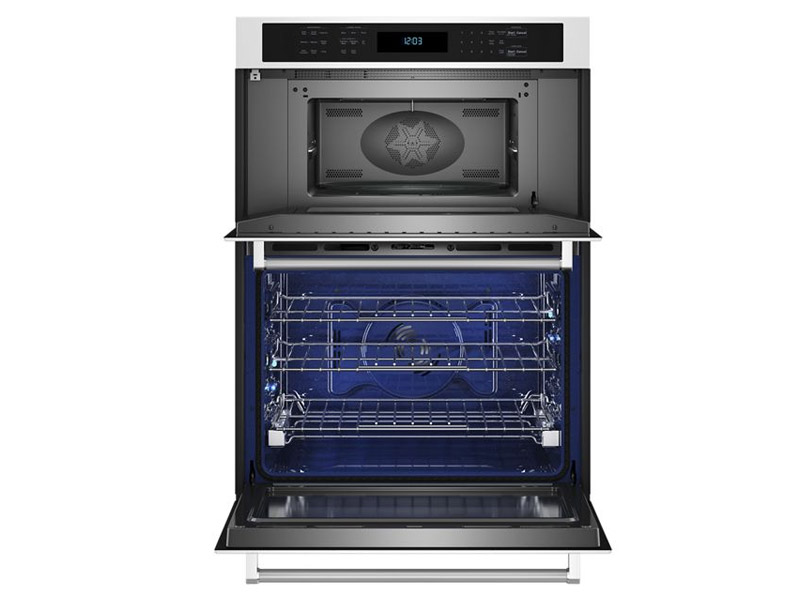

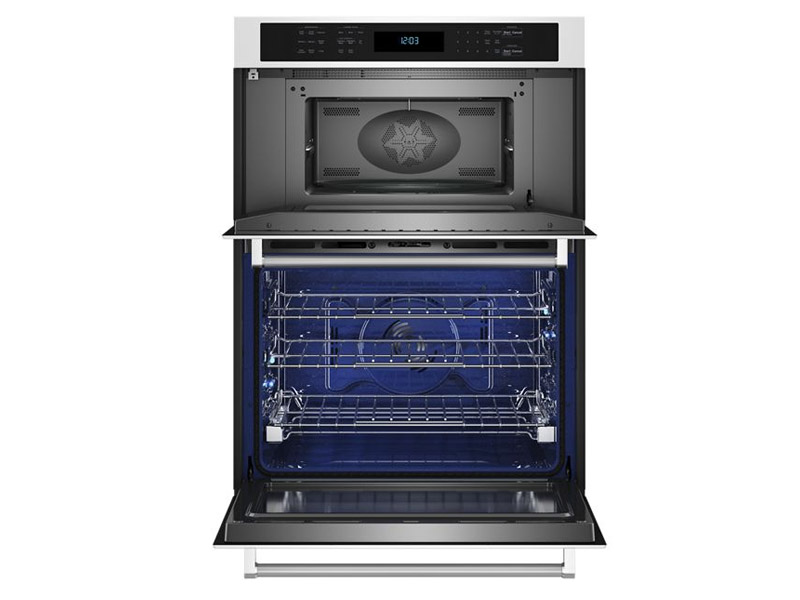

Oven Cavity Details
ConvectionYes, Yes, Yes
Broiler LocationTop of Oven, Top of Oven, Top of Oven
Oven Convection Cooking SystemTrue Convection, True Convection, True Convection
Convection Element Power3200 W, 3200 W, 3200 W, 3200 W
Bake Element Power2800W, 2800W, 2800W
Broiler Element Power4000W, 4000W, 4000W
Convection FunctionsBake, Broil, Convection Conversion, Bake, Broil, Convection Conversion, Bake, Broil, Convection Conversion
Cooking Power900 W, 900 W, 900 W, 900 W
Door Broil PositionClosed, Closed, Closed
Door LockYes
Hidden Bake ElementYes, Yes, Yes
Interior CoatingPorcelain, Porcelain, Porcelain
Number of Oven Lights2, 2, 2
Interior ColorBlue, Blue, Blue
Self-Cleaning Oven RacksNo, No, No
Oven Light TypeHalogen
Cleaning TypeSelf-Cleaning, Self-Cleaning, Self-Cleaning
Number of Rack Guides6, 6, 6
Oven Racks3, 3, 3
Dimensions
Cutout Depth60.96 cm, 24 in
Cutout Height104.94 cm, 41-313/1000 in
Cutout Width72.39 cm, 28-1/2 in
Depth68.90 cm, 27-1/8 in
Depth Closed Excluding Handles62.23 cm, 24-1/2 in
Depth Closed Including Handles68.90 cm, 27-1/8 in
Depth With Door Open 90 Degree118.74 cm, 46-3/4 in
Gross Weight99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 220 kg, 220 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 99-77/100 kg, 220 kg, 220 kg, 99-77/100 kg, 99-77/100 kg
Height107.95 cm, 42-1/2 in
DETAILS
Convection Power1,200 W, 1,200 W, 1,200 W, 1,200 W
Flush Installation ApprovedYes, Yes, Yes
Fuel TypeElectric, Electric, Electric
GrillYes, Yes, Yes
TurntableYes, Yes, Yes
Smart Compatibility
ConnectivityNo, No, No
Works WithNo, No, No
Microwave Details
Door ReleaseHandle, Handle, Handle
GrillYes
Grill Power1,600 W, 1,600 W, 1,600 W, 1,600 W
Microwave Capacity39.62 l, 39.62 l, 39.62 l, 1.4 cu. ft., 1.4 cu. ft., 1.4 cu. ft.
Microwave Interior Depth41.91 cm, 16-1/2 in
Microwave Interior Height20.96 cm, 8-1/4 in
Microwave Interior LightHalogen
Microwave Interior Width44.77 cm, 17-5/8 in
Sensor CookingYes - Microwave, Yes - Microwave, Yes - Microwave
Turntable Diameter Size35.88 cm, 14-1/8 in
Electrical
Power Cord IncludedNo
