Product Overview

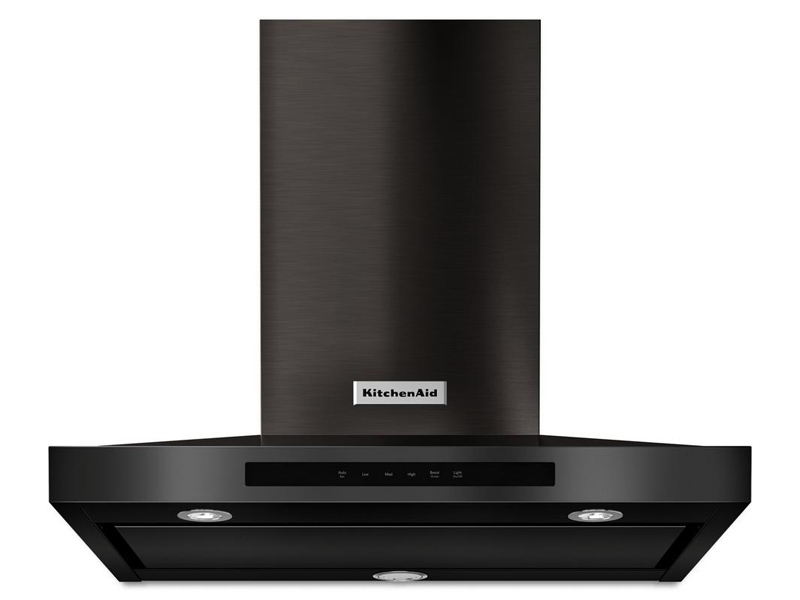

30" Wall-Mount, 3-Speed Canopy Hood
This 3-speed vent hood has power to effectively vent an output of up to 65K BTUs. Auto speed sensing keeps the vent at the proper fan speed by sensing the amount of heat coming from the cooktop. This 30-inch wall-mount canopy hood has both LED and halogen lights to brighten almost any work area.

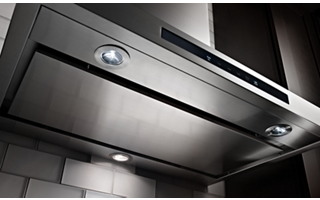

Perimeter Ventilation
Increases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.

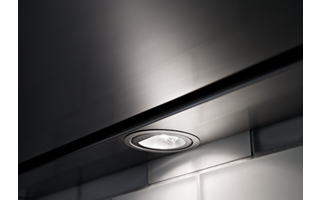

LED Task Lights
Provide extra lighting over the cooking surface to help in the cooking process.

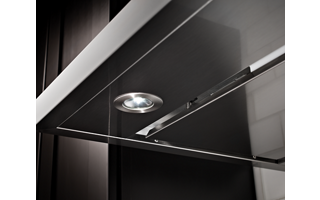

Halogen Night Lights
Enhances the style of the ventilation system by providing soft, accent lighting in the kitchen.

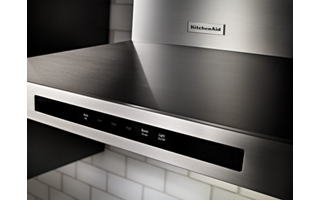

3-Speed Electronic Glass Touch Control with Boost Function (10 Min.)
Provides electronic operation with visual feedback on settings and selections. Enhances performance when using high-temperature cooking techniques by providing a timed, short burst of high-speed ventilation to effectively filter steam, grease, and odors from the air.
Additional Features
585 CFM/65K BTU Threshold
Allows installation over any KitchenAid regular 36- or 30-inch range or cooktop, and some commercial-style cooking surfaces with outputs up to 65K BTU.
Auto Speed Setting
Takes the guesswork out of protecting cabinets from steam, grease, and moisture by automatically adjusting fan speed to ventilation needs depending on the heat being produced.
Whisper Quiet® System @ 49 dBA (1.5 sones) at Low Speed
Ensures that the ventilation system operates at a quiet level so it can be used while entertaining. At maximum speed, sound level is 65 dBA (5.4 sones).
Dishwasher Safe Grease Filters
Filter reduces steam, grease, and odor to help avoid contact with ceilings and countertops. The design increases filtration by obstructing the path of vented air to help capture more steam, grease, and odors as they are drawn through the vent.
Easy In-line Conversion
Converts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.
VENTILATION SYSTEM | |
---|---|
Sound Min Speed dBA | 49-1/2 |
Sound Min Speed Sones | 1-1/2 |
Sound Max Speed Sound Max Speed dBA | 65.0 |
Sound Max Speed Sones | 5-2/5 |
Number of Speeds | 3 |
Filters | Dishwasher-Safe Grease Filters |
Duct Type | Round |
Duct Outlet Size | 6 |
Duct Direction | Vertical |
Blower Type | Centrifugal |
Auto Function | Auto On and Speed Adjust |
DETAILS | |
Task Lighting | Yes |
Task Light Type | LED |
Number of Task Light Settings | 1 |
Number of Night Light Settings | 1 |
Night Light Type | Halogen |
Night Light | Yes |
Configuration and Overview | |
UL | UL |
Size | 30 in |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Installation Type | Wall Mount |
Specification | |
Width | 30.0 in |
Height | 24-5/8 in |
Depth | 19-11/16 in |
