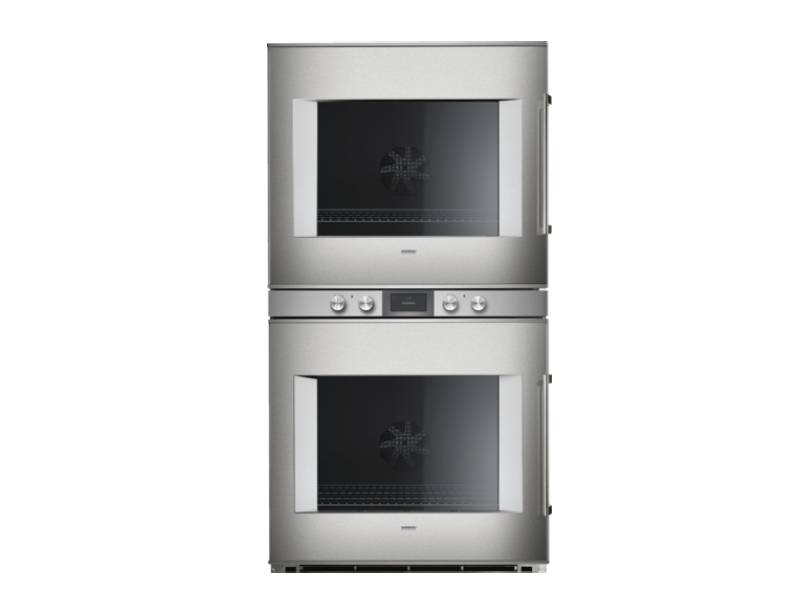

30" Gaggenau 400 series Double Wall Oven - BX481612

• Pyrolytic self-cleaning system
• Universal heating system with 17 heating methods, with core temperature probe, rotisserie spit and baking stone operation
• Core temperature probe with estimation of cooking time
• TFT touch display
• Electronic temperature control from 85°F - 550°F

Additional information

Cooking modes

• Convection. Economy convection.. Top + bottom heat. Top + 1/3 bottom heat. Top heat. 1/3 top + bottom heat. Bottom heat. Convection + bottom heat. Convection + 1/3 bottom heat. Convection broiling.. Broiling. Compact grill. Baking stone operation. Roaster function. Dough proofing. Defrosting. Keeping warm.

Operation

• Rotary knob and TFT touch display operation.
• Clear text display in 25 languages.
• Information key with use indicators.
• Side-opening door opens up to 180° angle

Features

• Three-point core temperature prove with automatic shut-off and estimation of cooking time.
• Rotisserie spit (lower oven).
• Baking stone outlet.
• Actual temperature display.
• Fast heating setting.
• Timer functions: cooking time, switch-off time, short-term timer, stopwatch.
• 60 W halogen light on the top.
• 10 W halogen light on the side.
• Enamelled side shelf supports with 5 tray levels, pyrolysis-safe.

Safety

• Thermally insulated door with quadruple glazing.
• Child lock.
• Safety shut-off.
• Cooled housing with temperature protection.

Cleaning

• Pyrolytic self-cleaning.
• Gaggenau Clean-Enamel.
• Heated air cleaning catalyst.

Planning notes

• Door hinge not reversible.
• The front of the appliance extends 1 7/8" from the cabinet front.
• Consider the overhang when planning to open drawers next to the appliance.
• When planning a corner solution, pay attention to the 90° door opening angle.
• To achieve the 21 5/8" installation depth, the connection cable needs to follow the slanted edge on the lower right hand corner of the housing.
• Plan a power outlet outside of the cut-out niche.

Rating

• Total rating 9.2 KW.
• Total Amps: 40 A.
• 208 / 220 - 240 V / 60 Hz.
• Connection cable 47 1/4" without plug.
