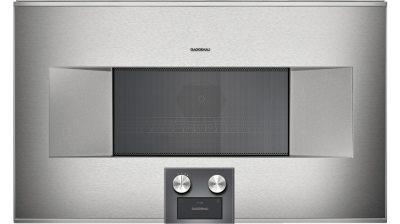

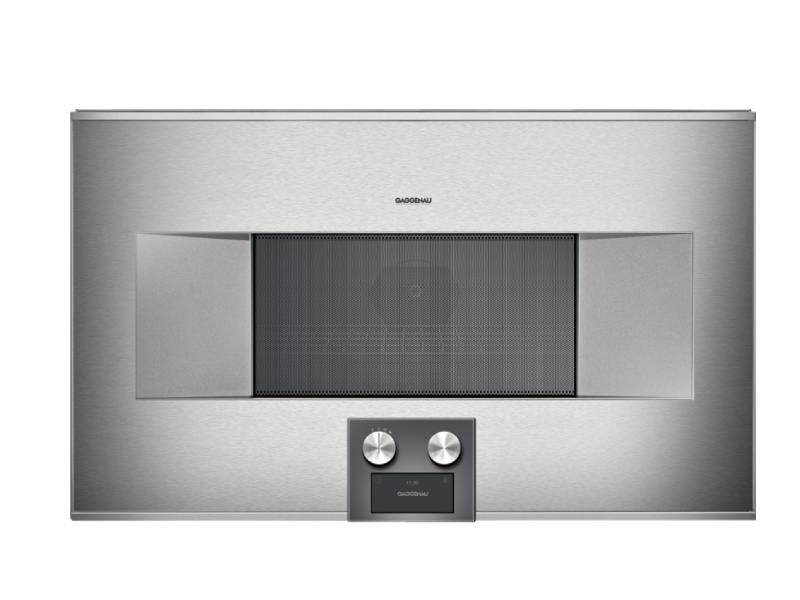

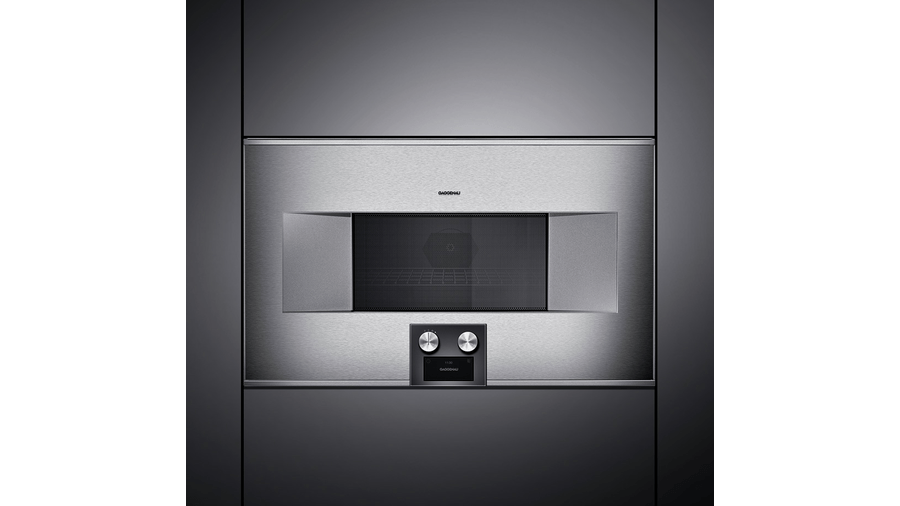

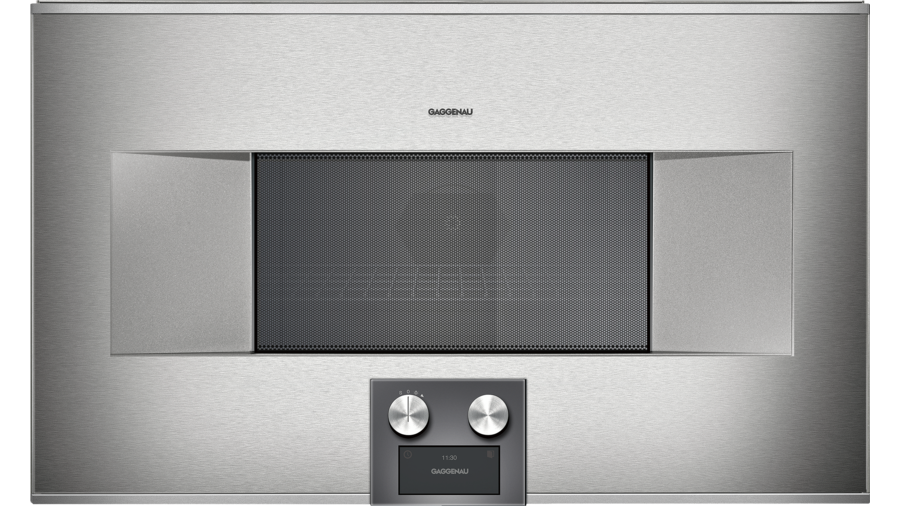

30" Gaggenau 400 series Combi-Microwave Oven - BM485710

• Handleless door / automatic door opening
• Single operation and combination of microwave, grill and oven
• Sequential operation of up to 5 modes incl. programming of combined operation and rest time
• TFT touch display
• Panel-free appliance with surface control module

Additional Information

Programmes

• Microwave operation with 5 output levels: 1000, 600, 360, 180, 90 W.
• Oven operation with 4 heating methods:Hot air 100 °F (40 °C) and from 210 °F to 480 °F (100 °C to 250 °C),Full surface grill + hot air from 210 °F to 480 °F (100 °C to 250 °C),Full surface grill + circulated air from 210 °F to 480 °F (100 °C to 250 °C),Full surface grill with 3 levels of intensity, maximum output 2000 W.
• Heating methods with microwave output levels 600, 360, 180 and 90 W freely combinable.
• 15 automatic programmes with weight indication, customisable:4 defrosting programmes4 cooking programmes7 combination programmes
• Option to save individual recipes.
• Sabbath mode with constant temperature of 185 °F (85 °C).

Handling

• Automatic door opening.
• Rotary knob and TFT touch display operation.
• Information key with use indicators.
• Side-opening door opens up to 180° angle.

Features

• Innowave.
• Rapid heating.
• 4 tray levels.
• Actual temperature display.
• 60 W halogen light on the side.

Safety

• Thermally insulated door with triple glazing.
• Triple door lock.
• Child lock.
• Safety shut-off.
• Cooled housing with temperature protection.

Cleaning

• Hygienic stainless steel interior with glass ceramic base.
• Interior back wall with catalytic coating.

Planning notes

• Door hinge not reversible.
• The panel surface of the appliance extends 1 7/8 " (47 mm) from the furniture cavity.
• If the handle (optional accessory) is retrofitted, the outer edge of the door handle extends 3 11/16" (94 mm) from the furniture cavity.
• Consider the overhang, incl. the door handle where applicable, when planning to open drawers next to the appliance.
• When planning a corner solution, pay attention to the 110° door opening angle.
• The mains socket needs to be planned outside of the built-in niche.

Connection

• Total connected load 3.1 kW.
• Connection cable 1.5 m without plug.
