PLANETARIUM WASHING SYSTEM
The Planetarium Wash System uses an innovative double motion of the spray arm. For every revolution of the main arm, the stem of the arm moves in the opposite direction, operating on a second axis. This spiralizing directional wash sprays water evenly in a 360° sweep. The rotation speed is 65rpm, giving the best wash results available.
| Type | |
|---|---|
| Product Family | Dishwashers |
| Commercial height | 86 cm |
| Number of place settings | 13 |
| Installation | Under counter built-in |
| Commercial width | 60 cm |
| EAN code | 8017709303754 |
| AESTHETICS | |
| Colour | Stainless steel |
| Front panel colour | Finger friendly stainless steel |
| Door colour | Finger friendly stainless steel |
| LED/display colour | White |
| Buttons colour | Silver (oropal grey) |
| Programs / Functions | |
| N. of programmes | 10+1 |
| Soak | Yes |
| Express 27' | Yes |
| Mix | Yes |
| Sterilise | Yes |
| Self clean | Yes |
| 1/2 load | Yes |
| Delicate | Yes |
| Auto | Yes |
| Crystal & China | Yes |
| Eco express | Yes |
| Pots & Pans | Yes |
| Washing temperatures | 38, 45, 50, 55, 65, 70, 75 °F |
| Options | |
| Dry Assist option | Yes |
| Delay timer option | Up to 24 hours |
| 1/2 load FlexiZone option | Yes |
| Special programs option | Yes |
| Baskets | |
| N° baskets | 3, FlexiDuo |
| Basket components colour | Grey |

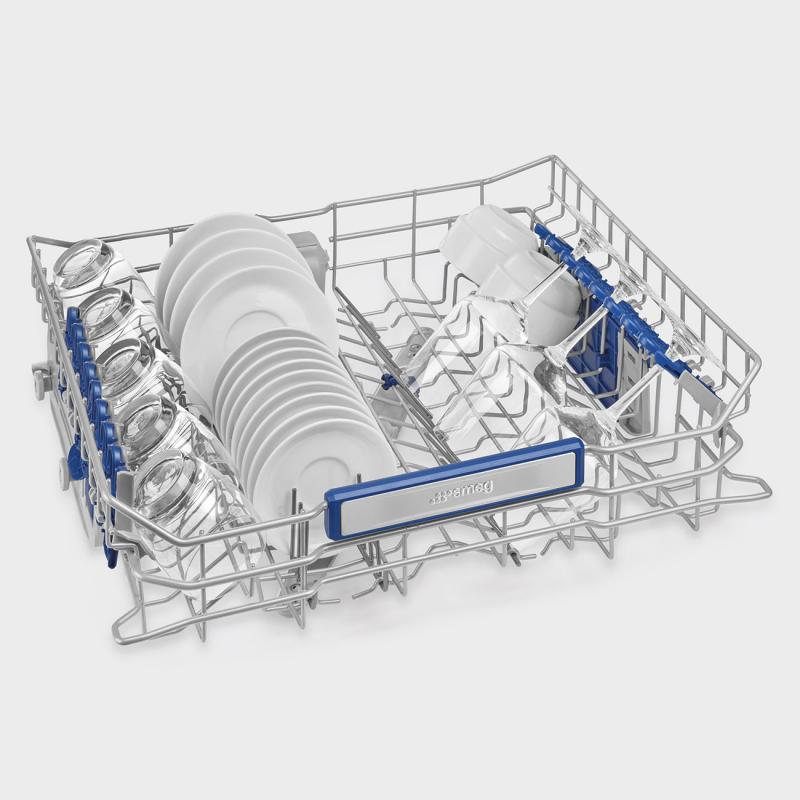

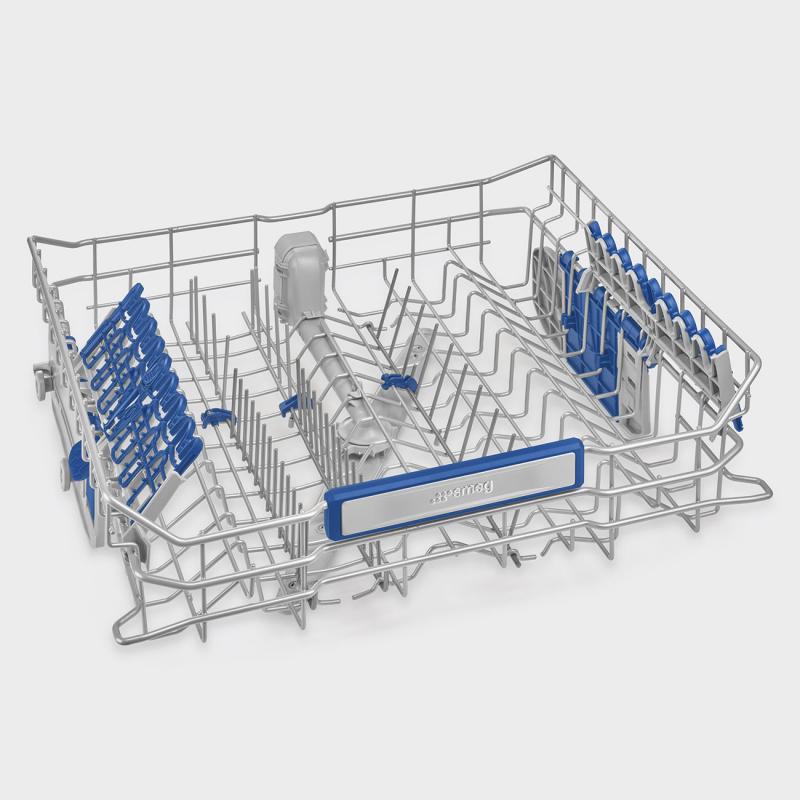

| Upper Basket | With 3 foldable racks |
| Height adjustment of the upper basket | On three levels (5 cm) |

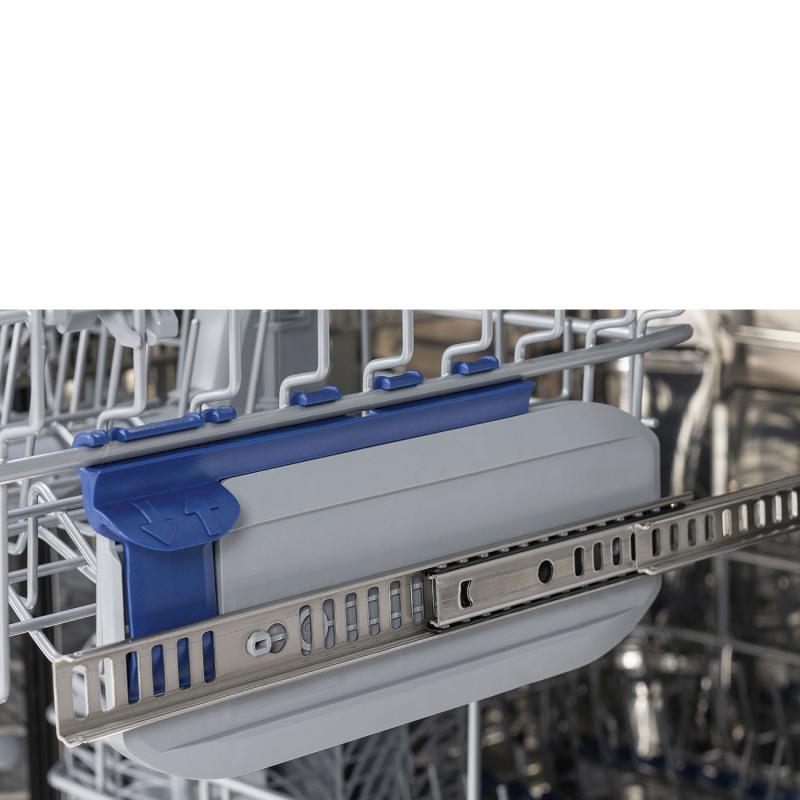

| Sliding Guides Extra Glide | Yes |

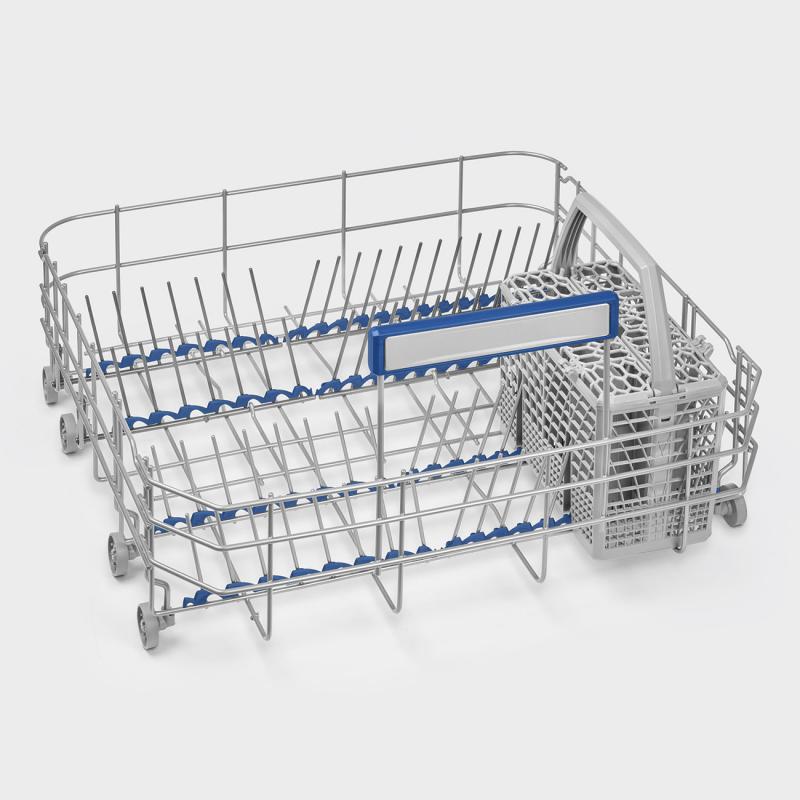

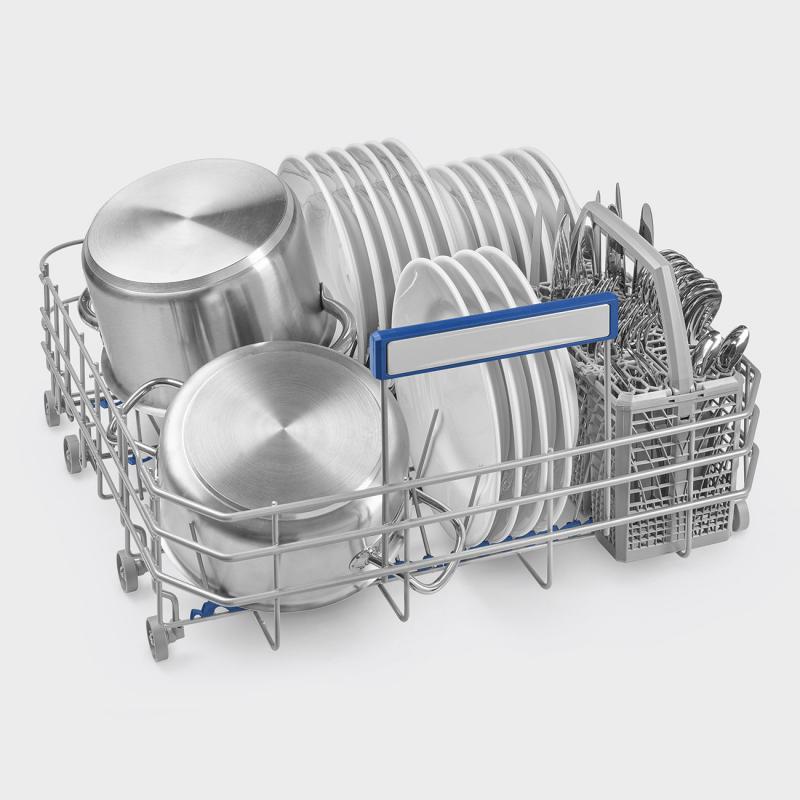

| Lower Basket | With 4 foldable racks |
| Largest loadable dish in upper basket | 18,0 inches |
| Lower basket with anti-drip inserts | Yes |
| Largest loadable dish in lower basket | 35,0 inches |
| Cutlery basket | Yes |
| Colour Inner Components | Blue |
| Technical Features | |
| Display | Delayed start, Programme time indicator, Time to end indication |
| Door opening system | Yes |
| Display type | OLED |
| On/off indicator | Yes |
| Salt light indicator | Light |
| Rinse aid indicator | Light |
| Progress indicator | Yes |
| End of cycle indicator | On display, with acoustic signal |
| Washing system | Planetarium |
| Drying system | Natural condenser drying, with Dry Assist automatic door opening system at the end of the cycle |
| Motor | Single phase |
| Third spray arm | Single |
| Water softener | With electronic setting |
| Turbidity sensor Aquatest | Yes |
| Flood protection system | Total Acquastop |
| Max water hardness | 100°fH;58°dH |
| Internal light | With White led |
| Tub Material | Stainless steel |
| Filter | Stainless steel |
| Concealed heating element | Yes |
| Min. and max plinth height | 98 - 168 mm |
| Hinges | Self balancing with variable hinges |
| Adjustable feet | 7cm, from 860 to 930 mm |
| PERFORMANCE / ENERGY LABEL | |
| Noise level (dBA) | 44 dB(A) re 1pW |
| Annual energy consumption | 235 KWh/year |
| Energy Star | Yes |
| ELECTRICAL CONNECTION | |
| Connected power | 1800 W |
| Voltage | 110-120 V |
| Type of connection | Single-phase |
| Frequency (Hz) | 60 Hz |
| Power supply cable length | 140 " |
| LOGISTIC INFORMATION | |
| Net weight (kg) | 115 lbs |
