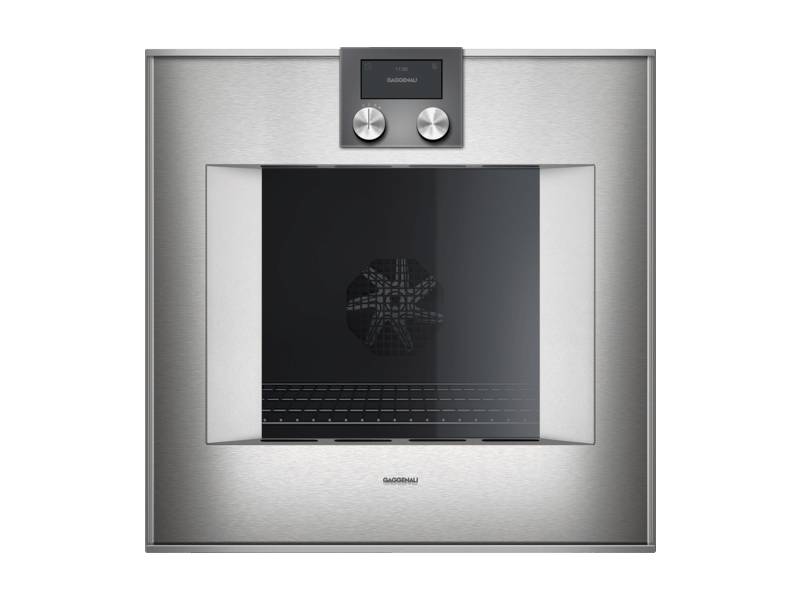

24" Gaggenau 400 Series Stainless Steel Smart Electric Single Wall Oven - BO450612

• Handleless door / automatic door opening
• Pyrolytic self-cleaning system
• Universal heating system with 13 heating modes, with meat probe and baking stone operation
• Automatic programs
• Core temperature probe with estimation of cooking time

Additional information

Cooking modes

• Convection. Economy convection. Top + bottom heat. Top heat. Bottom heat. Convection + bottom heat. Convection broiling. Broiling. Economy broiling. Baking stone operation. Roaster operation. Dough proofing. Defrosting.

Operation

• One touch control panel and an interactive visual display.
• Rotary knob and TFT touch display operation.
• Clear text display in 25 languages.
• Option to save 50 individual recipes (incl. core temperature probe)
• Personalization of automatic programs.
• Information key with use indicators.
• Side-opening door opens up to 180° angle.

Features

• Three-point core temperature prove with automatic shut-off and estimation of cooking time.
• Baking stone outlet.
• Actual temperature display.
• Fast heating setting.
• Timer functions: cooking time, switch-off time, short-term timer, stopwatch.
• 60 W halogen light on the top.
• 10 W halogen light on the side.
• Enamelled side shelf supports with 4 tray levels, pyrolysis-safe.
• Home network integration for digital services (Home Connect) either via cable connection LAN (recommended) or wireless via WiFi.
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

Safety

• Thermally insulated door with quadruple glazing.
• Child lock.
• Safety shut-off.
• Cooled housing with temperature protection.

Cleaning

• Pyrolytic self-cleaning.
• Gaggenau Clean-Enamel.
• Heated air cleaning catalyst.

Planning notes

• Door hinge not reversible.
• The front of the appliance extends 1 7/8" from the cabinet front.
• Consider the overhang when planning to open drawers next to the appliance.
• When planning a corner solution, pay attention to the 90° door opening angle.
• To achieve the 21 5/8" installation depth, the connection cable needs to follow the slanted edge on the lower right hand corner of the housing.
• Plan a power outlet outside of the cut-out niche.
• The LAN port can be found at the back on the upper right side.

Rating

• Total rating 4.0 KW.
• Total Amps: 17 A.
• 208 / 220 - 240 V / 60 Hz.
• Connection cable 47 1/4" without plug.
• Plan for a LAN cable.
