Asko DBI565TXXL.S

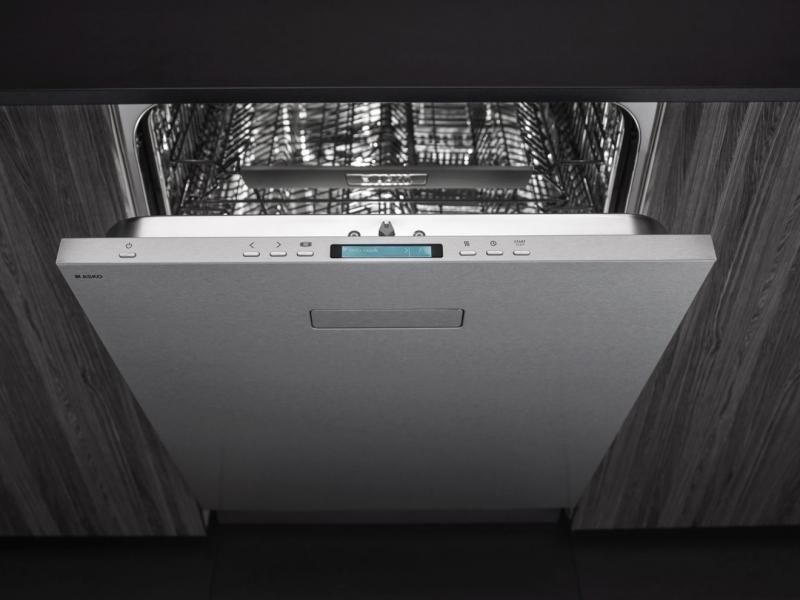

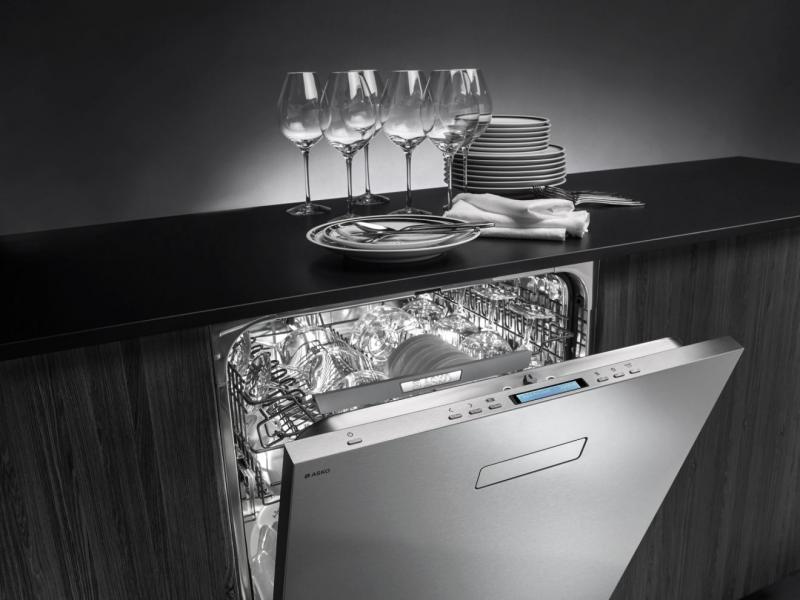

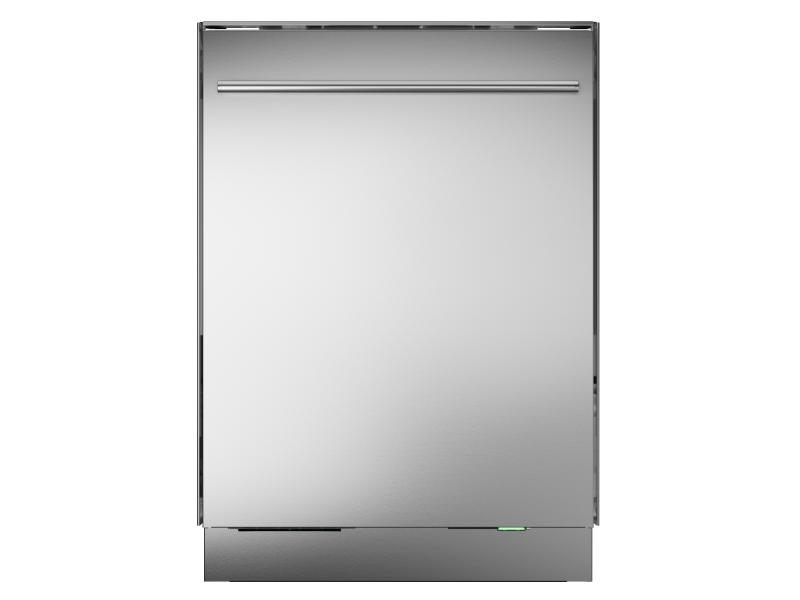

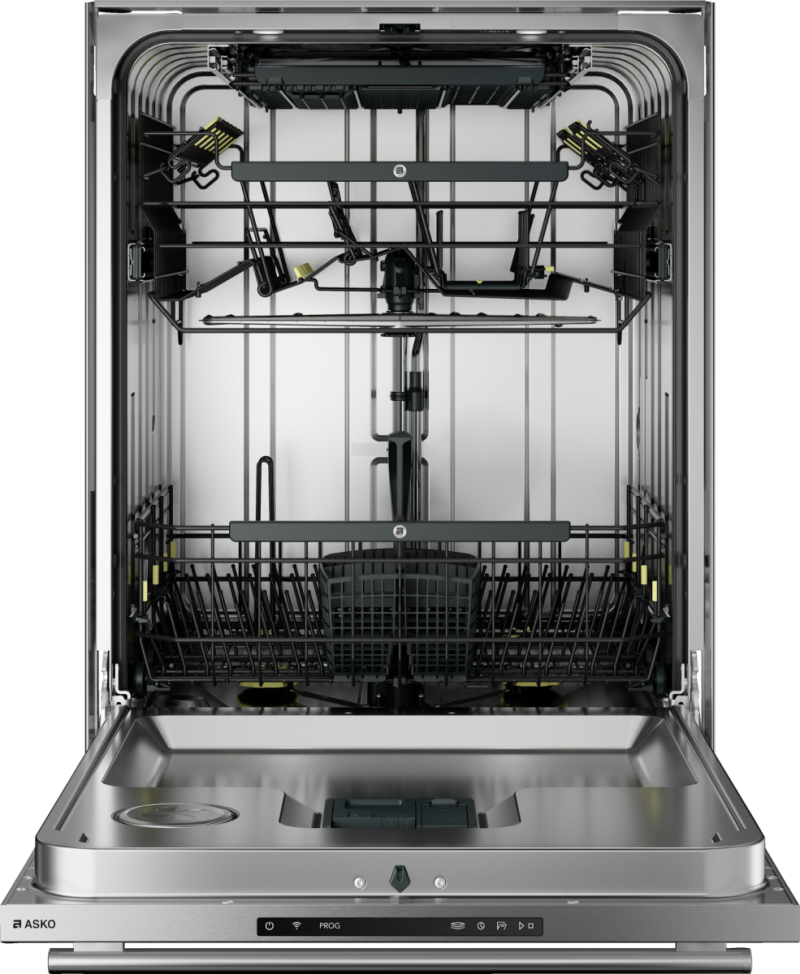

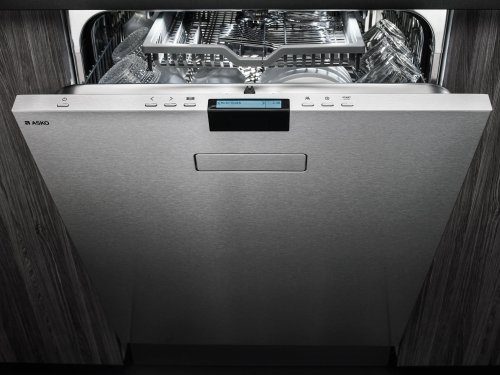

24" Asko Built-in Under Counter Dishwasher in Stainless Steel - DBI565TXXL.S



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Best Brand Appliance offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.



Toronto:   (416) 901-6383
Vaughan: (905) 264-3137
Oakville/Burlington: (905) 592-0269


Literature

  • Number of place settings: 16 pcs
  • Number of racks: 3
  • Upper basket type: Exclusive - Nylon coated steel baskets, all tines rows are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
  • Size: XXL
  • Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening
  • Automatic dosing system: No
  • Installation: Built under work top
  • Series: Logic

Features

SCS - Super Cleaning System™

Rinse the dishes. Clean the interior, including the filter. Choose the best program. How many steps is that? One – and we call it the Super Cleaning System – or our best invention.

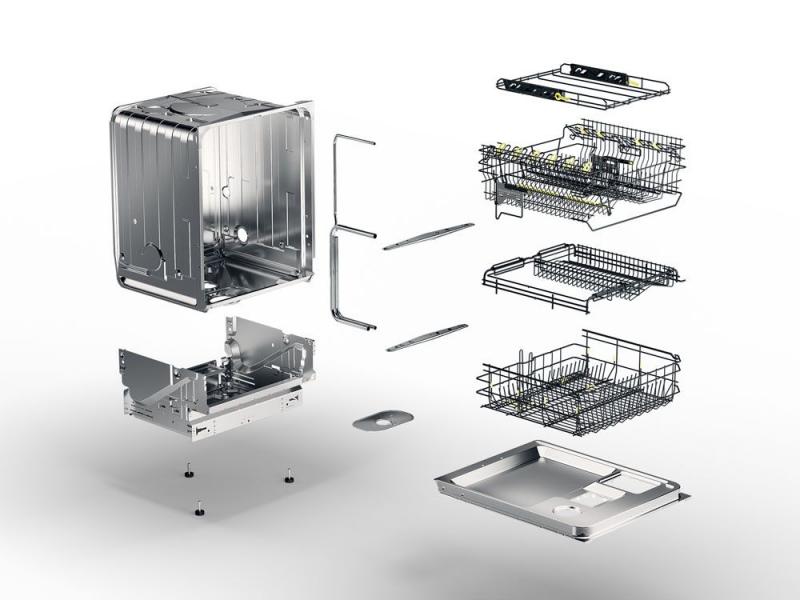

8 Steel™

8 Steel™ - more steel less plastic No other material lasts as long as steel. And no other dishwashers have as many details made from steel instead of plastic as ASKO dishwashers. In fact, eight of the most important components in our dishwashers are made of high-quality steel rather than plastic: the container, loading racks, spray pipe, spray arms, strainers, outer base, feet, and inner door. By using more steel and less plastic, we make our machines last longer.



Turbo Combi Drying™

Turbo Combi Drying™ benefits from both the innovative Turbo Drying™ system and natural drying with dry indoor air. Our Turbo Drying™ system begins the drying process and is followed with the door automatically opens to finish the drying with indoor air.

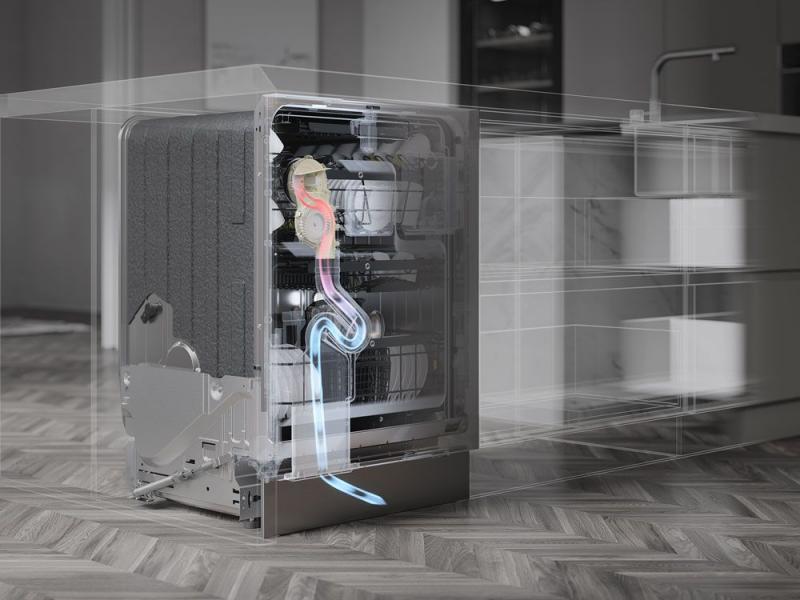

Aqua Safe™ system

Aqua Safe™, is an advanced water safety system encompassing both a sturdy construction like PEX hose and seam-welded stainless container as well as smart systems as anti-block drain pump, Aqua Detect sensor and stand-by water protection. Few sealing points outside the container Seem-welded container in stainless steel Waterproof external base Exterior Float Aqua Detect™ Sensor Stand by water protection PEX inlet hose Maximum time for water intake Light and sound alarm Anti-block drain pump Safety Inlet Valve



Flexiracks™

ASKO Flexiracks™ from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.



XXL dishwashers

Our XXL dishwashers have an loading height of 23". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.



Light Lock™

Light plastic cans and bowls are easily flipped over and filled with water. The LightLock™ smart fixation helps them to retain their position throughout the program.



Self cleaning

ASKO’s dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned. Use a recommended cleaning agent and the program on a regular basis for best result.

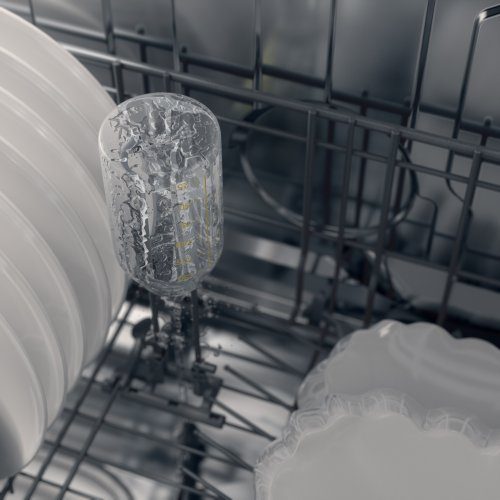

Vase/bottle holder

Our special holder for tall, narrow objects like baby bottles, vases and bottles is combined with a special power zone that makes sure that the cleaning result is perfect.

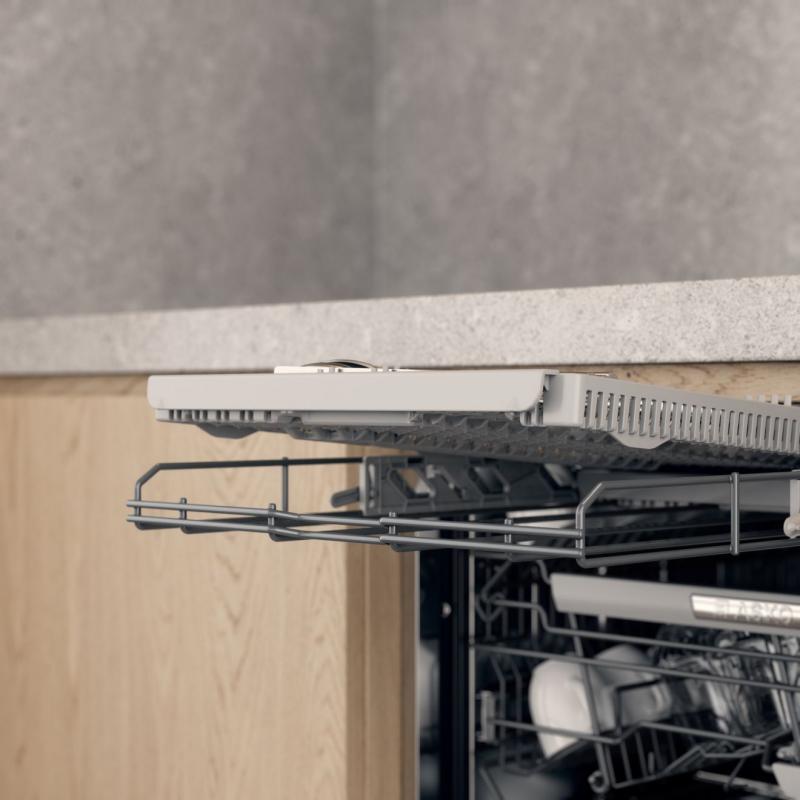

Top cutlery tray

The top tray for cutlery and kitchen utensils is easy to remove for easy unloading. With a width of 12-3/4" the centred tray leaves plenty of room for tall wine glasses in the upper rack on each side of the tray. And with the Instant Lift™ you have the freedom to adjust the upper rack to be 1-1/2" or 2-1/4".



Time program

When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have. The program then adjusts washing and rinsing to match your needs.

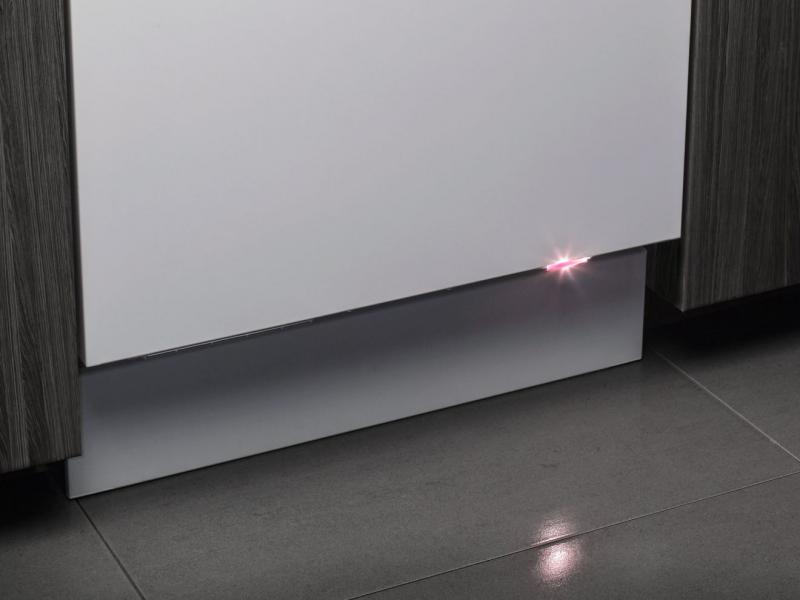

Status Light™

ASKO’s new generation dishwashers have Status Light™ -a small light placed in the bottom right corner to let you know the actual status of the program.

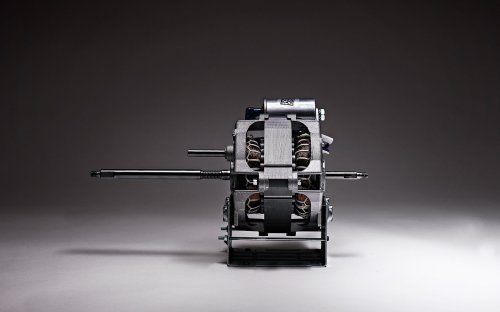

Brushless motor

A brushless motor is not only quieter and more reliable. It also consumes less energy. You want your dishwasher to work forever. So do we.

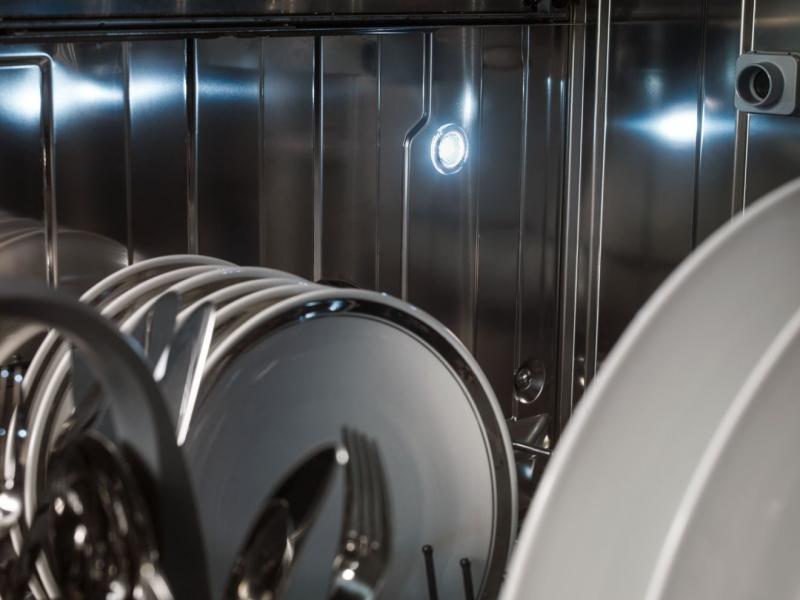

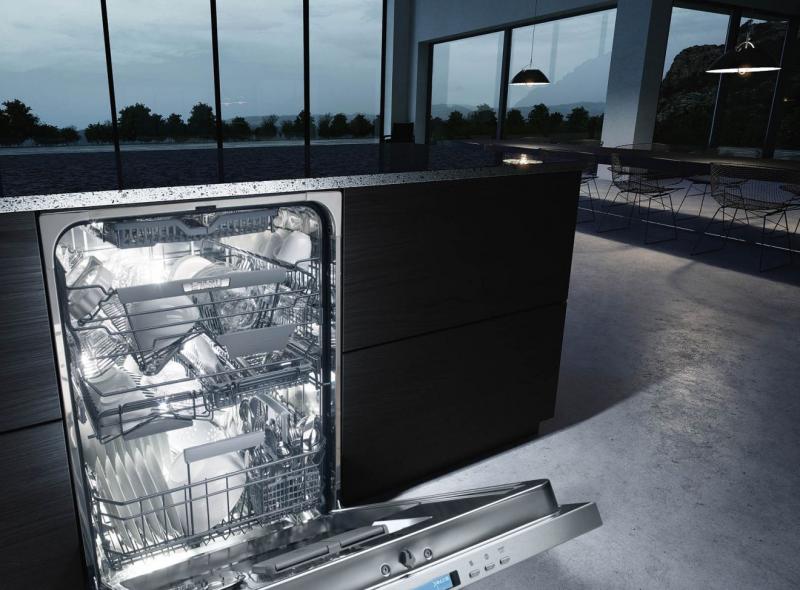

LED interior light

The combination of outer and inner LED-lights is designed for best intensity and durability. It gives you a good overview of the door area as well as the inside of the dishwasher.



Green mode

The Green mode saves water and energy by lowering the temperature and extending the washing cycle. Still, the result is just as perfect as the Normal program. Let’s go greener!



Speed mode

When you need to get things cleaned in a hurry, the Speed mode is useful. It saves up to 50% of the normal time, by using more water and increased heating.



Night mode

Night mode reduces the noise by 2 dB thanks to lower pressure in the spray arm. Perfect at night or in a house with an open plan living area.



Auto

ASKO’s Auto program with the SensiClean™ sensor ensures the right temperature, washing cycle and drying regardless of what you have put in the machine. Every time.



Preheated

Sometimes you need to use the same kitchen ware with short intervals. The Preheated program only takes half an hour – perfect at the dinner party or when you bake.



Rinse & hold

The Rinse and hold program allows for you to avoid dried leftovers while you wait for the dishwasher to get fully loaded. Saves time and energy over time.



Aqua Level™Sensor

The Aqua Level™ Sensor ensures the exact amount of water. For example, if a plastic bowl turns over and is filled with water, the sensor automatically adds extra water to the process for a premium cleaning result.



Aqua Detect™ Sensor

The Aqua Detect™Sensor monitors the inlet valves and the water level while the machine operates. For safety reasons, the drain pump’s capacity is five times the inlet valve’s.

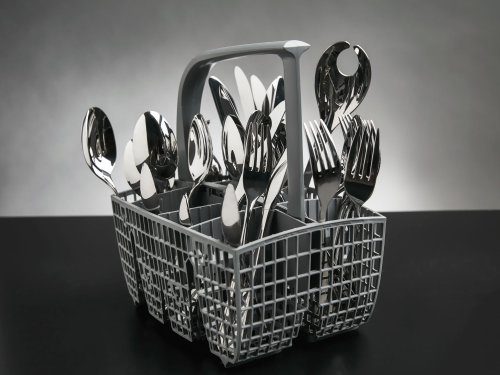

Power Zone Cutlery™

Power Zone Cutlery™ is a special nozzle spray zone for the cutlery basket that will make your cutlery dazzling clean. And, there is a similar nozzle for the knife basket.



Kid Safe™

To stop small fingers from starting the dishwasher the Kid Safe™ makes the control panel easy to lock. This also prevents altering any settings by mistake.



Anti siphon

For our fully integrated dishwashers, the Anti-siphon solution safely keeps the water inside the machine. This is especially important if the dishwasher is placed above floor level.

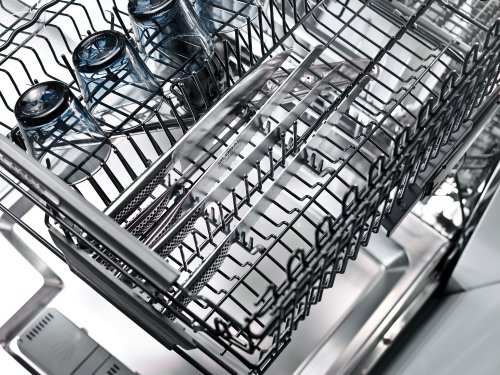

Extra wide knife stand

Our smart knife holders are found in the middle, upper, and the top basket. They are all are extra deep so that the blades remain steady. Cutting edge, not fingers.



Instant Lift™

Our InstantLift™ height adjustment system, allows for freeing up between 1-1/2" or 2-1/4" in the upper rack,. A simple and flexible way to make room for it all.



9 Spray™

ASKO’s spray system consists of up to 9 effective spray zones to ensure a totally clean load. In the lower rack there are three power zones to take care of the dirtiest parts.

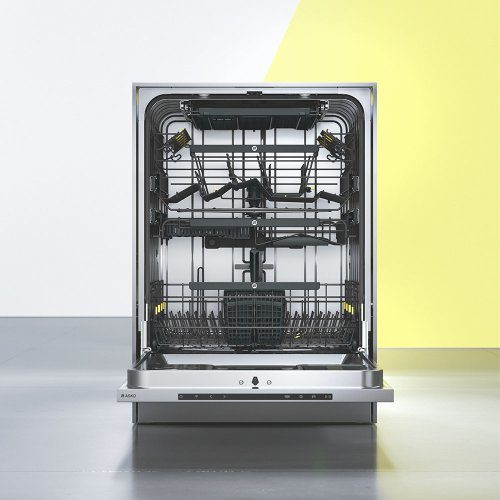

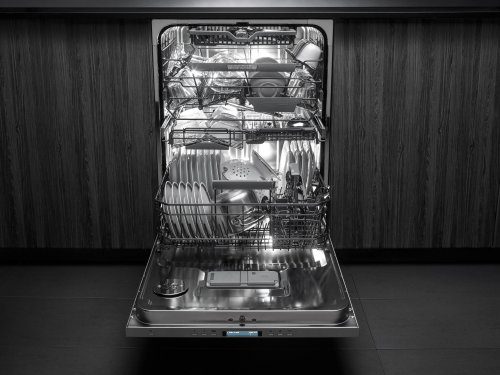

3 Level rack

ASKO’s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.



Folding tines

The foldable tines in the lower tray makes it easy to load different sizes of pots and pans. Flexibility at its best.



Foldable Glass support

Sometimes you need the space of the upper rack for other items than glasses. Good thing that the tines are foldable here as well.

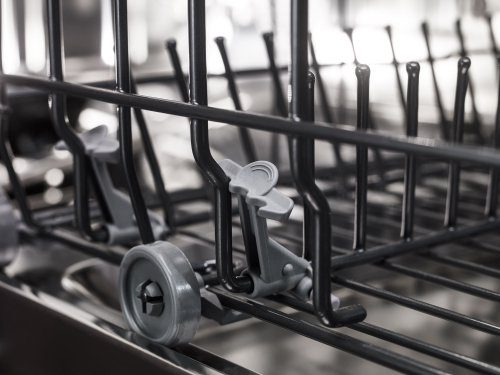

Telescopic rails

ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.

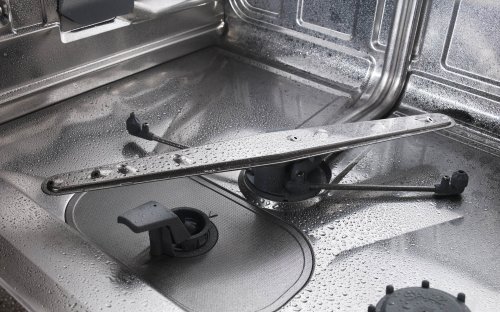

3 Spray arms

The 3 spray-arm technique reaches every corner and with up to 10 highly effective spray zones, no dirt can escape. Not even your lasagne baking dish.



Touch Proof™

The ultra-thin, transparent TouchProof™ coating protects your dishwasher stains and grease Easy to clean, scratch resistant it will keep your dishwasher looking brand new year after year.

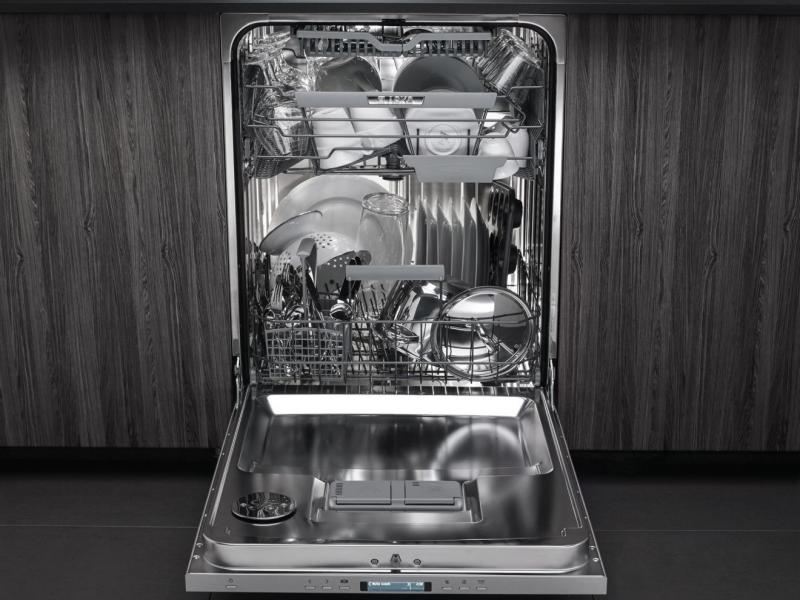

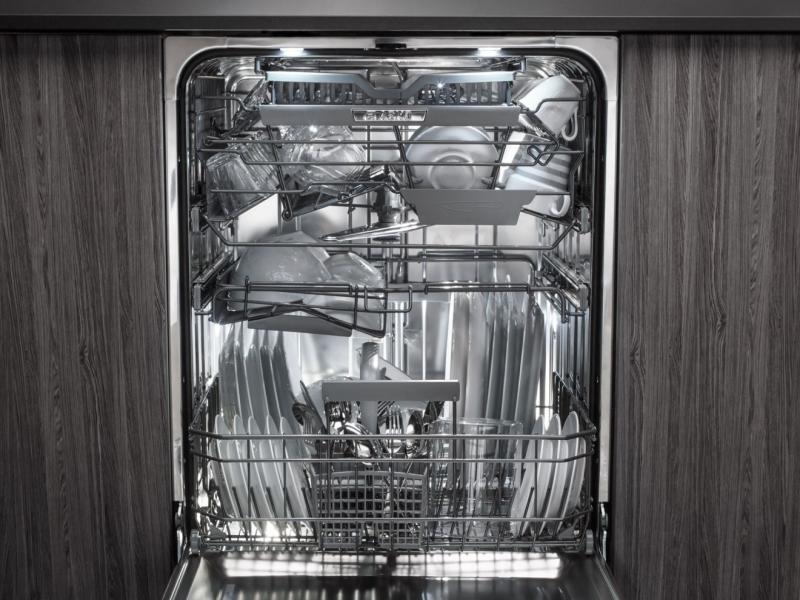

16 - Loading capacity

The world’s biggest load capacity. The latest addition to our rack system is a flexible top cutlery tray with its own spray arm and space for sixteen sets of cutlery, small bowls, or other utensils that can be difficult to load. The width of the top cutlery tray has been optimised to make room for tall glasses in the upper rack and, if more space is needed simply take the top cutlery tray out.



China Guard

Our china guard ensures secure rotation of the upper sprayarm.



15-3/4" plates in lower rack

Our XXL dishwashers have room for a 40 cm big plate in the lower rack when the middle rack is removed and the upper rack in the upmost position.

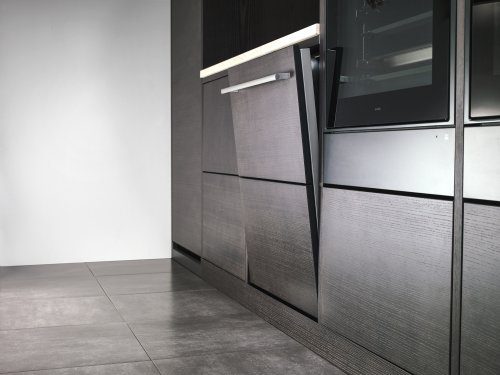

Pop Out Door

When a program is completed, the Door Pop-Out function opens the dishwasher door automatically to remove the steam inside.



Knife holders

Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.

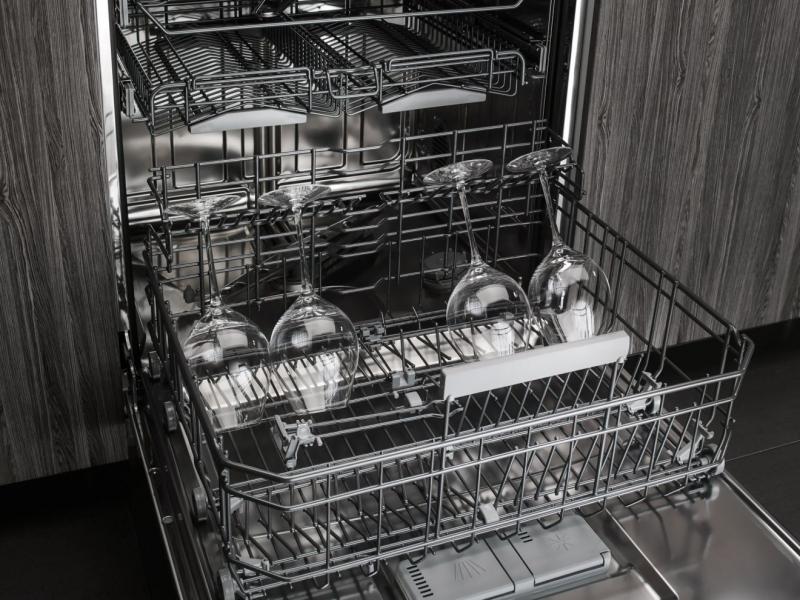

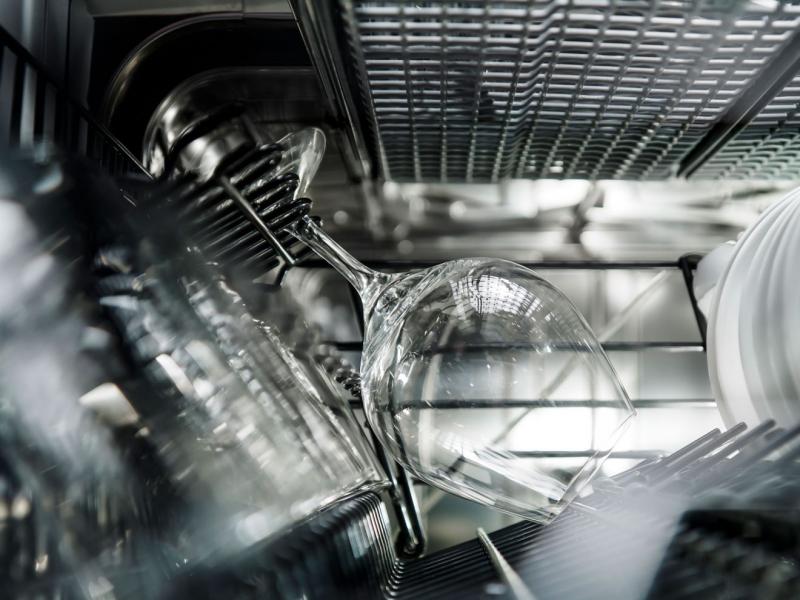

Multi position glass rack

The Multi position glass rack is a very practical rack that can be mounted in three different positions – all depending on your needs.



Focus points

Focus points - a hint of nature Opening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine’s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place – where it doesn’t compete for space or attention – instead, it makes the room.

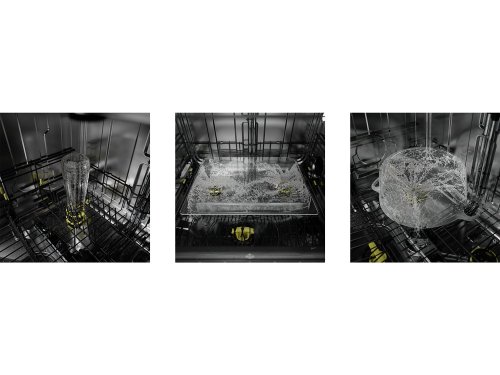

Adjustable power zones

To make an already powerful cleaning system even more powerful, we have created two adjustable "power zones" with two different spray patterns. The power zones either produce a concentrated highpressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans. There’s also a "bridging function" where both power zones are set to the wide spray mode for very large dishes or utensils. The power zones are operated manually, so when you don’t need them simply switch them off

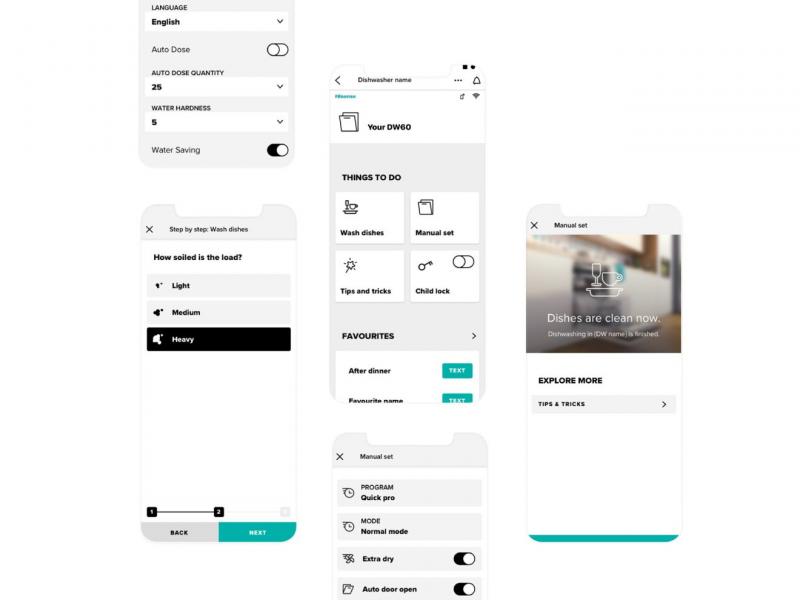

Connected

The ConnectLife app lets you control and monitor your ASKO dishwasher remotely via your smartphone or tablet. You can look up the online user manual, change settings, check the machine’s status and more. You can even start, stop and pause programs on the move. The app includes a step-by-step guide to help you find the best programs for you depending on what you’re washing and how you prefer to wash it.



Logic

If you approach new technology with logic and reason, you will find our Logic family of dishwashers satisfying and natural to use. All Logic models have a clean minimalistic design that is both elegant and easy on the eye. The integrated, fully graphical (FFSTN) display is conveniently positioned on top of the door.



20 years

Today, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better – for our customers and for the planet. Designed to make a difference. And built to be enjoyed for the next 20 years.



Quick Pro

A fast and effective program using variable water pressure to boost cleaning performance and that quickly takes care of slightly dried leftovers. When combined with Speed mode, the program cycle is even shorter – as fast as 39 minutes.



Turbo Combi Drying™ with sensor control

This is our most advanced drying method. It is based on the same principles as Turbo Combi Drying, but the automatic door opening is regulated by a sensor that measures the temperature in your kitchen. If the kitchen is colder than normal, the door will open at a later stage. If it is warmer, the door opens earlier. This means that energy for drying is used more efficiently.


Use and flexibility
Number of racks3
Number of place settings16 pcs
Construction and performance

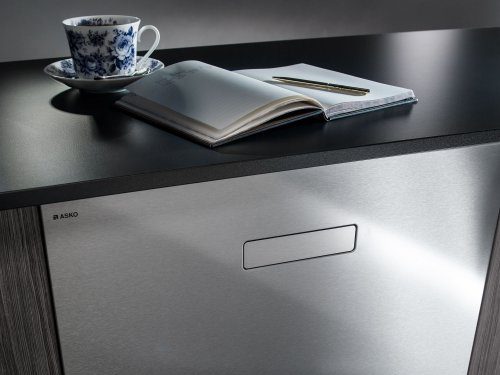

Exterior handleT-Bar
Cleaning systemsCutlery Sprayâ„¢ - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning Systemâ„¢ Aqua Levelâ„¢ Sensor Sensi Cleanâ„¢ Sensor - measures dirtiness level Stainless steel spray arms Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off. The water pressure is adapted depending on program, type of dishes and dirtiness level.
Number of spray zones9
Number of spray arms3 pcs
Automatic water-softener for better washing performanceNo
No need to rinse the dishes thanks to Super Cleaning Systemâ„¢Yes
8 Steelâ„¢ - Vital parts of the dishwasher made in stainless steelYes
Functions, programs and modes
ProgramsRinse and hold program Intensive program Sanitize Auto wash Standard Time program Anti odour Quick Pro wash Self cleaning
Interaction and control
Language settingsNorwegian German Russian Finnish Swedish Portuguese Lithuanian English Latvian Croatian Italian French Chinese traditional Spanish Estonian Czech Ukrainian Japanese Slovak Slovenian Chinese simpified Polish Danish Dutch
End wash indicatorDisplayed with sound and light
Remaining time indicatorYes
Status Lightâ„¢ - Visual indication of dishwashing progressYes

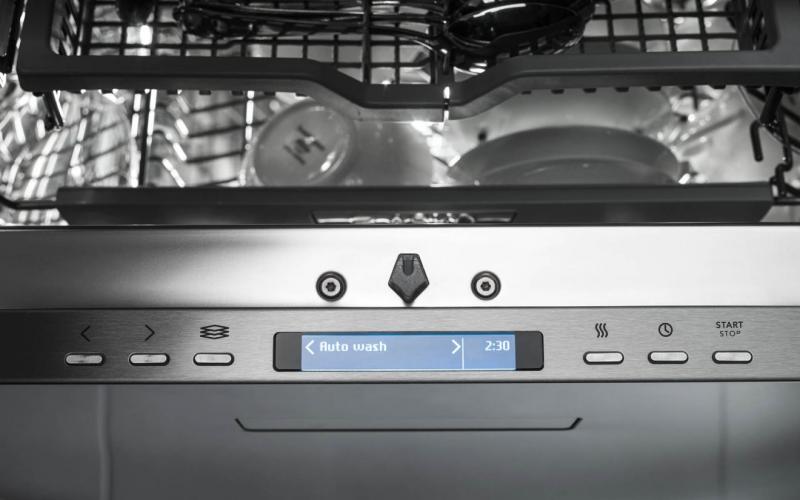

Type of displayLCD display
Possible to control via Wi-FiYes, integrated
Use and flexibility
Interior lightYes, 2 LED lights
Automatic dosing systemNo
Lower basketFoldable/divisible rear tine row Vase/bottle holder for cleaning vases/baby bottles Foldable/divisible front tine row Cutlery basket Small distance between the basket threads - makes loading easy and prevents small items to fall through. Handle with ASKO logo Sliding tines for easy adaptation to stone ware etc.
Lower basket typeExclusive
Middle basketWithout middle basket
Upper basket height adjustableYes
Upper basketPerfect ergonomy with easy sliding telescopic rails Small distance between the basket threads - makes loading easy and prevents small items to fall through Light Lockâ„¢ for fastening lightweight items China Guard - Protects fragile load from the rotating spray arm Extra wide knife stand Dividable pin rows Wine glass fixings in TPE Two foldable glass supports Handle with ASKO logo Sliding tines for easy adaptation to stone ware etc. Foldable wine shelves to right Divisble/foldable wine shelves to left
Upper basket typeExclusive - Nylon coated steel baskets, all tines rows are foldable, divisble/foldable wine shelves, Light Lockâ„¢ for fastening lightweight items
Top trayEasy height adjustment With telescopic rails Handle Guide rails with ball bearings Removable
Safety and maintenance
Child safetyKid Safeâ„¢ - Lockable controls
Aqua Safeâ„¢ systemYes
Aqua Safeâ„¢Sealing points outside container Extra durable stainless steel container Waterproof bottom plate Detection of water leakage on the bottom plate Aqua Detectâ„¢ - Instant recognition of any leakage in the motor compartment Aqua Levelâ„¢ Sensor - Ensures an optimized water level Stand-by water protection - Leakage detection when machine is off Extra durable PEX inlet hose Maximum time for water intake Light and sound alarm Anti Blockâ„¢ - Self cleaning drain pump
Design and integration
Adjustable kick plate30-94/0
Height setting53 mm
Depth (incl. wall spacing)555 mm
Min. niche height870 mm
Min. niche width609 mm
Possible to install elevatedYes
Sliding doorNo

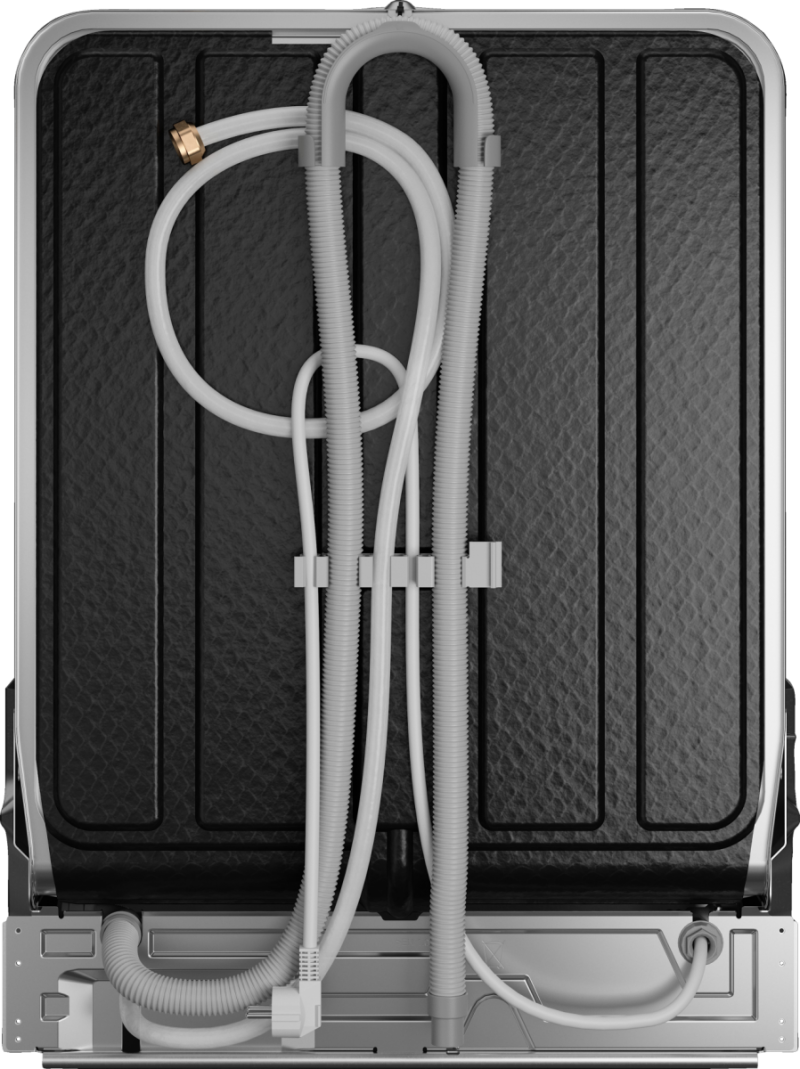

InstallationMulti fit outlet hose Integrated anti-siphon - Safely keeps the water inside the machine especially important if the dishwasher is placed above floor level. Trim kit Steam protection strip
Rear leg is adjustable from the frontYes
From the front adjustable door springNo
Functions, programs and modes
Options and modesSensor controlled door opening - Optimizes the drying process according to the room temperature Time set Heat Boost Mode Green mode - Less energy and water is used. The program time is extended Enable/disable automatic door opening Speed mode - The program time is shortened. More energy is used. Night mode - Lower noise level. The program time is extended. Super Rinseâ„¢ - Two extra rinses
Delayed startPossible to delay up to 24 hours
Main wash temperature (°C)55/60/65/70
LOGISTIC INFORMATION
EAN code3838782628443
Product code740102
Gross weight46.8 kg
Packaging depth680 mm
Packaging height930 mm
Packaging width640 mm
Dimensions
Length outlet hose230 cm
Length inlet hose163 cm
Depth with door open1231 mm
Length of electrical cord1815 mm
Maximum product height924 mm
Depth554 mm
Height871 mm
Width608 mm
Technical data
Net weight43.5 kg
Required inlet water pressure MPa0,03-1
Frequency60 Hz
Fuse15 A
Number of phases1
Voltage (V)120 V
Connected load1300 W
Plug typeUSA
Power consumption in standby mode0.5 W
Water consumption11.4 l
Estimated annual water consumption2451 l
Energy consumption - normal program1 kWh
Estimated yearly energy consumption220 kWh
Reference programme1
Duration of standard programme125 min
Noise level (dBA)40 dB(A)
Max. temperature of inflow water60 °C
Adapter for water connectionNo
Water connectionHot&cold water
Safety and maintenance
Rinse-aid IndicatorNotification in display
