We have developed programs and run modes to assist you in all of your daily situations; crystal program for your delicate glasses, silent mode for washing during the night, speed mode for when you need it quickly, the intensive mode for the really tough dirt. All to make your daily life a little bit easier.
CONSTRUCTION
USE AND FLEXIBILITY
INTERACTION & CONTROL
PROGRAMS
DESIGN & INTEGRATION
SAFETY & MAINTENANCE
GENERAL DESCRIPTION | |
---|---|
Drying method | Turbo Drying |
Product line | Style |
Mode of installation | Fully Integrated |
Size | ADA height compliant |
Number of baskets | 3 |
Number of place settings | 16 place settings |
Icons | 8 Steel™ construction, Super Cleaning System |

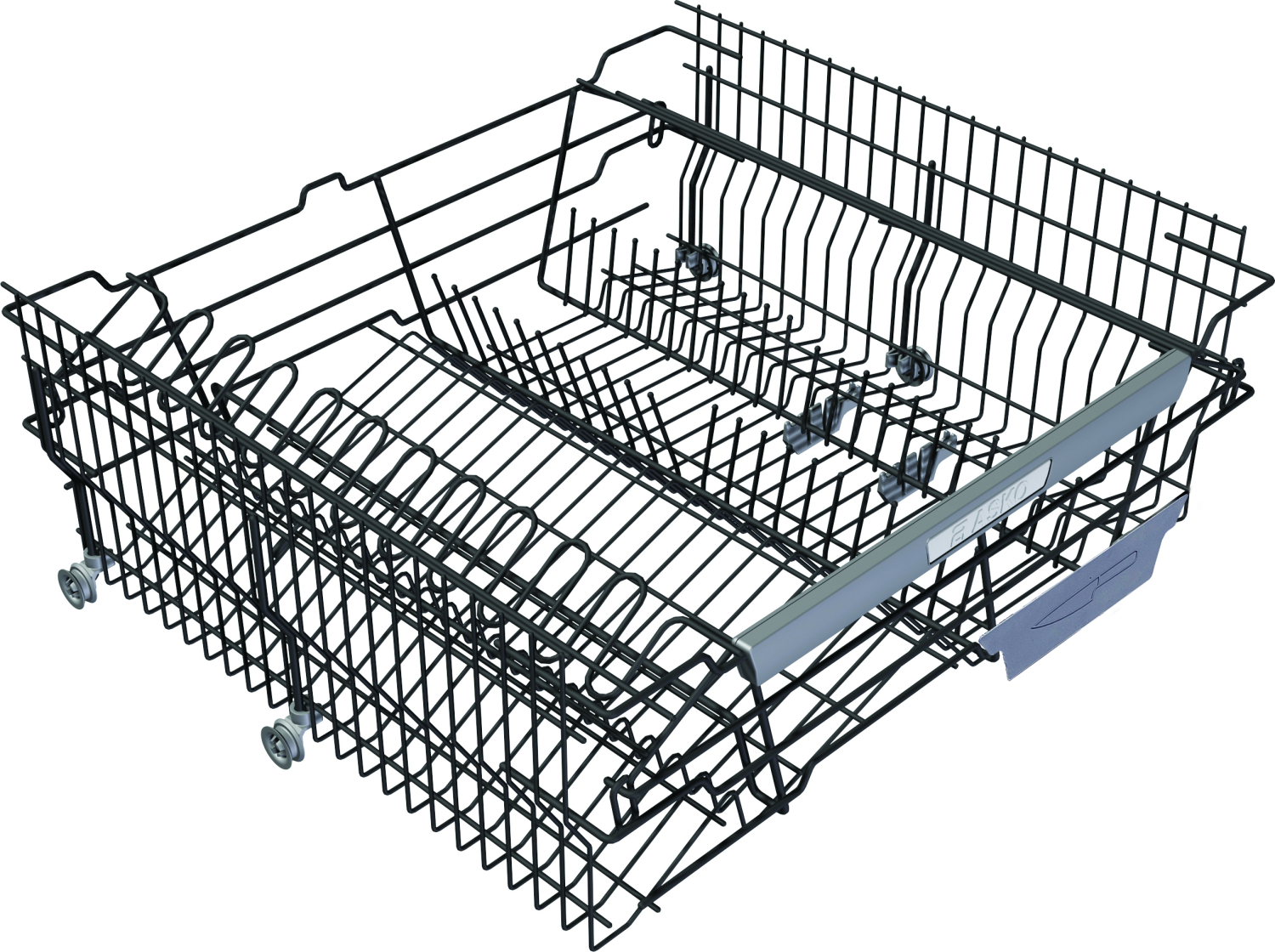

Top tray | Easy height adjustment; Divisible and removable baskets in top rack; With rack for knives and utensils; With rack for bowls and cups; With telescopic rails; Handle |
Upper basket type | Premium |

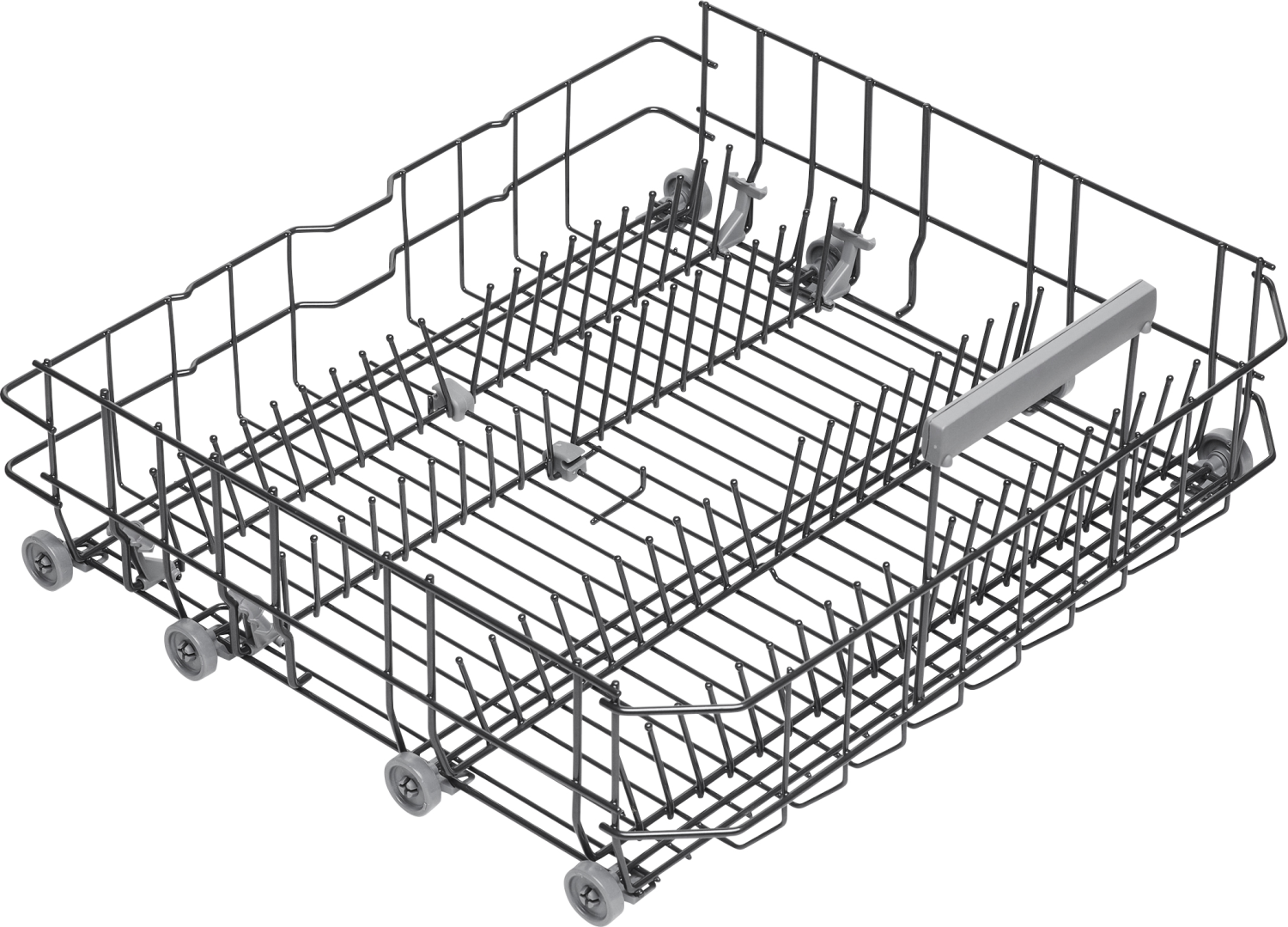

Lower basket type | Premium |

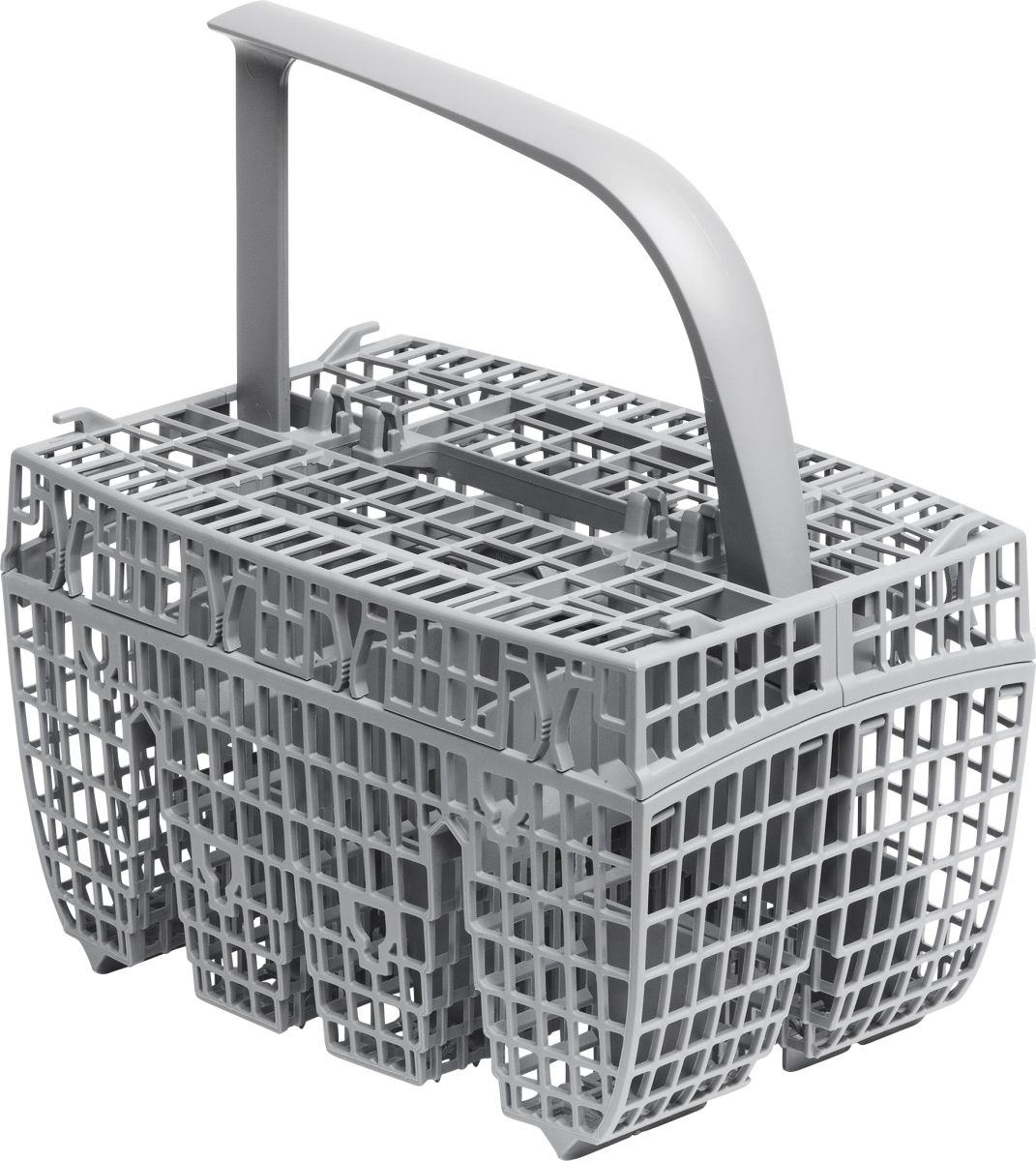

Cutlery basket | Removable cutlery basket for easy unloading |
Technical data | |
Max. temperature of inflow water | 140 F |
Noise level | 42 dB(A) |
Reference program | 1 |
Estimated yearly energy consumption | 235 kWh |
Energy consumption/cycle | 1 kWh |
Water consumption/cycle | 3 US gal |
Consumption in off mode | 0.49 W |
Consumption in standby mode | 0.49 W |
Connection rating | 1300 W |
Voltage (V) | 120 V |
Number of phases | 1 |
Current | 15 A |
Frequency | 60 Hz |
Required inlet water pressure | 0,03-1 MPa |
Net weight | 103 lbs |
Marked for recycling | Marked for recycling |
ISO 14001 | ISO 14001 |
Dimensions | |
Product dimensions (HxWxD) | 32 1/4” × 24” × 22” (819 × 609 × 559 mm) |
Maximum product height | 34 3/16” (869 mm) |
Cord length | 47 1/4” (1200 mm) |
Depth with door open | 47 3/16” (1198 mm) |
Length of inflow hose | 64 3/16” (1630 mm) |
Length of outflow hose | 90 9/16” (2300 mm) |
LOGISTIC INFORMATION | |
Packaging dimensions | 35 1/16” × 25 3/16” × 26 3/4” (890 × 640 × 680 mm) |
Total weight of packaged product | 110 lbs |
code | 728610 |
EAN code | 3838782061646 |
