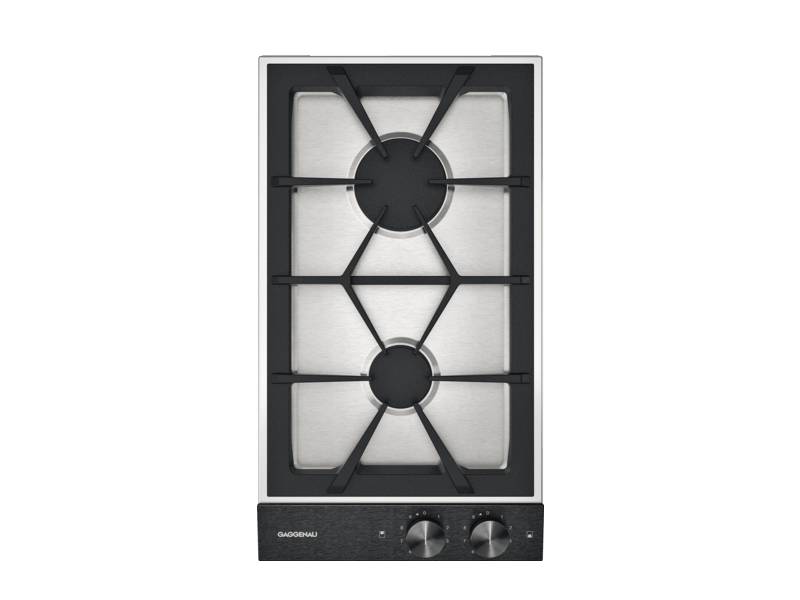

12" Gaggenau Vario 200 Series Gas Cooktop Natural Gas - VG232220CA

• Can be combined with cooktops of the Vario 200 series to a harmonic unity
• Control panel for comfortable and secure operation
• Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size
• Electric ignition of all burners. Simply press the knob, turn it and hold it there until a stable flame burns

Additional information

Cooking zones

• 1 high output burner 1,900 BTU - 10,200 BTU (560 W - 3000 W), suitable for pots up to max. ø 8 5/8".
• 1 standard burner (380 W - 1900 W), suitable for pots up to max. ø 7 7/8".

Operation

• Control knobs with illuminated ring.
• Integrated control panel.
• One-handed operation.
• Electric ignition.

Features

• Cast iron pan support with flat, continuous pot surface.
• Enamelled burner cover.

Safety

• Thermoelectric safety pilot.
• Residual heat indicator.
• Operation indicator.

Planning notes

• Special nozzles can be ordered as spare parts.
• Appliance can be snapped into the countertop from above.
• Above countertop minimum clearance of at least 11 13/16" from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation must be installed.
• Minimum distance between gas cooktop(s) with more than 37,533 BTU (11kW) and ventilation hood must be 30" (76cm).

 Rating

• Total rating: 58,000 BTU (4.9 KW).
• Total Amps: 1 A. 120 V / 60 Hz
• Connecting cable 59" with ground plug.
